McCormick-Deering Super BWD-6

The McCormick-Deering Super BWD-6 is a tractor produced by Mccormick Deering. It is equipped with a 264 ci 4.3 L engine. The rated power output is 50.5 hp 37.7 kW. Transmission: 5 forward and 1 reverse.

Overview

	1954 - 1958 Standard-tread tractor
1954 - 1958
Standard-tread tractor

Production
Manufacturer	McCormick-Deering (a part of International Harvester)
Standard-tread tractor
Built in Doncaster, England
Total built	5,531

Variants
Super BW-6	gasoline engine

McCormick-Deering Super BWD-6 Engine
International Harvester 4.3L 4-cyl diesel
Fuel tank	17.4 gal 65.9 L
Engine details ...

McCormick-Deering Super BWD-6 Transmission
5-speed gear
Transmission details ...

McCormick-Deering Super BWD-6 Power
Engine	50.5 hp 37.7 kW

Mechanical
Two-wheel drive
Steering	mechanical
Open operator station.

Power Take-off (PTO)
Rear PTO Type	540

Dimensions & Tires
Wheelbase	78 inches 198 cm
Front tire	6x16
Rear tire	13x30
Full dimensions and tires ...

Belt Pulley
Diameter	11 inches 27 cm
Width	7.5 inches 19 cm
RPM	899
Speed	2588 ft/min 788.82 meters/min

References
McCormick Super BWD-6 Diesel Tractor published by ENG-17-59-30M-24/3-Mc

Engine

Engine Detail — 264 ci / 4.3 L Diesel

Manufacturer	International Harvester BD-264
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	264 ci 4.3 L
Bore/Stroke	4.00x5.25 inches 102 x 133 mm
Power	50.5 hp 37.7 kW
Rated RPM	1450
Starter type	electric
Oil capacity	8 qts 7.6 L
Coolant capacity	22 qts 20.8 L

McCormick-Deering Super BWD-6 Engine

Transmission

Transmission — 5 forward and 1 reverse gear

Type	gear
Gears	5 forward and 1 reverse
Clutch	dry disc
Oil capacity	44 qts 41.6 L

Dimensions

McCormick-Deering Super BWD-6 Tires
Ag front	6x16
Ag rear	13x30

Dimensions
Wheelbase	78 inches 198 cm
Length	125 inches 317 cm
Width	69.5 inches 176 cm
Height	66 inches 167 cm

Photos

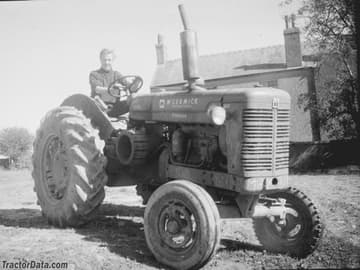

McCormick International Super BWD-6.

Super BWD-6 after a roll-over.

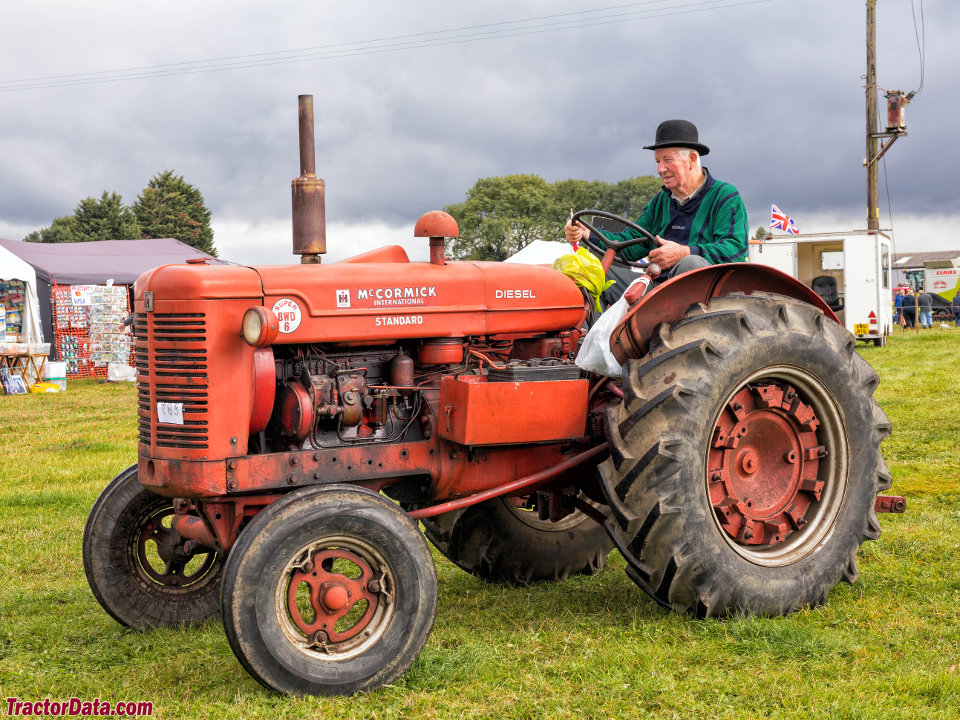

McCormick International Super BWD-6.
