mccormick deering w 6

OverviewEngineTransmissionDimensionsTestsPhotos
McCormick-Deering W-6 tractor photo
1940 - 1953 Standard-tread tractor
1940 - 1953
Standard-tread tractor
1940 - 1953
Standard-tread tractor
1940 - 1953
Standard-tread tractor
Tractor Tests
NTTL 354: distillate 5-speed 2WD
NTTL 355: gasoline 5-speed 2WD
Nebraska Tractor Test 354

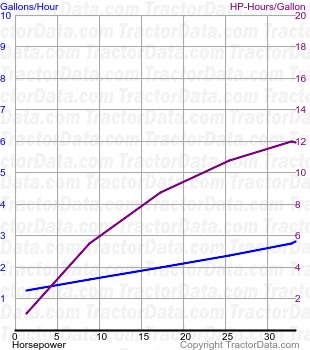

W-6 fuel use from test 354
W-6 fuel use from test 354
W-6 fuel use from test 354
W-6 fuel use from test 354
Nebraska Tractor Test 354
Distillate 5-speed 2WD September 16 - 23, 1940 Link: Nebraska Tractor Test 354 file
Belt power (max)
34.23 hp 25.5 kW
Belt fuel use (max)
2.8 gal/hour 10.6 l/hour
Drawbar performance
Max power
31.40 hp 23.4 kW
Gear 3 used for power test.
Max pull
4,755 lbs 2156 kg
Gear 1 used for pull test.
Nebraska Tractor Test 355

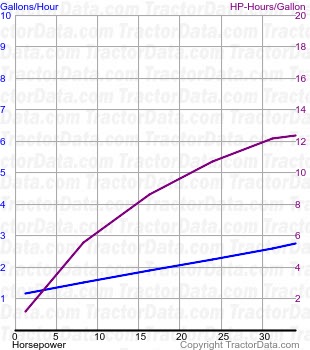

W-6 fuel use from test 355
W-6 fuel use from test 355
W-6 fuel use from test 355
W-6 fuel use from test 355
Nebraska Tractor Test 355
Gasoline 5-speed 2WD September 16 - 27, 1940 Link: Nebraska Tractor Test 355 file
Belt power (max)
36.97 hp 27.6 kW
Belt fuel use (max)
3.0 gal/hour 11.4 l/hour
Drawbar performance
Max power
32.48 hp 24.2 kW
Gear 2 used for power test.
Max pull
4,777 lbs 2166 kg
Gear 1 used for pull test.
