McCormick Intl CX95

The McCormick Intl CX95 is a tractor produced by Mccormick Intl. It is equipped with a 268.5 ci 4.4 L engine. The listed engine power is Diesel (net): 90 hp / 67.1 kW; Diesel (listed): 90 hp / 67.1 kW. Transmission: Xtrashift. Operating weight: 8312 to 8467 pounds.

Overview

	2003 - 2007 CX SeriesUtility tractor CX Series Utility tractor

Production
Manufacturer	McCormick Intl
Utility tractor
Built in Doncaster, England

McCormick Intl CX95 Power
Engine (net)	90 hp 67.1 kW
Engine	90 hp 67.1 kW
PTO (claimed)	74 hp 55.2 kW

Mechanical
Two- or four-wheel drive
Steering	hydrostatic power
Hydraulic wet disc brakes
ROPS. Cab optional.

Capacity
Fuel	41 gal 155.2 L
Hydraulic system	9.1 gal (2WD) 34.4 L
	9.7 gal (4WD) 36.7 L

Hydraulics
Type	open center
Capacity	9.1 gal (2WD) 34.4 L
	9.7 gal (4WD) 36.7 L
Pump flow	15.85 gpm 60.0 lpm

Tractor hitch
Rear lift	8,543 lbs 3875 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
Engine RPM	540@2000
	1000@2000

Dimensions & Tires
Wheelbase	92.9 inches 235 cm
Weight	8312 to 8467 pounds
Front tire	10.00-16
Rear tire	16.9R34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	65
Battery volts	12

References
CX Series published in 2006, by McCormick

Engine

Engine options
Perkins 4.0L 4-cyl diesel
Perkins 4.4L 4-cyl diesel

Engine Detail — 243.5 ci / 4.0 L Diesel

Manufacturer	Perkins
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
The Tier I engine was used from the start of the CX 05 series in 2003 until spring of 2004.
Displacement	243.5 ci 4.0 L
Bore/Stroke	3.937x5.00 inches 100 x 127 mm
Emissions	Tier I
Rated Power (net)	90 hp 67.1 kW
Rated RPM	2200
Torque	261.8 lb-ft 355.0 Nm
Starter volts	12

Engine Detail — 268.5 ci / 4.4 L Diesel

Manufacturer	Perkins 1104
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled inline
The Tier II Perkins 1104 was introduced in 2004 with the same horsepower rating as the original engine.
Displacement	268.5 ci 4.4 L
Bore/Stroke	4.134x5.00 inches 105 x 127 mm
Emissions	Tier II
Power	90 hp 67.1 kW
Rated RPM	2200
Starter volts	12

Transmission

Transmission options
24-speed partial power shift
8-speed synchro shuttle
16-speed partial power shift

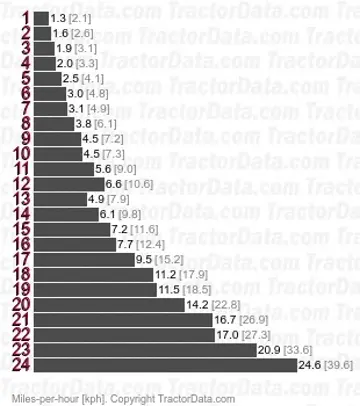

Transmission — Xtrashift

Transmission	Xtrashift
Type	partial power shift
Gears	24 forward and reverse
Clutch	wet disc
Eight gears with a three-range power shift for each gear. Optional creeper provides 36 gears forward and reverse.

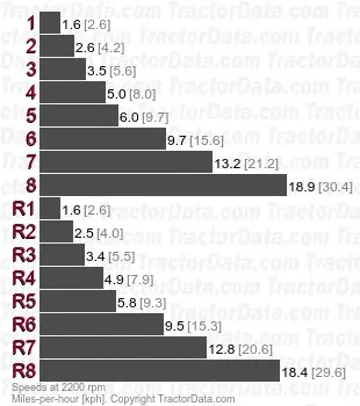

Transmission — 8 forward and reverse synchro shuttle

Type	synchro shuttle
Gears	8 forward and reverse
Clutch	dry disc
With 18.4-34 rear tires.

Transmission — 16 forward and 8 reverse partial power shift

Type	partial power shift
Gears	16 forward and 8 reverse
Clutch	dry disc
Four gears in two ranges with two-speed power shift.

Dimensions

McCormick Intl CX95 Tires
Ag front	10.00-16
	12.4R24 (4WD)
Ag rear	16.9R34

Dimensions
Wheelbase	92.9 inches 235 cm
Length	165.8 inches 421 cm
Height	107.9 inches 274 cm
2WD Weight	8312 lbs 3770 kg
4WD Weight	8467 lbs 3840 kg

Photos

McCormick Intl CX95 tractor photo
