McCormick Intl CX75

The McCormick Intl CX75 is a tractor produced by Mccormick Intl. It is equipped with a 268.5 ci 4.4 L engine. The listed engine power is Diesel (net): 73 hp / 54.4 kW; Diesel (listed): 73 hp / 54.4 kW. Transmission: Xtrashift. Operating weight: 8312 lbs 3770 kg.

Overview

	2003 - 2007 CX SeriesUtility tractor CX Series Utility tractor

Production
Manufacturer	McCormick Intl
Utility tractor
Built in Doncaster, England

McCormick Intl CX75 Power
Engine (net)	73 hp 54.4 kW
Engine	73 hp 54.4 kW
PTO (claimed)	60 hp 44.7 kW
Drawbar (tested)	50.2 hp 37.4 kW
PTO (tested)	59.7 hp 44.5 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Steering	hydrostatic power
Hydraulic wet disc brakes
ROPS. Cab optional.

Capacity
Fuel	41 gal 155.2 L
Hydraulic system	9.1 gal (2WD) 34.4 L
	9.7 gal (4WD) 36.7 L

Hydraulics
Type	open center
Capacity	9.1 gal (2WD) 34.4 L
	9.7 gal (4WD) 36.7 L
Pump flow	15.85 gpm 60.0 lpm

Tractor hitch
Rear lift	4,498 lbs 2040 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
Engine RPM	540@2000
	1000@2000

Dimensions & Tires
Wheelbase	92.9 inches 235 cm
Weight	8312 lbs 3770 kg
Front tire	7.50-16
Rear tire	16.9R34
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	65
Battery volts	12

References
CX Series published in 2006, by McCormick

Engine

Engine options
Perkins 4.2L 4-cyl diesel
Perkins 4.4L 4-cyl diesel

Engine Detail — 256.3 ci / 4.2 L Diesel

Manufacturer	Perkins 1004.4
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
The Tier I engine was used from the start of the CX 05 series in 2003 until spring of 2004.
Displacement	256.3 ci 4.2 L
Bore/Stroke	4.0551x5.00 inches 103 x 127 mm
Emissions	Tier I
Rated Power (net)	73 hp 54.4 kW
Air cleaner	dual paper elements
Compression	18.5:1
Rated RPM	2200
Torque	199.9 lb-ft 271.1 Nm
Starter volts	12

Engine Detail — 268.5 ci / 4.4 L Diesel

Manufacturer	Perkins 1104
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled inline
The Tier II Perkins 1104 was introduced in 2004 with the same horsepower rating as the original engine.
Displacement	268.5 ci 4.4 L
Bore/Stroke	4.134x5.00 inches 105 x 127 mm
Emissions	Tier II
Power	73 hp 54.4 kW
Rated RPM	2200
Starter volts	12

Transmission

Transmission options
24-speed partial power shift
8-speed synchro shuttle
16-speed partial power shift

Transmission — Xtrashift

Transmission	Xtrashift
Type	partial power shift
Gears	24 forward and reverse
Clutch	wet disc
Eight gears with a three-range power shift for each gear. Optional creeper provides 36 gears forward and reverse.

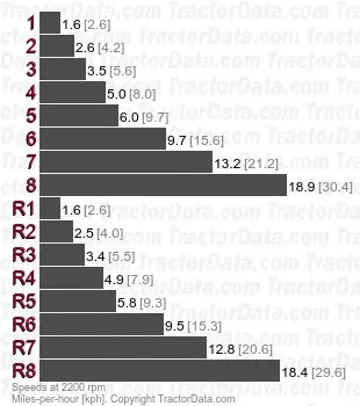

Transmission — 8 forward and reverse synchro shuttle

Type	synchro shuttle
Gears	8 forward and reverse
Clutch	dry disc
With 18.4-34 rear tires.

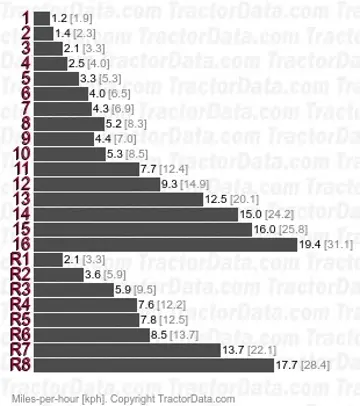

Transmission — 16 forward and 8 reverse partial power shift

Type	partial power shift
Gears	16 forward and 8 reverse
Clutch	dry disc
Four gears in two ranges with two-speed power shift. Optional creeper provides 24-forward and 12-reverse.
With 16.9R34 rear tires.

Dimensions

McCormick Intl CX75 Tires
Ag front	7.50-16
	11.2R24 (4WD)
Ag rear	16.9R34

Dimensions
Wheelbase	92.9 inches 235 cm
Length	165.75 inches 421 cm
Height	100.00 inches 254 cm
Weight	8312 lbs 3770 kg

Tests

OCED Tractor Test 1895
4.2L diesel 16-speed 4WD October 1998 - November 1998, Link: OCED Tractor Test 1895 file
PTO performance
Power at rated engine speed	59.7 hp 44.5 kW
Fuel use	3.9 gal/hour 14.8 l/hour
Power at rated PTO speed	62.1 hp 46.3 kW
Fuel use	3.9 gal/hour 14.8 l/hour
Drawbar performance
Max power	50.2 hp 37.4 kW
Fuel use	4.0 gal/hour 15.1 l/hour
Gear 3L-DD used for power test.
Max pull	9,485 lbs 4302 kg
Gear 1L-TA used for pull test.
