McCormick Intl MC80

The McCormick Intl MC80 is a tractor produced by Mccormick Intl. It is equipped with a 244 ci 4.0 L engine. The listed engine power is Diesel (listed): 84 hp / 62.6 kW. Transmission: 32 forward and 24 reverse. Operating weight: 9921 to 11350 pounds.

Engine Power

Diesel (listed): 84 hp / 62.6 kW

Fuel & Capacities

51.8 gal 196.1 L

Transmission

32 forward and 24 reverse

Operating Weight

9921 to 11350 pounds

Overview

	2000 - 2003 MC SeriesUtility tractor MC Series Utility tractor

Production
Manufacturer	McCormick Intl (a part of Argo)
Utility tractor
Built in Doncaster, England

McCormick Intl MC80 Engine
Perkins 4.0L 4-cyl diesel
Fuel tank	51.8 gal 196.1 L
Engine details ...

McCormick Intl MC80 Power
Engine	84 hp 62.6 kW

Mechanical
Four-wheel drive
Differential lock	wet disc
Power steering
Two-post folding ROPS. Cab available with air-conditioning.

Hydraulics
Type	axial piston pump
Pump flow	28.8 gpm 109.0 lpm
SCV flow	25.1 gpm 95.0 lpm

Tractor hitch
Rear Type	II
Control	electronic lower lift
Rear lift (at 24"/610mm)	8201 lbs 3719 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@1877
	1000@2200

Dimensions & Tires
Wheelbase	94.5 inches 240 cm
Weight	9921 to 11350 pounds
Front tire	12.4R24
Rear tire	16.9R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	95
Battery volts	12

References

MC Series published in 2001, by McCormick

Engine

Engine Detail — 244 ci / 4.0 L Diesel

Manufacturer	Perkins
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	244 ci 4.0 L
Bore/Stroke	3.937x5.00 inches 100 x 127 mm
Power	84 hp 62.6 kW
Rated RPM	2200
Operating RPM	2000-2200
Torque	252 lb-ft 341.7 Nm
Torque RPM	1400
Starter volts	12
Oil change	250 h

McCormick Intl MC80 Engine

Transmission

Transmission options
16-speed partial power shift
32-speed partial power shift with creeper

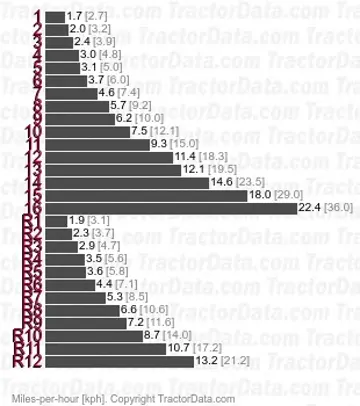

Transmission — 16 forward and 12 reverse partial power shift

Type	partial power shift
Gears	16 forward and 12 reverse
Four power shift gears in three ranges with power shuttle.
With 16.9R38 rear tires and 40 kph transmission option.

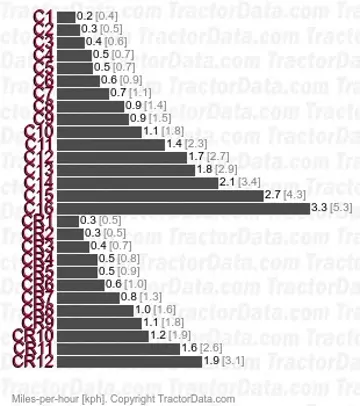

Transmission
Type	partial power shift with creeper
Gears	32 forward and 24 reverse
With 16.9R38 rear tires and 40 kph transmission option. Creeper range speeds shown.

Dimensions

McCormick Intl MC80 Tires
Ag front	12.4R24
Ag rear	16.9R38

Dimensions
Wheelbase	94.5 inches 240 cm
Length	174.5 inches 443 cm
Width	84.6 inches 214 cm
Height (cab)	107.9 inches 274 cm
Ground clearance	11.6 inches 29 cm

McCormick Intl MC80 Weight
	11350 lbs 5148 kg
Shipping	9921 lbs 4500 kg
Max front axle	6393 lbs 2899 kg
Max rear axle	13780 lbs 6250 kg

Photos

McCormick Intl MC80 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Mccormick Intl MC80 based on its 84 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Mccormick Intl MC80.

Estimated Continuous Field Runtime: 11.9 hrs

Approximately 11.9 hours of continuous field operation at ~75% rated power on a full tank (51.8 gal / 196.1 L).

Estimated 75% Load Fuel Burn~4.4 gal/hr (16.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
