McCormick Intl MC90

The McCormick Intl MC90 is a tractor produced by Mccormick Intl. It is equipped with a 244 ci 4.0 L engine. The rated power output is 90 hp 67.1 kW. Transmission: 32 forward and 24 reverse. Operating weight: 10470 to 11900 pounds.

Overview

	2000 - 2003 MC SeriesUtility tractor
2000 - 2003
MC Series
Utility tractor

Production
Manufacturer	McCormick Intl (a part of Argo)
Utility tractor
Built in Doncaster, England

McCormick Intl MC90 Engine
Perkins 4.0L 4-cyl diesel
Fuel tank	51.8 gal 196.1 L
Engine details ...

McCormick Intl MC90 Power
Engine	90 hp 67.1 kW

Mechanical
Four-wheel drive
Differential lock	wet disc
Power steering
Two-post folding ROPS. Cab available with air-conditioning.

Hydraulics
Type	axial piston pump
Pump flow	28.8 gpm 109.0 lpm
SCV flow	25.1 gpm 95.0 lpm

Tractor hitch
Rear Type	IIIN
Control	electronic lower lift
Rear lift (at 24"/610mm)	8201 lbs 3719 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	540/1000 (1.375)
Engine RPM	540@1877
	1000@2200

Dimensions & Tires
Wheelbase	95.4 inches 242 cm
Weight	10470 to 11900 pounds
Front tire	13.6R28
Rear tire	16.9R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	95
Battery volts	12

References
MC Series published in 2000, by McCormick
MC Series published in 2001, by McCormick

Engine

Engine Detail — 244 ci / 4.0 L Diesel

Manufacturer	Perkins
Configuration	wastegate turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	244 ci 4.0 L
Bore/Stroke	3.937x5.00 inches 100 x 127 mm
Power	90 hp 67.1 kW
Rated RPM	2200
Operating RPM	2000-2200
Torque	267.7 lb-ft 363.0 Nm
Torque RPM	1400
Starter volts	12
Oil change	250 h

McCormick Intl MC90 Engine

Transmission

Transmission options
16-speed partial power shift
32-speed partial power shift with creeper

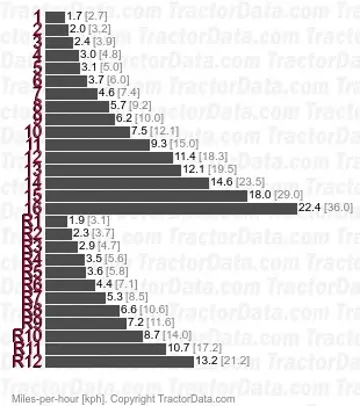

Transmission — 16 forward and 12 reverse partial power shift

Type	partial power shift
Gears	16 forward and 12 reverse
Four power shift gears in three ranges with power shuttle.
With 16.9R38 rear tires and 40 kph transmission option.

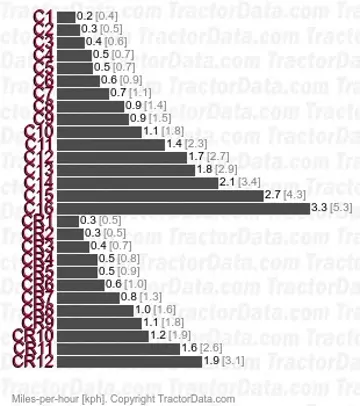

Transmission
Type	partial power shift with creeper
Gears	32 forward and 24 reverse
With 16.9R38 rear tires and 40 kph transmission option. Creeper range speeds shown.

Dimensions

McCormick Intl MC90 Tires
Ag front	13.6R28
Ag rear	16.9R38

Dimensions
Wheelbase	95.4 inches 242 cm
Length	174.5 inches 443 cm
Width	84.6 inches 214 cm
Height (cab)	109.8 inches 278 cm
Ground clearance	13.9 inches 35 cm

McCormick Intl MC90 Weight
	11900 lbs 5397 kg
Shipping	10470 lbs 4749 kg
Max front axle	7275 lbs 3299 kg
Max rear axle	13780 lbs 6250 kg

Photos

McCormick Intl MC90 tractor photo
