Memo M751
The Memo M751 is a tractor produced by Memo. It is equipped with a 230 ci 3.8 L engine. The rated power output is 73 hp 54.4 kW. Transmission: TW56.10. Drive type: 4x2 2WD. Operating weight: 11020 lbs 4998 kg.
Engine Power
73 hp
54.4 kW
Drive & Traction
4x2 2WD
Fuel & Capacities
Diesel
Transmission
TW56.10
Operating Weight
11020 lbs
4998 kg
Memo M751 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1987 - 1988
M75 SeriesUtility tractor |
|---|---|
1987 - 1988 | |
M75 Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | Memo |
Utility tractor | |
Built in Yugoslavia | |
Variants | |
|---|---|
M751 | 2WD |
M751A | 4WD |
Memo M751 Engine | |
|---|---|
Torpedo-Deutz 3.8L 4-cyl diesel | |
Engine details ...  |
Memo M751 Transmission | |
|---|---|
12-speed gear | |
Transmission details ...  |
Memo M751 Power | |
|---|---|
Engine | 73 hp
54.4 kW |
Mechanical | |
|---|---|
Drive | 4x2 2WD |
4x4 4WD | |
Differential lock | mechanical rear |
Power steering | |
Mechanical drum brakes | |
Trailer brakes | pneumatic |
Four-post ROPS. | |
Hydraulics | |
|---|---|
Type | open center |
Pressure | 2500 psi
172.4 bar |
Pump flow | 11.5 gpm
43.5 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | position and draft control |
Rear lift | 7500 lbs
3402 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 (1.375) |
Engine RPM | 540@2025 |
1000@2166 | |
Dimensions & Tires | |
|---|---|
Wheelbase | 94.9 inches
241 cm |
Front tire | 7.5x16 |
2WD Rear tire | 18.4x30 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Charging system | alternator |
Charging amps | 28 |
Battery volts | 12 |
References | |
|---|---|
 | |
Specifications Model M75 published by Memo |
Engine
Engine Detail — 230 ci / 3.8 L Diesel
Manufacturer | Torpedo-Deutz F4L912 |
Fuel Type | Diesel |
Configuration | 4-cylinder, air-cooled |
Displacement | 230 ci
3.8 L |
Bore/Stroke | 3.94x4.72 inches
100 x 120 mm |
Power | 73 hp
54.4 kW |
Rated RPM | 2300 |
Torque | 162.2 lb-ft
219.9 Nm |
Torque RPM | 1500 |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — TW56.10
Transmission | TW56.10 |
Type | gear |
Gears | 12 forward and 4 reverse |
Dimensions
Memo M751 Tires | |
|---|---|
2WD Standard tires (ag) | Front: 7.5x16. Rear: 18.4x30 |
4WD Standard tires (ag) | Front: 11.2x24. Rear: 18.4x30 |
Dimensions | |
|---|---|
Wheelbase | 94.9 inches
241 cm |
Length | 157.8 inches
400 cm |
Width | 81.7 inches
207 cm |
Height (steering wheel) | 72 inches
182 cm |
Ballasted weight | 11020 lbs
4998 kg |
Clearance (front axle) | 22.4 inches
56 cm |
Clearance (rear axle) | 24.8 inches
62 cm |
Front tread | 56.1 to 79.8 inches
142 to 202 cm |
Rear tread | 59.6/63.5/68.1/72/79.4 inches
151/161/172/182/201 cm |
Photos

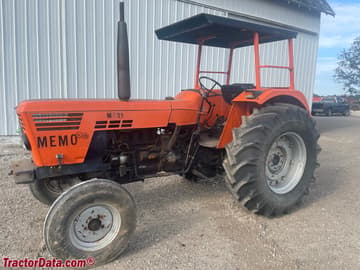

Memo M751
Memo M751 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Memo M751.
Converted Equivalents:
Horsepower (HP)73 hp
Kilowatts (kW)54.4 kW
Metric Horsepower (PS / CV)74 PS
