Massey Ferguson 2430

The Massey Ferguson 2430 is a tractor produced by Massey Ferguson. It is equipped with a 201 ci 3.3 L engine. The listed engine power is Diesel (listed): 65.7 hp / 49.0 kW. Transmission: Speedshift. Operating weight: 6724 lbs 3050 kg.

Engine Power

Diesel (listed): 65.7 hp / 49.0 kW

Fuel & Capacities

23.8 gal 90.1 L

Transmission

Speedshift

Operating Weight

6724 lbs 3050 kg

Overview

	2005 - 2007 2400 SeriesUtility tractor 2400 Series Utility tractor

Production
Manufacturer	Massey Ferguson (a part of AGCO)
Utility tractor

Variants
2430ST	standard
2430GE	low-profile

Massey Ferguson 2430 Engine
Perkins 3.3L 4-cyl diesel
Fuel tank	23.8 gal 90.1 L
Engine details ...

Massey Ferguson 2430 Power
Engine	65.7 hp 49.0 kW

Mechanical
Four-wheel drive

Tractor hitch
Rear Type	II
Control	position and draft control
Rear lift	4630 lbs 2100 kg
	7496 lbsOptOptional 3400 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/540E
	540/1000 OptOptional

Dimensions & Tires
Wheelbase	85 inches 215 cm
Weight	6724 lbs 3050 kg
Front tire	12.4R20
Rear tire	14.9R30
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References

MF 2400 published in 2005, by Massey Ferguson

Engine

Engine Detail — 201 ci / 3.3 L Diesel

Manufacturer	Perkins 800
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	201 ci 3.3 L
Bore/Stroke	3.70x4.72 inches 94 x 120 mm
Emissions	Tier II
Power	65.7 hp 49.0 kW
Fuel system	direct injection
Rated RPM	2500
Torque	155 lb-ft 210.2 Nm
Torque RPM	1600
Starter	electric
Starter volts	12

Transmission

Transmission options
15-speed
15-speed power shuttle
30-speed two-speed power shift

Transmission — 15 forward and reverse

Gears	15 forward and reverse
Clutch	dry disc
Five gears in three ranges with mechanical shuttle.
With 16.9R34 rear tires.

Transmission — 15 forward and reverse power shuttle

Type	power shuttle
Gears	15 forward and reverse
Clutch	wet disc

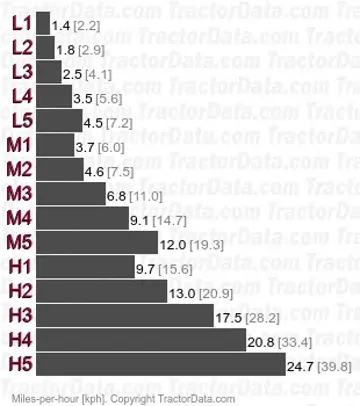

Transmission — Speedshift

Transmission	Speedshift
Type	two-speed power shift
Gears	30 forward and reverse
Speedshift adds a two-speed power shift to the basic shuttle transmission. Optional creeper range expands total gears to 60 in each direction.

Dimensions

Massey Ferguson 2430 Tires
Standard tires (ag)	Front: 12.4R20. Rear: 14.9R30

Dimensions
Wheelbase	85 inches 215 cm
Length	158.3 inches 402 cm
Width	74 inches 187 cm
Height (cab)	94.5 inches 240 cm
Weight	6724 lbs 3050 kg
Ground clearance	16.3 inches 41 cm

Photos

Massey Ferguson 2430 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for Massey Ferguson 2430 based on its 65.7 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	7 to 8 ft Tandem Disc2.1 - 2.4 m 对开双排耙	Medium Duty	Field leveling and clod breaking behind plows.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Massey Ferguson 2430.

Estimated Continuous Field Runtime: 7 hrs

Approximately 7 hours of continuous field operation at ~75% rated power on a full tank (23.8 gal / 90.1 L).

Estimated 75% Load Fuel Burn~3.4 gal/hr (12.9 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
