Mercedes-Benz Trac 1000

The Mercedes-Benz Trac 1000 is a tractor produced by Mercedes Benz. It is equipped with a 363.56 ci 6.0 L engine. The listed engine power is Diesel (listed): 95 hp / 70.8 kW; Diesel (listed): 100 hp / 74.6 kW. Transmission: 16 forward and 8 reverse. Drive type: 4x4 4WD. Operating weight: 9922 lbs 4500 kg.

Overview

	1982 - 1991 Four-wheel Drive (4WD) tractor

Production
Manufacturer	Mercedes-Benz
Four-wheel Drive (4WD) tractor

Mercedes-Benz Trac 1000 Transmission
16-speed
Transmission details ...

Mercedes-Benz Trac 1000 Power
Engine	100 hp 74.6 kW

Mechanical
Drive	4x4 4WD
Steering	hydrostatic power

Hydraulics
Pump flow	10.6 gpm 40.1 lpm

Tractor hitch
Rear lift	10363 lbs 4700 kg

Power Take-off (PTO)
Rear PTO Type	540, 1000

Dimensions & Tires
Wheelbase	102.36 inches 259 cm
Weight	9922 lbs 4500 kg
Front tire	16.9R26
Rear tire	16.9R26
Full dimensions and tires ...

Engine

Engine options
Mercedes-Benz 5.7L 6-cyl diesel
Mercedes-Benz 6.0L 6-cyl diesel

Engine Detail — 346.29 ci / 5.7 L Diesel

Manufacturer	Mercedes-Benz OM366
Configuration	6-cylinder, liquid-cooled
nautral diesel
Displacement	346.29 ci 5.7 L
Bore/Stroke	3.8189x5.0394 inches 97 x 128 mm
Power	95 hp 70.8 kW
Rated RPM	2600

Engine Detail — 363.56 ci / 6.0 L Diesel

Manufacturer	Mercedes-Benz OM352
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	363.56 ci 6.0 L
Bore/Stroke	3.8386x5.2362 inches 98 x 133 mm
Power	100 hp 74.6 kW
Rated RPM	2400
Torque	258.2 lb-ft 350.1 Nm
Torque RPM	1500

Transmission

Transmission — 16 forward and 8 reverse

Gears

16 forward and 8 reverse

Dimensions

Mercedes-Benz Trac 1000 Tires
Ag front	16.9R26
Ag rear	16.9R26

Dimensions
Wheelbase	102.36 inches 259 cm
Length	175.20 inches 445 cm
Height	112.99 inches 286 cm
Weight	9922 lbs 4500 kg

Photos

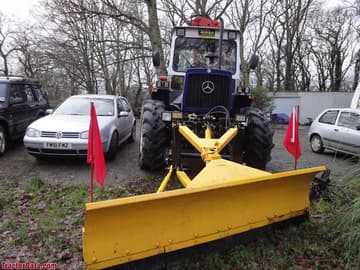

Mercedes-Benz Trac 1000

Mercedes-Benz Trac 1000
