Mercedes-Benz Trac 1100

The Mercedes-Benz Trac 1100 is a tractor produced by Mercedes Benz. It is equipped with a 346.3 ci 5.7 L engine. The listed engine power is Diesel (listed): 110 hp / 82.0 kW. Transmission: 22 forward and reverse. Drive type: 4x4 4WD. Operating weight: 12346 lbs 5600 kg.

Engine Power

Diesel (listed): 110 hp / 82.0 kW

Drive & Traction

4x4 4WD

Fuel & Capacities

44.9 gal 169.9 L

Transmission

22 forward and reverse

Operating Weight

12346 lbs 5600 kg

Overview

	1976 - 1991 Model year 1976-19871987-1991 Four-wheel Drive (4WD) tractor

Production
Manufacturer	Mercedes-Benz
Four-wheel Drive (4WD) tractor

Mercedes-Benz Trac 1100 Engine
Mercedes-Benz 5.7L 6-cyl diesel
Fuel tank	44.9 gal 169.9 L
Engine details ...

Mercedes-Benz Trac 1100 Power
Engine	110 hp 82.0 kW

Mechanical
Drive	4x4 4WD
Final drives	external planetary
Power steering
Hydraulic drum brakes
Trailer brakes	pneumatic OptOptional
Cab standard. Optional air-condtioning.

Hydraulics
Pressure	2901 psi 200.0 bar
Pump flow	11.9 gpm 45.0 lpm
	15.9 gpm ((Optional) 60.2 lpm

Tractor hitch
Rear Type	II
Rear lift	8992 lbs 4078 kg
	13490 lbsOptOptional 6119 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
Front PTO	independent OptOptional
Front PTO Type	540/1000

Dimensions & Tires
Wheelbase	104.3 inches 264 cm
Weight	12346 lbs 5600 kg
Front tire	14.9-30
Rear tire	14.9-30
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	35
Charging volts	14
Battery volts	12
Battery AH	110

References

MB Trac 1100 published by Mercedes-Benz

Engine

Engine Detail — 346.3 ci / 5.7 L Diesel

Manufacturer	Mercedes-Benz OM352
Configuration	6-cylinder, liquid-cooled
nautral diesel
Displacement	346.3 ci 5.7 L
Bore/Stroke	3.82x5.04 inches 97 x 128 mm
Power	110 hp 82.0 kW
Rated RPM	2600
Torque	276.6 lb-ft 375.1 Nm
Torque RPM	1500
Starter volts	12

Transmission

Transmission options
14-speed synchronized
22-speed creeper

Transmission — 14 forward and reverse synchronized

Type	synchronized
Gears	14 forward and reverse
Clutch	310mm dry disc
With 14.9-30 tires.

Transmission
Type	creeper
Gears	22 forward and reverse

Dimensions

Mercedes-Benz Trac 1100 Tires
Ag front	14.9-30
Ag rear	14.9-30
Ag front	16.9-30
	9.5-36
	18.4-30
Ag rear	16.9-30
	9.5-36
	18.4-30

Dimensions
Wheelbase	104.3 inches 264 cm
Length	183.5 inches 466 cm
Height (cab)	116 inches 294 cm
Ground clearance	21 inches 53 cm
Front tread	70.9 to 78.7 inches 180 to 199 cm
Rear tread	70.9 to 78.7 inches 180 to 199 cm

Mercedes-Benz Trac 1100 Weight
Shipping	12346 lbs 5600 kg
Max capacity	19842 lbs 9000 kg
Max front axle	10318 lbs 4680 kg
Max rear axle	10318 lbs 4680 kg

Photos

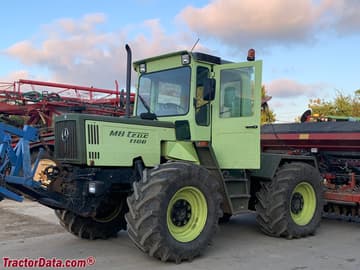

Mercedes-Benz MB Trac 1100, right side.

Mercedes-Benz MB Trac 1100 with spray rig.

Mercedes-Benz MB Trac 1100 performing field work.

Recommended Implements & Sizing Guide

Engineering recommendations for Mercedes Benz Mercedes-Benz Trac 1100 based on its 110 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Mercedes Benz Mercedes-Benz Trac 1100.

Estimated Continuous Field Runtime: 7.8 hrs

Approximately 7.8 hours of continuous field operation at ~75% rated power on a full tank (44.9 gal / 170 L).

Estimated 75% Load Fuel Burn~5.7 gal/hr (21.7 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Mercedes Benz Mercedes-Benz Trac 1100 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Mercedes Benz Mercedes-Benz Trac 1100.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)110 hp

Kilowatts (kW)82 kW

Metric Horsepower (PS / CV)111.5 PS
