Mercedes-Benz Trac 1300

The Mercedes-Benz Trac 1300 is a tractor produced by Mercedes Benz. It is equipped with a 346.3 ci 5.7 L engine. The listed engine power is Diesel (listed): 125 hp / 93.2 kW. Transmission: 22 forward and reverse. Drive type: 4x4 4WD. Operating weight: 12787 lbs 5800 kg.

Engine Power

Diesel (listed): 125 hp / 93.2 kW

Drive & Traction

4x4 4WD

Fuel & Capacities

44.9 gal 169.9 L

Transmission

22 forward and reverse

Operating Weight

12787 lbs 5800 kg

Overview

	1976 - 1991 Model year 1976-19871987-1991 Four-wheel Drive (4WD) tractor

Production
Manufacturer	Mercedes-Benz
Four-wheel Drive (4WD) tractor

Mercedes-Benz Trac 1300 Engine
Mercedes 5.7L 6-cyl diesel
Fuel tank	44.9 gal 169.9 L
Engine details ...

Mercedes-Benz Trac 1300 Power
Engine	125 hp 93.2 kW

Mechanical
Drive	4x4 4WD
Power steering
Hydraulic drum brakes
Cab standard. Air-conditioning optional.

Hydraulics
Pump flow	15.9 gpm 60.2 lpm

Tractor hitch
Rear Type	II/III
Rear lift	11023 lbs 5000 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000 *Option between 1.375 and 1.75 inch PTO shafts.

Dimensions & Tires
Wheelbase	104.3 inches 264 cm
Weight	12787 lbs 5800 kg
Front tire	18.4-30
Rear tire	18.4-30
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	35
Charging volts	14
Battery volts	12

Engine

Engine Detail — 346.3 ci / 5.7 L Diesel

Manufacturer	Mercedes OM 352A
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	346.3 ci 5.7 L
Bore/Stroke	3.82x5.04 inches 97 x 128 mm
Power	125 hp 93.2 kW
Rated RPM	2600
Torque	289.1 lb-ft 392.0 Nm
Torque RPM	1600
Starter volts	12

Transmission

Transmission options
14-speed synchronized
22-speed creeper

Transmission — 14 forward and reverse synchronized

Type	synchronized
Gears	14 forward and reverse
Clutch	310mm dry disc
Transmission
Type	creeper
Gears	22 forward and reverse

Dimensions

Mercedes-Benz Trac 1300 Tires
Ag front	18.4-30
Ag rear	18.4-30
Ag front	14.9-30
	9.5-36
	14.9-30
Ag rear	14.9-30
	9.5-36
	14.9-30

Dimensions
Wheelbase	104.3 inches 264 cm
Length	183.5 inches 466 cm
Height (cab)	114.2 inches 290 cm
Shipping weight	12787 lbs 5800 kg
Max weight	22046 lbs 10000 kg
Ground clearance	19.7 inches 50 cm
Front tread	70.9 to 78.7 inches 180 to 199 cm
Rear tread	70.9 to 78.7 inches 180 to 199 cm

Photos

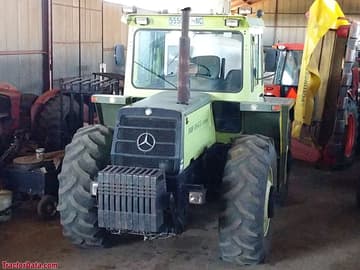

Mercedes-Benz Trac 1300

Recommended Implements & Sizing Guide

Engineering recommendations for Mercedes Benz Mercedes-Benz Trac 1300 based on its 125 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Mercedes Benz Mercedes-Benz Trac 1300.

Estimated Continuous Field Runtime: 6.9 hrs

Approximately 6.9 hours of continuous field operation at ~75% rated power on a full tank (44.9 gal / 170 L).

Estimated 75% Load Fuel Burn~6.5 gal/hr (24.6 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Mercedes Benz Mercedes-Benz Trac 1300 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Mercedes Benz Mercedes-Benz Trac 1300.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)125 hp

Kilowatts (kW)93.2 kW

Metric Horsepower (PS / CV)126.7 PS

Direct Competitor Comparison

Compare Mercedes-Benz Trac 1300 against same-era industry alternatives in the same horsepower class.
