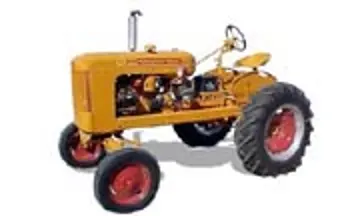

Minneapolis-Moline BG
The Minneapolis-Moline BG is a tractor produced by Minneapolis Moline. It is equipped with a 133 ci 2.2 L engine. Transmission: 4 forward and 1 reverse. Operating weight: 2880 lbs 1306 kg.
Fuel & Capacities
Gasoline
Transmission
4 forward and 1 reverse
Operating Weight
2880 lbs
1306 kg
Overview
 | 1953 - 1955
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Minneapolis-Moline |
Utility tractor | |
Total built | 1,200 |
The Minneapolis-Moline BG replaced the former Avery V in the line, although the BG's engine was significantly larger, making the tractor closer to the BF. The BG was narrower than the BF, as the BG was intended to be a single-row tractor. TractorData has been unable to find definitive production information for the BG. The end year for the BG varies by source, some claim 1955 while others state 1957. | |
Minneapolis-Moline BG Engine | |
|---|---|
Hercules 2.2L 4-cyl gasoline | |
Engine details ...  |
Minneapolis-Moline BG Transmission | |
|---|---|
4-speed gear | |
Transmission details ...  |
Minneapolis-Moline BG Power | |
|---|---|
Belt (claimed) | 27 hp
20.1 kW |
Plows | 2 |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Contracting band brakes | |
Open operator station. |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission OptOptional |
Dimensions & Tires | |
|---|---|
Wheelbase | 75 inches
190 cm |
Weight | 2880 lbs
1306 kg |
Front tire | 5x15 |
Rear tire | 11x24 |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 8.5 inches
21 cm |
Width | 6.5 inches
16 cm |
RPM | 1160 |
Speed | 2580 ft/min
786.38 meters/min |
References | |
|---|---|
 | |
Sales Manual published in 1952, by Minneapolis-Moline |
Engine
Engine Detail — 133 ci / 2.2 L Gasoline
Manufacturer | Hercules 1X3SL |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 133 ci
2.2 L |
Rated RPM | 1800 |
Transmission
Transmission — 4 forward and 1 reverse gear
Type | gear |
Gears | 4 forward and 1 reverse |
Dimensions
Minneapolis-Moline BG Tires | |
|---|---|
Ag front | 5x15 |
Ag rear | 11x24 |
Dimensions | |
|---|---|
Wheelbase | 75 inches
190 cm |
Length | 110 inches
279 cm |
Height | 76 inches
193 cm |
Shipping weight | 2880 lbs
1306 kg |
Ground clearance | 20.5 inches
52 cm |
Front tread | 41 to 48 inches
104 to 121 cm |
Rear tread | 40 to 68 inches
101 to 172 cm |
Photos

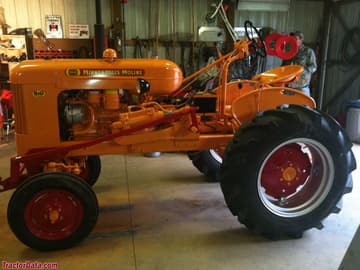

Minneapolis-Moline BG
Minneapolis Moline Minneapolis-Moline BG Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Minneapolis Moline Minneapolis-Moline BG.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
