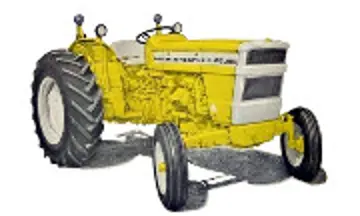

Minneapolis-Moline G450

The Minneapolis-Moline G450 is a tractor produced by Minneapolis Moline. It is equipped with a 210.9 ci 3.5 L engine. Transmission: 12 forward and 3 reverse. Operating weight: 4410 to 4940 pounds.

Overview

	1971 - 1975 Utility tractor

Series map: G350G45045.6hp*61.1hp**Estimated engine power for comparison only.

Note: the Minneapolis-Moline model G450 is the same as the Oliver 1365. The following data is from the 1365 listing.

Production
Manufacturer	Minneapolis-Moline
Utility tractor
Original price was $9,000 in 1975

Minneapolis-Moline G450 Engine
Fiat 3.5L 4-cyl diesel
Engine details ...

Minneapolis-Moline G450 Power
PTO (claimed)	55 hp 41.0 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Mechanical band brakes
Open operator station.

Capacity
Fuel	14.25 gal 53.9 L
Hydraulic system	4.5 gal 17.0 L

Hydraulics
Type	open center
Capacity	4.5 gal 17.0 L
Pressure	2133 psi 147.1 bar
Pump flow	5.76 gpm 21.8 lpm

Tractor hitch
Rear Type	II/I
Control	position and draft control
Rear lift	3100 lbs 1406 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
Engine RPM	540@1970

Dimensions & Tires
Wheelbase	80.8 inches 205 cm
Weight	4410 to 4940 pounds
Front tire	7.50-16
Rear tire	16.9-30
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	42
Battery volts	12

References
Models G350/G450 published in 1971, by Minneapolis-Moline

Engine

Series map: G350G45045.6hp*61.1hp**Estimated engine power for comparison only.

Note: the Minneapolis-Moline model G450 is the same as the Oliver 1365. The following data is from the 1365 listing.

Engine Detail — 210.9 ci / 3.5 L Diesel

Manufacturer	Fiat
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	210.9 ci 3.5 L
Bore/Stroke	3.94x4.33 inches 100 x 110 mm
Air cleaner	oil bath
Pre-heating	thermostart
Compression	17:1
Rated RPM	2400
Starter volts	12
Oil capacity	12 qts 11.4 L
Coolant capacity	14 qts 13.2 L

Transmission

Series map: G350G45045.6hp*61.1hp**Estimated engine power for comparison only.

Note: the Minneapolis-Moline model G450 is the same as the Oliver 1365. The following data is from the 1365 listing.

Transmission options
8-speed partially synchronized
12-speed creeper

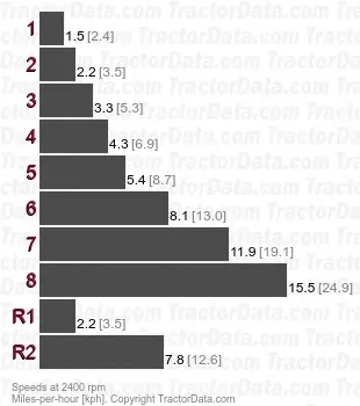

Transmission — 8 forward and 2 reverse partially synchronized

Type	partially synchronized
Gears	8 forward and 2 reverse
Oil capacity	19 qts 18.0 L
Synchronized shifts between gears 3-4 and 7-8.
With 16.9-30 rear tires.

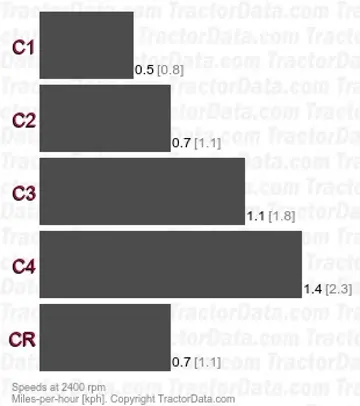

Transmission
Type	creeper
Gears	12 forward and 3 reverse

Dimensions

Series map: G350G45045.6hp*61.1hp**Estimated engine power for comparison only.

Note: the Minneapolis-Moline model G450 is the same as the Oliver 1365. The following data is from the 1365 listing.

Minneapolis-Moline G450 Tires
2WD Ag front	7.50-16
4WD Ag front	9.50x24
2WD Ag rear	16.9-30
4WD Ag rear	16.9-30
2WD Ag front	6.00x16
2WD Ag rear	14.9-28
2WD Ag rear	14.9-30

Dimensions
Wheelbase	80.8 inches 205 cm
Utility Length	122 inches 309 cm
Row-crop Length	125 inches 317 cm
4WD Length	127 inches 322 cm
Utility Width	70 inches 177 cm
Row-crop Width	72 inches 182 cm
4WD Width	72 inches 182 cm
Utility Clearance (front axle)	18.9 inches 48 cm
Row-crop Clearance (front axle)	25.75 inches 65 cm
4WD Clearance (front axle)	11 inches 27 cm
2WD Front tread	52 to 79.5 inches 132 to 201 cm
4WD Front tread	55/59 inches 139/149 cm
Rear tread	55.1 to 78.75 inches 139 to 200 cm

Minneapolis-Moline G450 Weight
Utility Shipping	4410 lbs 2000 kg
Row-crop Shipping	4550 lbs 2063 kg
4WD Shipping	4940 lbs 2240 kg

Minneapolis-Moline G450 Height
Utility Steering wheel	60.6 inches 153 cm
Row-crop Steering wheel	67.5 inches 171 cm
4WD Steering wheel	63.25 inches 160 cm

Attachments

Series map: G350G45045.6hp*61.1hp**Estimated engine power for comparison only.

Note: the Minneapolis-Moline model G450 is the same as the Oliver 1365. The following data is from the 1365 listing.

Attachment overview
Cockshutt 1522 loader
Cockshutt 1524 loader

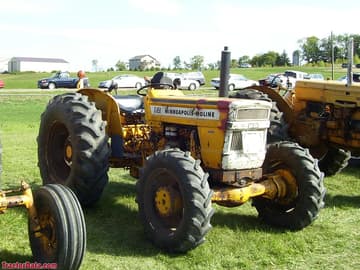

Photos
