Minneapolis-Moline G350

The Minneapolis-Moline G350 is a tractor produced by Minneapolis Moline. It is equipped with a 158.1 ci 2.6 L engine. Transmission: 9 forward and 3 reverse. Operating weight: 3710 to 4300 pounds.

Overview

	1971 - 1975 Utility tractor

Series map: G350G45045.6hp*61.1hp**Estimated engine power for comparison only.

Note: the Minneapolis-Moline model G350 is the same as the Oliver 1265. The following data is from the 1265 listing.

Production
Manufacturer	Minneapolis-Moline
Utility tractor
Original price was $6,900 in 1975

Minneapolis-Moline G350 Engine
Fiat 2.6L 3-cyl diesel
Engine details ...

Minneapolis-Moline G350 Power
PTO (claimed)	41 hp 30.6 kW

Mechanical
Two- or four-wheel drive
Final drives	planetary
Mechanical band brakes
Open operator station.

Capacity
Fuel	14.25 gal 53.9 L
Hydraulic system	4.5 gal 17.0 L

Hydraulics
Type	open center
Capacity	4.5 gal 17.0 L
Pressure	2133 psi 147.1 bar
Pump flow	5.76 gpm 21.8 lpm

Tractor hitch
Rear Type	II/I
Control	position and draft control
Rear lift	2660 lbs 1206 kg

Power Take-off (PTO)
Rear PTO	live *Dual-stage clutch
Rear PTO Type	540/ground
Engine RPM	540@1970

Dimensions & Tires
Wheelbase	75.5 inches 191 cm
Weight	3710 to 4300 pounds
Front tire	6.00-16
Rear tire	13.6-28
Full dimensions and tires ...

Electrical
Charging system	alternator
Charging amps	42
Battery volts	12

References
Models G350/G450 published in 1971, by Minneapolis-Moline

Engine

Series map: G350G45045.6hp*61.1hp**Estimated engine power for comparison only.

Note: the Minneapolis-Moline model G350 is the same as the Oliver 1265. The following data is from the 1265 listing.

Engine Detail — 158.1 ci / 2.6 L Diesel

Manufacturer	Fiat
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	158.1 ci 2.6 L
Bore/Stroke	3.94x4.33 inches 100 x 110 mm
Air cleaner	oil bath
Pre-heating	thermostart
Compression	17:1
Rated RPM	2400
Starter volts	12
Oil capacity	8 qts 7.6 L
Coolant capacity	13.5 qts 12.8 L

Transmission

Series map: G350G45045.6hp*61.1hp**Estimated engine power for comparison only.

Note: the Minneapolis-Moline model G350 is the same as the Oliver 1265. The following data is from the 1265 listing.

Transmission options
6-speed partially synchronized
9-speed creeper

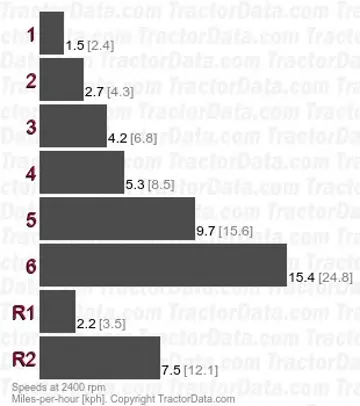

Transmission — 6 forward and 2 reverse partially synchronized

Type	partially synchronized
Gears	6 forward and 2 reverse
Clutch	254mm dry disc
Oil capacity	18 qts 17.0 L
Synchronized shifts between gears 2-3 and 5-6.
With 13.6-28 rear tires.

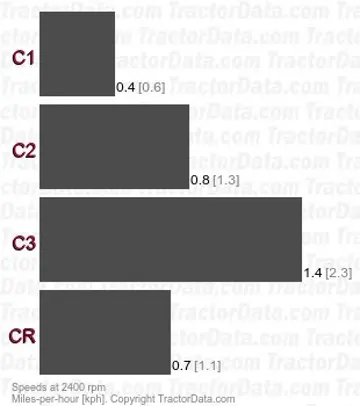

Transmission
Type	creeper
Gears	9 forward and 3 reverse

Dimensions

Series map: G350G45045.6hp*61.1hp**Estimated engine power for comparison only.

Note: the Minneapolis-Moline model G350 is the same as the Oliver 1265. The following data is from the 1265 listing.

Minneapolis-Moline G350 Tires
2WD Ag front	6.00-16
4WD Ag front	7.50x20
2WD Ag rear	13.6-28
4WD Ag rear	12.4-28
2WD Ag front	7.50-16
2WD Ag rear	12.4-28
2WD Ag rear	14.9-28

Dimensions
Wheelbase	75.5 inches 191 cm
2WD Length	115 inches 292 cm
4WD Length	119.5 inches 303 cm
Width	62.5 inches*Minimum width 158 cm
2WD Height (steering wheel)	56.6 inches 143 cm
2WD Shipping weight	3710 lbs 1682 kg
4WD Shipping weight	4300 lbs 1950 kg
2WD Clearance (front axle)	18.25 inches 46 cm
4WD Clearance (front axle)	14 inches 35 cm
2WD Front tread	50.4 to 78 inches 128 to 198 cm
4WD Front tread	55/59 inches 139/149 cm
Rear tread	47.25 to 74.75 inches 120 to 189 cm

Attachments

Series map: G350G45045.6hp*61.1hp**Estimated engine power for comparison only.

Note: the Minneapolis-Moline model G350 is the same as the Oliver 1265. The following data is from the 1265 listing.

Attachment overview
Cockshutt 1522 loader
Cockshutt 1524 loader

Photos

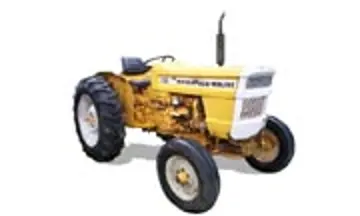

Minneapolis-Moline G350 tractor photo
