Minneapolis-Moline G850
The Minneapolis-Moline G850 is a tractor produced by Minneapolis Moline. It is equipped with a 283 ci 4.6 L engine. The listed engine power is 86.93 hp 64.8 kW. Transmission: Hydraul-Shift. Operating weight: 9,600 lbs 4354 kg.
Engine Power
86.93 hp
64.8 kW
Fuel & Capacities
35 gal
132.5 L
Transmission
Hydraul-Shift
Operating Weight
9,600 lbs
4354 kg
Overview
 | 1971 - 1972
Row-Crop tractor |
|---|
Series map: G750G85077.8hp*95.6hp**Estimated engine power for comparison only.
Note: the Minneapolis-Moline model G850 is the same as the Oliver 1755. The following data is from the 1755 listing. |
Production | |
|---|---|
Manufacturer | Minneapolis-Moline (a part of White) |
Row-Crop tractor | |
Original price was $11,500 in 1975 | |
Minneapolis-Moline G850 Power | |
|---|---|
PTO (claimed) | 86 hp
64.1 kW |
Drawbar (tested) | 73.87 hp
55.1 kW |
PTO (tested) | 86.93 hp
64.8 kW |
Performance test details ...  | |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Differential hydraulic dry disc brakes | |
Open operator station. Optional two-post ROPS and cab. |
Capacity | |
|---|---|
Fuel | 35 gal
132.5 L |
Hydraulic system | 6.75 gal
25.5 L |
Hydraulics | |
|---|---|
Type | closed center |
Capacity | 6.75 gal
25.5 L |
Pump flow | 20 gpm
75.7 lpm |
Tractor hitch | |
|---|---|
Rear Type | I/II |
II/III OptOptional | |
Rear lift | 4,000 lbs
1814 kg |
6,000 lbs (Cat 3)
2721 kg | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
1000 | |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 103 inches
261 cm |
4WD Wheelbase | 86.25 inches
219 cm |
Weight | 9,600 lbs
4354 kg |
Front tire | 7.50-15 |
Rear tire | 18.4-34 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Models G850/G940 published in 1971, by Minneapolis-Moline |
Engine
Series map: G750G85077.8hp*95.6hp**Estimated engine power for comparison only.
Note: the Minneapolis-Moline model G850 is the same as the Oliver 1755. The following data is from the 1755 listing. |
Engine options | |
|---|---|
Waukesha-Oliver 5.1L 6-cyl diesel | |
Waukesha-Oliver 4.6L 6-cyl gasoline |
Engine Detail — 310 ci / 5.1 L Diesel
Manufacturer | Waukesha-Oliver |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 310 ci
5.1 L |
Bore/Stroke | 3.875x4.375 inches
98 x 111 mm |
Air cleaner | dry |
Compression | 16:1 |
Rated RPM | 2400 |
Starter volts | 12 |
Oil capacity | 8 qts
7.6 L |
Coolant capacity | 20 qts
18.9 L |
Engine Detail — 283 ci / 4.6 L Gasoline
Manufacturer | Waukesha-Oliver |
Fuel Type | Gasoline |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 283 ci
4.6 L |
Bore/Stroke | 3.875x4.00 inches
98 x 102 mm |
Air cleaner | dry |
Compression | 8.5:1 |
Rated RPM | 2400 |
Starter volts | 12 |
Oil capacity | 8 qts
7.6 L |
Coolant capacity | 20 qts
18.9 L |
Transmission
Series map: G750G85077.8hp*95.6hp**Estimated engine power for comparison only.
Note: the Minneapolis-Moline model G850 is the same as the Oliver 1755. The following data is from the 1755 listing. |
Transmission options | |
|---|---|
6-speed gear | |
18-speed partial power shift |

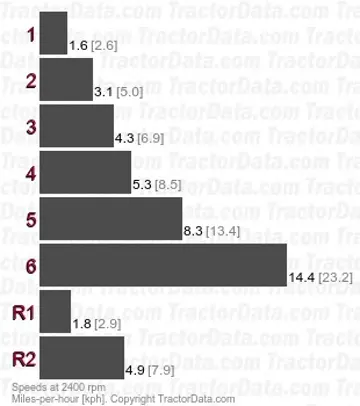

Transmission — 6 forward and 2 reverse gear
Type | gear |
Gears | 6 forward and 2 reverse |
Clutch | 305mm cerametallic disc |
With 18.4-34 rear tires. | |
 | |

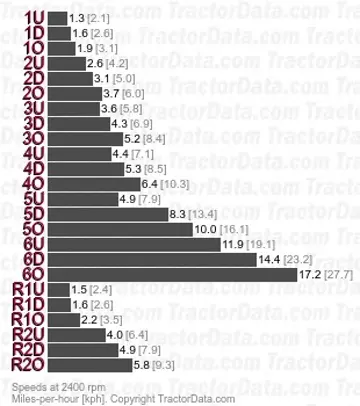

Transmission — Hydraul-Shift
Transmission | Hydraul-Shift |
Type | partial power shift |
Gears | 18 forward and 6 reverse |
Clutch | 305mm cerametallic disc |
The Hydraul-Shift overs a power shift between over-, under-, and direct-drive for each gear. | |
With 18.4-34 rear tires. | |
 | |
Dimensions
Series map: G750G85077.8hp*95.6hp**Estimated engine power for comparison only.
Note: the Minneapolis-Moline model G850 is the same as the Oliver 1755. The following data is from the 1755 listing. |
Minneapolis-Moline G850 Tires | |
|---|---|
2WD Ag front | 7.50-15 |
4WD Ag front | 13.6-24 |
Ag rear | 18.4-34 |
2WD Ag front | 7.50-18 |
2WD Ag front | 9.50L-15 |
2WD Ag front | 11.00L-15 |
4WD Ag front | 14.9-24 |
4WD Ag front | 14.9-26 |
Ag rear | 23.1-30 |
20.8-34 | |
18.4-38 | |
16.9-38 | |
16.9-34 | |
15.5-38 | |
12.4-42 | |
Dimensions | |
|---|---|
2WD Wheelbase | 103 inches
261 cm |
4WD Wheelbase | 86.25 inches
219 cm |
2WD Length | 159.5 inches
405 cm |
4WD Length | 152.375 inches
387 cm |
Width | 80.625 inches*Minimum width
204 cm |
Height (steering wheel) | 85.5 inches
217 cm |
Operating weight | 9,600 lbs
4354 kg |
Ballasted weight | 13,250 lbs
6010 kg |
2WD Ground clearance | 25.5 inches
64 cm |
4WD Ground clearance | 13.5 inches
34 cm |
2WD Front tread | 61.5 to 87.5 inches
156 to 222 cm |
4WD Front tread | 60/70.75/80 inches
152/179/203 cm |
Rear tread | 57 to 119.5 inches
144 to 303 cm |
Tests
Series map: G750G85077.8hp*95.6hp**Estimated engine power for comparison only.
Note: the Minneapolis-Moline model G850 is the same as the Oliver 1755. The following data is from the 1755 listing. |
Nebraska Tractor Test 1057 | |
|---|---|
Diesel 18-speed 2WD
October 14 - 27, 1970
Link: Nebraska Tractor Test 1057 file | |
PTO performance | |
Power at rated engine speed | 86.93 hp
64.8 kW |
Fuel use | 6.7 gal/hour
25.4 l/hour |
Drawbar performance | |
Max power | 73.87 hp
55.1 kW |
Fuel use | 6.6 gal/hour
25.0 l/hour |
Gear 3-direct used for power test. | |
Max pull | 10,549 lbs
4785 kg |
Gear 2-under used for pull test. | |
Photos

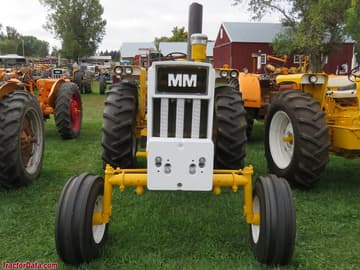

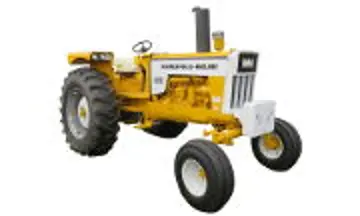

Minneapolis-Moline G850
Minneapolis-Moline G850
Minneapolis-Moline G850
Minneapolis-Moline G850
Minneapolis-Moline G850 operator station and controls.
Recommended Implements & Sizing Guide
Engineering recommendations for Minneapolis Moline Minneapolis-Moline G850 based on its 86.93 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 3 to 4 Bottom (16")3 - 4 铧 (40 cm) | Heavy Duty | Suitable for medium loam and stubble turnover. |
Rotary Cutter / MowerMowing & Clearing | 7 to 8 ft (84-96 in)2.1 - 2.4 m | Heavy Duty | Heavy-duty twin spindle cutter for overgrown acreage. |
Rotary TillerSeedbed Prep | 78 to 84 in200 - 215 cm | Heavy Duty | Heavy commercial tiller with multi-speed gearbox. |
Disc HarrowSecondary Tillage | 10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙 | Heavy Duty | Aggressive residue cutting in corn/cotton stubble. |
Hay BalerHay & Forage | 4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机 | Heavy Duty | Silage and dry hay; 540 RPM PTO with slip-clutch. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Minneapolis Moline Minneapolis-Moline G850.
Estimated Continuous Field Runtime: 7.7 hrs
Approximately 7.7 hours of continuous field operation at ~75% rated power on a full tank (35 gal / 132.5 L).
Estimated 75% Load Fuel Burn~4.5 gal/hr (17.1 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Minneapolis Moline Minneapolis-Moline G850 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Minneapolis Moline Minneapolis-Moline G850.
Converted Equivalents:
Horsepower (HP)86.9 hp
Kilowatts (kW)64.8 kW
Metric Horsepower (PS / CV)88.1 PS
