Minneapolis-Moline G704
The Minneapolis-Moline G704 is a tractor produced by Minneapolis Moline. It is equipped with a 425.5 ci 7.0 L engine. Transmission: 5 forward and 1 reverse. Operating weight: 8700 lbs 3946 kg.
Overview
 | 1962
Standard-tread tractor |
|---|
Production | |
|---|---|
Manufacturer | Minneapolis-Moline |
Standard-tread tractor | |
Built in Minneapolis, Minnesota, USA | |
Original price was $8,200 in 1962 | |
The Minneapolis-Moline G-704 is, basically, a G-VI with standard front-wheel assist. | |
Minneapolis-Moline G704 Transmission | |
|---|---|
5-speed | |
Transmission details ...  |
Minneapolis-Moline G704 Power | |
|---|---|
PTO (claimed) | 102 hp
76.1 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 8700 lbs
3946 kg |
Front tire | 9.5-24 |
Rear tire | 18.4-38 |
Full dimensions and tires ...  | |
Engine
Engine options | |
|---|---|
Minneapolis-Moline 7.0L 6-cyl LP gas | |
Minneapolis-Moline 7.0L 6-cyl diesel |
Engine Detail — 425.5 ci / 7.0 L LP Gas
Manufacturer | Minneapolis-Moline 425-6 |
Fuel Type | LP gas |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 425.5 ci
7.0 L |
Bore/Stroke | 4.25x5.00 inches
108 x 127 mm |
Rated RPM | 1500 |
Firing order | 1-5-3-6-2-4 |
Oil capacity | 15 qts
14.2 L |
Engine Detail — 425.5 ci / 7.0 L Diesel
Manufacturer | Minneapolis-Moline D425A-6 |
Fuel Type | Diesel |
Configuration | 6-cylinder, liquid-cooled |
Displacement | 425.5 ci
7.0 L |
Bore/Stroke | 4.25x5.00 inches
108 x 127 mm |
Rated RPM | 1500 |
Firing order | 1-5-3-6-2-4 |
Oil capacity | 15 qts
14.2 L |
Transmission
Transmission — 5 forward and 1 reverse
Gears | 5 forward and 1 reverse |
Dimensions
Minneapolis-Moline G704 Tires | |
|---|---|
Ag front | 9.5-24 |
Ag rear | 18.4-38 |
Dimensions | |
|---|---|
Weight | 8700 lbs
3946 kg |
Photos

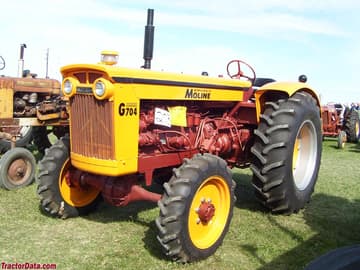

Minneapolis-Moline G-704 diesel in Energy Yellow.
Minneapolis-Moline G-704 LP-gas in Energy Yellow.
Minneapolis-Moline G-704 LP-gas in Power Yellow.
Minneapolis-Moline G-704 LP-gas in Power Yellow.
Minneapolis-Moline G-704 LP-gas in Power Yellow.
Minneapolis-Moline G-704 diesel in Power Yellow.
Minneapolis-Moline G-704 diesel in Power Yellow.
Minneapolis-Moline G-704 diesel in Power Yellow.
Minneapolis-Moline G-704 diesel in Power Yellow.
Minneapolis-Moline G-704 diesel operator station and controls.
Minneapolis-Moline G-704 LP-gas operator station and controls.
