Minneapolis-Moline G-VI

The Minneapolis-Moline G-VI is a tractor produced by Minneapolis Moline. It is equipped with a 425.5 ci 7.0 L engine. The listed engine power is 78.49 hp 58.5 kW. Transmission: 5 forward and 1 reverse. Operating weight: 8,335 lbs 3780 kg.

Engine Power

78.49 hp 58.5 kW

Fuel & Capacities

Gasoline

Transmission

5 forward and 1 reverse

Operating Weight

8,335 lbs 3780 kg

Overview

	1959 - 1962 Standard-tread tractor

Production
Manufacturer	Minneapolis-Moline
Standard-tread tractor
Original price	$6,500 (1962)

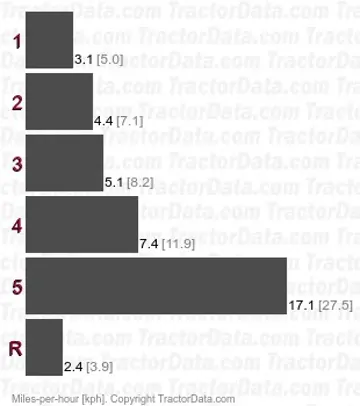

Minneapolis-Moline G-VI Transmission
5-speed gear
Transmission details ...

Minneapolis-Moline G-VI Power
Drawbar (claimed)	70 hp 52.2 kW
PTO (claimed)	78 hp 58.2 kW
Drawbar (tested)	69.92 hp 52.1 kW
PTO (tested)	78.49 hp 58.5 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Steering	hydraulic power
Differential mechanical dry disc brakes
Open operator station.

Power Take-off (PTO)
Rear PTO	live
Rear PTO Type	540

Dimensions & Tires
Wheelbase	96.375 inches 244 cm
Weight	8,335 lbs 3780 kg
Front tire	7.50-18
Rear tire	18.4-34
Full dimensions and tires ...

Engine

Engine options
Minneapolis-Moline 7.0L 6-cyl LP gas
Minneapolis-Moline 7.0L 6-cyl diesel
Minneapols-Moline 7.0L 6-cyl gasoline

Engine Detail — 425.5 ci / 7.0 L LP Gas

Manufacturer	Minneapolis-Moline 425-6
Fuel Type	LP gas
Configuration	6-cylinder, liquid-cooled
Displacement	425.5 ci 7.0 L
Bore/Stroke	4.25x5.00 inches 108 x 127 mm
Compression	8.3:1
Rated RPM	1500
Firing order	1-5-3-6-2-4
Starter volts	12
Oil capacity	15 qts 14.2 L
Coolant capacity	50 qts 47.3 L

Engine Detail — 425.5 ci / 7.0 L Diesel

Manufacturer	Minneapolis-Moline D425A-6
Fuel Type	Diesel
Configuration	6-cylinder, liquid-cooled
Displacement	425.5 ci 7.0 L
Bore/Stroke	4.25x5.00 inches 108 x 127 mm
Compression	14.9:1
Rated RPM	1500
Firing order	1-5-3-6-2-4
Starter volts	12
Oil capacity	15 qts 14.2 L

Engine Detail — 425.5 ci / 7.0 L Gasoline

Manufacturer	Minneapols-Moline 425-6
Fuel Type	Gasoline
Configuration	6-cylinder, liquid-cooled
Displacement	425.5 ci 7.0 L
Bore/Stroke	4.25x5.00 inches 108 x 127 mm
Firing order	1-5-3-6-2-4

Transmission

Transmission — 5 forward and 1 reverse gear

Type	gear
Gears	5 forward and 1 reverse

Dimensions

Minneapolis-Moline G-VI Tires
Ag front	7.50-18
Ag rear	18.4-34

Dimensions
Wheelbase	96.375 inches 244 cm
Length	150.5 inches 382 cm
Width	82 inches 208 cm
Height	79.25 inches 201 cm
Operating weight	8,335 lbs 3780 kg
Ballasted weight	12,695 lbs 5758 kg

Tests

Tractor Tests
NTTL 791: LP-gas 5-speed 2WD
NTTL 792: diesel 5-speed 2WD

Nebraska Tractor Test 791
LP-gas 5-speed 2WD April 24 - May 9, 1961 Link: Nebraska Tractor Test 791 file
PTO performance
Power at rated engine speed	78.44 hp 58.5 kW
Fuel use	8.6 gal/hour 32.6 l/hour
Power at rated PTO speed	66.58 hp 49.6 kW
Fuel use	7.3 gal/hour 27.6 l/hour
Drawbar performance
Max power	69.92 hp 52.1 kW
Fuel use	8.6 gal/hour 32.6 l/hour
Gear 3 used for power test.
Max pull	9,296 lbs 4216 kg
Gear 1 used for pull test.

Nebraska Tractor Test 792
Diesel 5-speed 2WD April 24 - May 9, 1961 Link: Nebraska Tractor Test 792 file
PTO performance
Power at rated engine speed	78.49 hp 58.5 kW
Fuel use	5.4 gal/hour 20.4 l/hour
Power at rated PTO speed	67.09 hp 50.0 kW
Fuel use	4.5 gal/hour 17.0 l/hour
Drawbar performance
Max power	66.06 hp 49.3 kW
Fuel use	5.3 gal/hour 20.1 l/hour
Gear 3 used for power test.
Max pull	9,023 lbs 4092 kg
Gear 1 used for pull test.

Photos

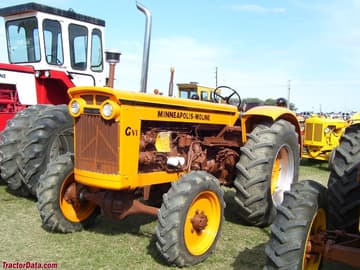

Minneapolis-Moline G-VI

Minneapolis-Moline G-VI with cab and LP-gas engine.

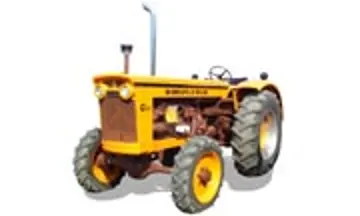

Open station Minneapolis-Moline G-VI with LP-gas engine.

Recommended Implements & Sizing Guide

Engineering recommendations for Minneapolis Moline Minneapolis-Moline G-VI based on its 78.49 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	3 to 4 Bottom (16")3 - 4 铧 (40 cm)	Heavy Duty	Suitable for medium loam and stubble turnover.
Rotary Cutter / MowerMowing & Clearing	7 to 8 ft (84-96 in)2.1 - 2.4 m	Heavy Duty	Heavy-duty twin spindle cutter for overgrown acreage.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	4x4 to 4x5 Round Baler1.2x1.5 m 紧凑圆捆机	Heavy Duty	Silage and dry hay; 540 RPM PTO with slip-clutch.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Minneapolis Moline Minneapolis-Moline G-VI.

Estimated Continuous Field Runtime: 1.3 hrs

Approximately 1.3 hours of continuous field operation at ~75% rated power on a full tank (5.3 gal / 20.1 L).

Estimated 75% Load Fuel Burn~4.1 gal/hr (15.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours

Minneapolis Moline Minneapolis-Moline G-VI Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Minneapolis Moline Minneapolis-Moline G-VI.

Enter value:

Unit:

Converted Equivalents:

Horsepower (HP)78.5 hp

Kilowatts (kW)58.5 kW

Metric Horsepower (PS / CV)79.6 PS
