Minneapolis-Moline M-504
The Minneapolis-Moline M-504 is a tractor produced by Minneapolis Moline. It is equipped with a 336 ci 5.5 L engine. Transmission: Ampli-Torc. Operating weight: 6200 lbs 2812 kg.
Fuel & Capacities
Diesel
Transmission
Ampli-Torc
Operating Weight
6200 lbs
2812 kg
Overview
 | 1962 - 1963 |
|---|
Production | |
|---|---|
Manufacturer | Minneapolis-Moline |
Variants | |
|---|---|
M-5 | 2WD |
Minneapolis-Moline M-504 Transmission | |
|---|---|
10-speed two-speed power shift | |
Transmission details ...  |
Minneapolis-Moline M-504 Power | |
|---|---|
PTO (claimed) | 61 hp
45.5 kW |
Mechanical | |
|---|---|
Four-wheel drive |
Tractor hitch | |
|---|---|
Rear Type | II |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Weight | 6200 lbs
2812 kg |
Full dimensions and tires ...  | |
Engine
Engine options | |
|---|---|
Minneapolis-Moline 5.5L 4-cyl LP gas | |
Minneapolis-Moline 5.5L 4-cyl diesel |
Engine Detail — 336 ci / 5.5 L LP Gas
Manufacturer | Minneapolis-Moline 336-4 |
Fuel Type | LP gas |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 336 ci
5.5 L |
Bore/Stroke | 4.625x5.00 inches
117 x 127 mm |
Compression | 7.9:1 |
Rated RPM | 1500 |
Engine Detail — 336 ci / 5.5 L Diesel
Manufacturer | Minneapolis-Moline 336-4 |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 336 ci
5.5 L |
Bore/Stroke | 4.625x5.00 inches
117 x 127 mm |
Compression | 14.8:1 |
Rated RPM | 1500 |
Transmission
Transmission — Ampli-Torc
Transmission | Ampli-Torc |
Type | two-speed power shift |
Gears | 10 forward and 2 reverse |
Dimensions
Minneapolis-Moline M-504 Tires |
|---|
Dimensions | |
|---|---|
Weight | 6200 lbs
2812 kg |
Photos

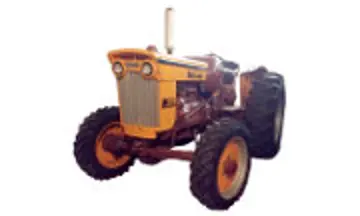

Minneapolis-Moline M-504
