Minneapolis-Moline M-602
The Minneapolis-Moline M-602 is a tractor produced by Minneapolis Moline. It is equipped with a 336 ci 5.5 L engine. Transmission: Ampli-Torc. Operating weight: 6080 to 6600 pounds.
Fuel & Capacities
LP gas
Transmission
Ampli-Torc
Operating Weight
6080 to 6600 pounds
Overview
 | 1963 - 1964
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | Minneapolis-Moline |
Row-Crop tractor | |
Built in Minneapolis, Minnesota, USA | |
Total built | 4,729 |
2,957 (gas/LP) | |
1,772 (diesel) | |
Original price was $5,100 in 1964 | |
Variants | |
|---|---|
M-602U | tricycle |
M-602E | wide-front |
M-602N | single front |
M-602S | standard |
M-604 | 4WD |
Minneapolis-Moline M-602 Transmission | |
|---|---|
10-speed two-speed power shift | |
Transmission details ...  |
Minneapolis-Moline M-602 Power | |
|---|---|
Diesel Drawbar (claimed) | 51 hp
38.0 kW |
Gas Drawbar (claimed) | 52 hp
38.8 kW |
LP-gas Drawbar (claimed) | 54 hp
40.3 kW |
Diesel PTO (claimed) | 64 hp
47.7 kW |
Gas PTO (claimed) | 65 hp
48.5 kW |
LP-gas PTO (claimed) | 66 hp
49.2 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Power steering | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | II |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
U Wheelbase | 94 inches
238 cm |
E Wheelbase | 101 inches
256 cm |
N Wheelbase | 94 inches
238 cm |
Weight | 6080 to 6600 pounds |
Front tire | 6.00-16 |
Rear tire | 15.5-38 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
M6 published in 1963, by Minneapolis-Moline | |
M6 published in 1964, by Minneapolis-Moline | |
Buyer's Guide published in 1964, by Minneapolis-Moline |
Engine
Engine options | |
|---|---|
Minneapolis-Moline 5.5L 4-cyl gasoline | |
Minneapolis-Moline 5.5L 4-cyl diesel | |
Minneapolis-Moline 5.5L 4-cyl LP gas |
Engine Detail — 336 ci / 5.5 L Gasoline
Manufacturer | Minneapolis-Moline 336-4 |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 336 ci
5.5 L |
Bore/Stroke | 4.625x5.00 inches
117 x 127 mm |
Air cleaner | oil bath |
Rated RPM | 1500 |
Engine Detail — 336 ci / 5.5 L Diesel
Manufacturer | Minneapolis-Moline |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 336 ci
5.5 L |
Bore/Stroke | 4.625x5.00 inches
117 x 127 mm |
Air cleaner | oil bath |
Rated RPM | 1500 |
Engine Detail — 336 ci / 5.5 L LP Gas
Manufacturer | Minneapolis-Moline |
Fuel Type | LP gas |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 336 ci
5.5 L |
Bore/Stroke | 4.625x5.00 inches
117 x 127 mm |
Air cleaner | oil bath |
Rated RPM | 1500 |
Transmission

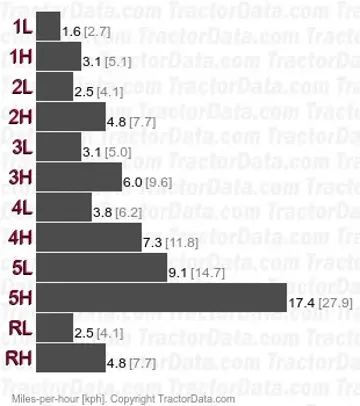

Transmission — Ampli-Torc
Transmission | Ampli-Torc |
Type | two-speed power shift |
Gears | 10 forward and 2 reverse |
With 15.5-38 rear tires. | |
 | |
Dimensions
Minneapolis-Moline M-602 Tires | |
|---|---|
Ag front | 6.00-16 |
N Ag front | 9.00-10 |
Ag rear | 15.5-38 |
Dimensions | |
|---|---|
U Wheelbase | 94 inches
238 cm |
E Wheelbase | 101 inches
256 cm |
N Wheelbase | 94 inches
238 cm |
U Length | 140 inches
355 cm |
E Length | 147 inches
373 cm |
N Length | 137 inches
347 cm |
Width | 79 inches
200 cm |
Height (steering wheel) | 72 inches
182 cm |
Clearance (front axle) | 16 inches
40 cm |
Clearance (rear axle) | 26 inches
66 cm |
Clearance (drawbar) | 15 inches
38 cm |
U Front tread | 8/13 inches
20/33 cm |
E Front tread | 52 to 76 inches
132 to 193 cm |
Rear tread | 60 to 88 inches
152 to 223 cm |
Minneapolis-Moline M-602 Weight | |
|---|---|
U gas Operating | 6200 lbs
2812 kg |
U diesel Operating | 6350 lbs
2880 kg |
U LP-gas Operating | 6400 lbs
2903 kg |
E gas Operating | 6400 lbs
2903 kg |
E diesel Operating | 6550 lbs
2971 kg |
E LP-gas Operating | 6600 lbs
2993 kg |
N gas Operating | 6080 lbs
2757 kg |
N diesel Operating | 6230 lbs
2825 kg |
N LP-gas Operating | 6280 lbs
2848 kg |
Photos

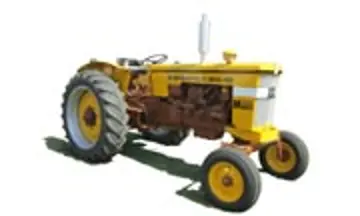

Gasoline Minneapolis-Moline M-602E.
Gasoline Minneapolis-Moline M-602E.
Minneapolis-Moline M-602 operator station and controls.
LP-gas Minneapolis-Moline M-602U owned by Bill and Linda Adams.
LP-gas Minneapolis-Moline M-602U owned by Bill and Linda Adams.
