Minneapolis-Moline GTA

The Minneapolis-Moline GTA is a tractor produced by Minneapolis Moline. It is equipped with a 403.2 ci 6.6 L engine. Transmission: 4 forward and 1 reverse. Operating weight: 6800 lbs 3084 kg.

Fuel & Capacities
Gasoline
Transmission
4 forward and 1 reverse
Operating Weight
6800 lbs 3084 kg

Overview

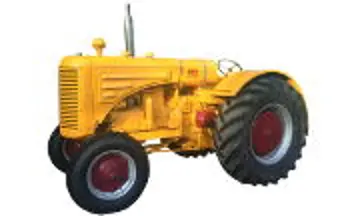

Minneapolis-Moline GTA tractor photo
1942 - 1947 Standard-tread tractor
Production
Manufacturer
Minneapolis-Moline
Standard-tread tractor
Built in Minneapolis, Minnesota, USA
Variants
GTA-I
industrial
Minneapolis-Moline GTA Engine
Minneapolis-Moline 6.6L 4-cyl gasoline
Engine details ...
Minneapolis-Moline GTA Transmission
4-speed gear
Transmission details ...
Minneapolis-Moline GTA Power
Drawbar (claimed)
37 hp 27.6 kW
PTO (claimed)
54 hp 40.3 kW
Mechanical
Two-wheel drive
Band brakes
Open operator station.
Power Take-off (PTO)
Rear PTO Type
526
Dimensions & Tires
Weight
6800 lbs 3084 kg
Front tire
7.50-18
Rear tire
12.75-32
Full dimensions and tires ...

Engine

Engine Detail — 403.2 ci / 6.6 L Gasoline

Manufacturer
Minneapolis-Moline
Fuel Type
Gasoline
Configuration
4-cylinder, liquid-cooled
Displacement
403.2 ci 6.6 L
Bore/Stroke
4.625x6.00 inches 117 x 152 mm
Rated RPM
1075

Transmission

Transmission — 4 forward and 1 reverse gear

Type
gear
Gears
4 forward and 1 reverse

Dimensions

Minneapolis-Moline GTA Tires
Ag front
7.50-18
Ag rear
12.75-32
Ag front
34-5.5 (steel)
Ag rear
50-12 (steel)
Dimensions
Weight
6800 lbs 3084 kg

Photos

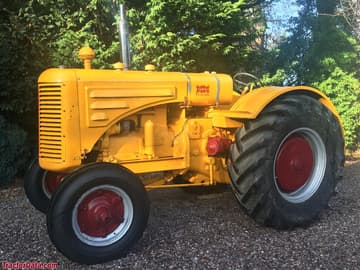

Minneapolis-Moline GTA

Minneapolis-Moline GTA

Minneapolis-Moline GTA converted to propane.

Minneapolis-Moline GTA converted to propane.
