Minneapolis-Moline GTC
The Minneapolis-Moline GTC is a tractor produced by Minneapolis Moline. It is equipped with a 340.5 ci 5.6 L engine. Transmission: 5 forward and 1 reverse.
Fuel & Capacities
LP gas
Transmission
5 forward and 1 reverse
Overview
 | 1951 - 1953
Standard-tread tractor |
|---|
Production | |
|---|---|
Manufacturer | Minneapolis-Moline |
Standard-tread tractor | |
Built in Minneapolis, Minnesota, USA | |
Variants | |
|---|---|
GTB | gasoline |
GTC | LP-gas |
Minneapolis-Moline GTC Engine | |
|---|---|
Minneapolis-Moline 5.6L 4-cyl LP gas | |
Engine details ...  |
Minneapolis-Moline GTC Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Minneapolis-Moline GTC Power |
|---|
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Open operator station. | |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 82.5 inches
209 cm |
Front tire | 7.50-18 |
Rear tire | 14-34 |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 16 inches
40 cm |
Width | 7 inches
17 cm |
RPM | 627 |
Speed | 2,630 ft/min
801.62 meters/min |
Engine
Engine Detail — 340.5 ci / 5.6 L LP Gas
Manufacturer | Minneapolis-Moline 340-4 |
Fuel Type | LP gas |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 340.5 ci
5.6 L |
Bore/Stroke | 4.25x6.00 inches
108 x 152 mm |
Rated RPM | 1100 |
Starter volts | 6 |
Transmission
Transmission — 5 forward and 1 reverse gear
Type | gear |
Gears | 5 forward and 1 reverse |
Clutch | dry disc |
 | |
Dimensions
Minneapolis-Moline GTC Tires | |
|---|---|
Ag front | 7.50-18 |
Ag rear | 14-34 |
Dimensions | |
|---|---|
Wheelbase | 82.5 inches
209 cm |
Length | 133.3 inches
338 cm |
Height | 71 inches
180 cm |
Front tread | 53.25 inches
135 cm |
Rear tread | 62 inches
157 cm |
Photos

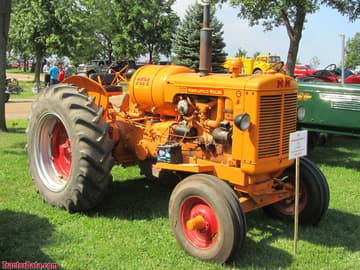

Minneapolis-Moline LP-gas G (GTC).
Minneapolis-Moline LP-gas G (GTC).
Minneapolis-Moline LP-gas G (GTC).
Minneapolis Moline Minneapolis-Moline GTC Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Minneapolis Moline Minneapolis-Moline GTC.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
