Minneapolis-Moline Jet Star 2
The Minneapolis-Moline Jet Star 2 is a tractor produced by Minneapolis Moline. It is equipped with a 206 ci 3.4 L engine. Transmission: gear. Operating weight: 4600 lbs 2086 kg.
Fuel & Capacities
Diesel
Transmission
gear
Operating Weight
4600 lbs
2086 kg
Overview
 | 1963
Constellation SeriesUtility tractor
Constellation Series
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Minneapolis-Moline |
Utility tractor | |
Built in Minneapolis, Minnesota, USA | |
Total built | 1,213 (total) |
1,100 (gas) | |
113 (diesel) | |
Original price | $5000 (1970) |
Minneapolis-Moline Jet Star 2 Power | |
|---|---|
PTO (claimed) | 44 hp
32.8 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | II |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Weight | 4600 lbs
2086 kg |
Front tire | 5.50-16 |
Rear tire | 12.4-28 |
Full dimensions and tires ...  | |
Engine
Engine options | |
|---|---|
Minneapolis-Moline 3.4L 4-cyl gasoline | |
Minneapolis-Moline 3.4L 4-cyl diesel |
Engine Detail — 206 ci / 3.4 L Gasoline
Manufacturer | Minneapolis-Moline |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 206 ci
3.4 L |
Bore/Stroke | 3.625x5.00 inches
92 x 127 mm |
Engine Detail — 206 ci / 3.4 L Diesel
Manufacturer | Minneapolis-Moline |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 206 ci
3.4 L |
Bore/Stroke | 3.625x5.00 inches
92 x 127 mm |
Transmission
Transmission options | |
|---|---|
10-speed partial power shift | |
5-speed |
Transmission — Ampli-Torc
Transmission | Ampli-Torc |
Type | partial power shift |
Gears | 10 forward and 2 reverse |
Transmission — gear
Transmission | gear |
Gears | 5 forward and 1 reverse |
Dimensions
Minneapolis-Moline Jet Star 2 Tires | |
|---|---|
Ag front | 5.50-16 |
Ag rear | 12.4-28 |
Dimensions | |
|---|---|
Weight | 4600 lbs
2086 kg |
Photos

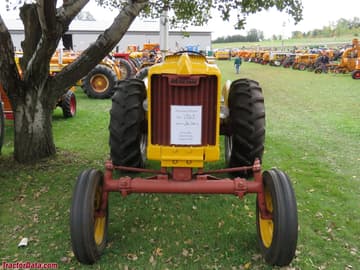

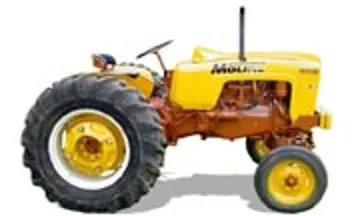

Minneapolis-Moline Jet Star 2
Minneapolis-Moline Jet Star 2
Minneapolis-Moline Jet Star 2
Minneapolis-Moline Jet Star 2
Minneapolis-Moline Jet Star 2 operator station and controls.
Minneapolis-Moline Jet Star 2 rear view.
