Minneapolis-Moline Jet Star 3

The Minneapolis-Moline Jet Star 3 is a tractor produced by Minneapolis Moline. It is equipped with a 206 ci 3.4 L engine. Transmission: Ampli-Torc. Operating weight: 3630 to 3830 pounds.

Fuel & Capacities
LP gas
Transmission
Ampli-Torc
Operating Weight
3630 to 3830 pounds

Overview

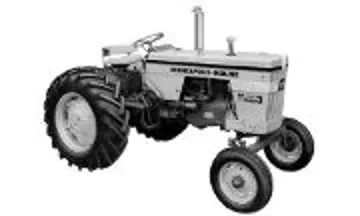

Minneapolis-Moline Jet Star 3 tractor photo
1964 - 1965 Row-Crop tractor
Production
Manufacturer
Minneapolis-Moline
Row-Crop tractor
Built in Minneapolis, Minnesota, USA
Minneapolis-Moline Jet Star 3 Power
PTO (claimed)
44 hp 32.8 kW
Mechanical
Two-wheel drive
Steering
manual
Steering
power OptOptional
Disc brakes
Open operator station.
Tractor hitch
Rear Type
II
Control
draft control OptOptional
Power Take-off (PTO)
Rear PTO
independent
Rear PTO Type
540 (1.375)
1000 (1.375)
Engine RPM
540@1525
1000@1750
Dimensions & Tires
Wheelbase
87.125 inches 221 cm
Weight
3630 to 3830 pounds
Front tire
5.50-16
Rear tire
12.4-28
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
generator
Batteries
1 (gas/LP)
2 (diesel)
Battery volts
12
References

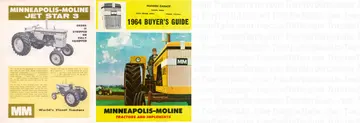

Jet Star 3 references literature
Jet Star 3 published in 1964, by Minneapolis-Moline
Buyer's Guide published in 1964, by Minneapolis-Moline

Engine

Engine options
Minneapolis-Moline 3.4L 4-cyl gasoline
Minneapolis-Moline 3.4L 4-cyl diesel
Minneapolis-Moline 3.4L 4-cyl LP gas

Engine Detail — 206 ci / 3.4 L Gasoline

Manufacturer
Minneapolis-Moline
Fuel Type
Gasoline
Configuration
4-cylinder, liquid-cooled
Displacement
206 ci 3.4 L
Bore/Stroke
3.625x5.00 inches 92 x 127 mm
Air cleaner
oil bath
Rated RPM
1750
Firing order
1-3-4-2
Starter volts
12
Oil capacity
6 qts 5.7 L
Coolant capacity
12 qts 11.4 L

Engine Detail — 206 ci / 3.4 L Diesel

Manufacturer
Minneapolis-Moline
Fuel Type
Diesel
Configuration
4-cylinder, liquid-cooled
Displacement
206 ci 3.4 L
Bore/Stroke
3.625x5.00 inches 92 x 127 mm
Air cleaner
oil bath
Rated RPM
1750
Firing order
1-3-4-2
Starter volts
12
Oil capacity
6 qts 5.7 L
Coolant capacity
12 qts 11.4 L

Engine Detail — 206 ci / 3.4 L LP Gas

Manufacturer
Minneapolis-Moline
Fuel Type
LP gas
Configuration
4-cylinder, liquid-cooled
Displacement
206 ci 3.4 L
Bore/Stroke
3.625x5.00 inches 92 x 127 mm
Air cleaner
oil bath
Rated RPM
1750
Firing order
1-3-4-2
Starter volts
12
Oil capacity
6 qts 5.7 L
Coolant capacity
12 qts 11.4 L

Transmission

Transmission options
10-speed two-speed power shift
5-speed gear

Transmission — Ampli-Torc

Transmission
Ampli-Torc
Type
two-speed power shift
Gears
10 forward and 2 reverse
With 12.4-28 rear tires.

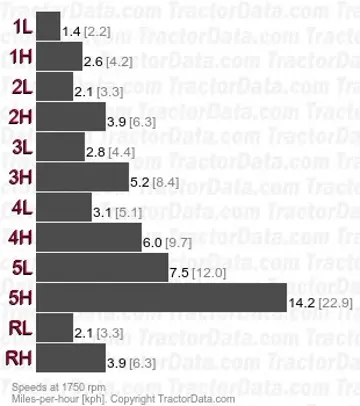

Jet Star 3 Ampli-Torc two-speed power shift speeds

Transmission — 5 forward and 1 reverse gear

Type
gear
Gears
5 forward and 1 reverse

Dimensions

Minneapolis-Moline Jet Star 3 Tires
Ag front
5.50-16
Ag rear
12.4-28
Ag front
7.50-16
Dimensions
Wheelbase
87.125 inches 221 cm
Length
126.25 inches 320 cm
Width
70.25 inches 178 cm
Height (steering wheel)
65.75 inches 167 cm
Height (exhaust)
78.25 inches 198 cm
Clearance (front axle)
20 inches 50 cm
Clearance (rear axle)
19.5 inches 49 cm
Front tread
50 to 78 inches 127 to 198 cm
Rear tread
56 to 84 inches 142 to 213 cm
Minneapolis-Moline Jet Star 3 Weight
Gasoline
3630 lbs 1646 kg
LP-gas
3830 lbs 1737 kg
Diesel
3730 lbs 1691 kg

Photos

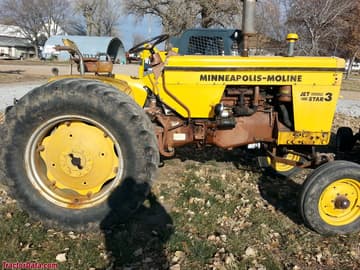

Wide-front Minneapolis-Moline Jet Star 3.

Wide-front Minneapolis-Moline Jet Star 3.

WMinneapolis-Moline Jet Star 3 with tricycle front end.

WMinneapolis-Moline Jet Star 3 with tricycle front end.
