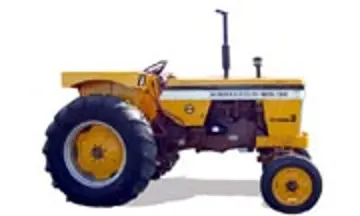

Minneapolis-Moline Jet Star 3 Super

The Minneapolis-Moline Jet Star 3 Super is a tractor produced by Minneapolis Moline. It is equipped with a 206 ci 3.4 L engine. Transmission: Ampli-Torc. Operating weight: 4260 to 4420 pounds.

Overview

	1966 - 1970 Row-Crop tractor

Production
Manufacturer	Minneapolis-Moline
Row-Crop tractor
Built in Minneapolis, Minnesota, USA

Minneapolis-Moline Jet Star 3 Super Power
PTO (claimed)	44 hp 32.8 kW

Mechanical
Two-wheel drive
Steering	manual
	hydrostatic power optional
Disc brakes
Open operator station.

Tractor hitch
Rear Type	II

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540 (1.375)
	1000 (1.375)
Engine RPM	540@1525
	1000@1750

Dimensions & Tires
Wheelbase	87.125 inches 221 cm
Weight	4260 to 4420 pounds
Front tire	5.50-16
Rear tire	12.4-28
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Batteries	1 (gas/LP)
	2 (diesel)
Battery volts	12

References
Jet Star 3 Super - Power and Economy published in 1968, by Minneapolis-Moline

Engine

Engine options
Minneapolis-Moline 3.4L 4-cyl gasoline
Minneapolis-Moline 3.4L 4-cyl diesel
Minneapolis-Moline 3.4L 4-cyl LP gas

Engine Detail — 206 ci / 3.4 L Gasoline

Manufacturer	Minneapolis-Moline
Fuel Type	Gasoline
Configuration	4-cylinder, liquid-cooled
Displacement	206 ci 3.4 L
Bore/Stroke	3.625x5.00 inches 92 x 127 mm
Air cleaner	oil bath
Rated RPM	1750
Firing order	1-3-4-2
Starter volts	12
Oil capacity	6 qts 5.7 L
Coolant capacity	12 qts 11.4 L

Engine Detail — 206 ci / 3.4 L Diesel

Manufacturer	Minneapolis-Moline
Fuel Type	Diesel
Configuration	4-cylinder, liquid-cooled
Displacement	206 ci 3.4 L
Bore/Stroke	3.625x5.00 inches 92 x 127 mm
Air cleaner	oil bath
Rated RPM	1750
Firing order	1-3-4-2
Starter volts	12
Oil capacity	6 qts 5.7 L
Coolant capacity	12 qts 11.4 L

Engine Detail — 206 ci / 3.4 L LP Gas

Manufacturer	Minneapolis-Moline
Fuel Type	LP gas
Configuration	4-cylinder, liquid-cooled
Displacement	206 ci 3.4 L
Bore/Stroke	3.625x5.00 inches 92 x 127 mm
Air cleaner	oil bath
Rated RPM	1750
Firing order	1-3-4-2
Starter volts	12
Oil capacity	6 qts 5.7 L
Coolant capacity	12 qts 11.4 L

Transmission

Transmission options
10-speed partial power shift
5-speed gear

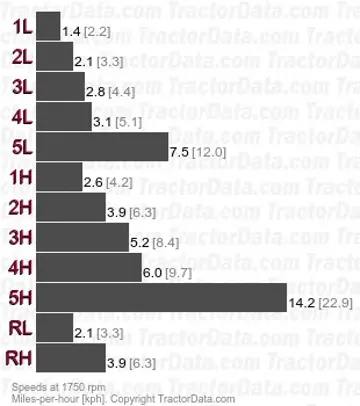

Transmission — Ampli-Torc

Transmission	Ampli-Torc
Type	partial power shift
Gears	10 forward and 2 reverse
With 12.4-28 rear tires.

Transmission — 5 forward and 1 reverse gear

Type	gear
Gears	5 forward and 1 reverse

Dimensions

Minneapolis-Moline Jet Star 3 Super Tires
Ag front	5.50-16
Ag rear	12.4-28
Ag front	6.00-16
	6.00-14
	7.50-10 *Single front wheel
Ag rear	13.6-28
	14.9-28

Dimensions
Wheelbase	87.125 inches 221 cm
Length	132.5 inches 336 cm
Width	70.25 inches 178 cm
Height	70.625 inches 179 cm
Clearance (front axle)	20 inches 50 cm
Clearance (rear axle)	19.5 inches 49 cm
Front tread	50 to 78 inches 127 to 198 cm
Rear tread	56 to 84 inches 142 to 213 cm

Minneapolis-Moline Jet Star 3 Super Weight
Gasoline	4260 lbs 1932 kg
LP-gas	4420 lbs 2004 kg
Diesel	4260 lbs 1932 kg

Photos

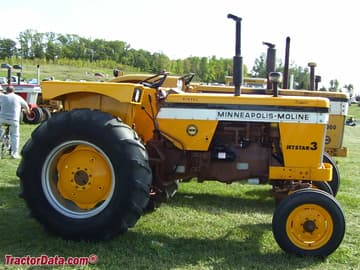

Early Minneaolis-Moline Jet Star 3 Super with dyna brown chassis.

Late Minneapolis-Moline Jet Star 3 Super with yellow chassis.

Jet Star 3 Super operator station and controls.

Minneapolis-Moline Jet Star 3 tractor.
