Minneapolis-Moline JT

The Minneapolis-Moline JT is a tractor produced by Minneapolis Moline. It is equipped with a 196.1 ci 3.2 L engine. Transmission: 5 forward and 1 reverse. Operating weight: 3450 lbs 1564 kg.

Fuel & Capacities
17 gal 64.3 L
Transmission
5 forward and 1 reverse
Operating Weight
3450 lbs 1564 kg

Overview

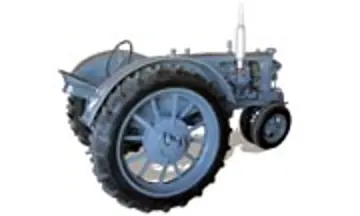

Minneapolis-Moline JT tractor photo
1934 - 1937 Row-Crop tractor
Production
Manufacturer
Minneapolis-Moline
Row-Crop tractor
Total built
6,244
Variants
JT
row-crop
JTS
standard front
JTO
orchard
Minneapolis-Moline JT Engine
Waukesha 3.2L 4-cyl gasoline
Fuel tank
17 gal 64.3 L
Aux. fuel
2 gal 7.6 L
Engine details ...
Minneapolis-Moline JT Transmission
5-speed gear
Transmission details ...
Minneapolis-Moline JT Power
Drawbar (claimed)
14 hp 10.4 kW
Belt (claimed)
22 hp 16.4 kW
Plows
2-3
Drawbar (tested)
17.98 hp 13.4 kW
Belt (tested)
24.22 hp 18.1 kW
Performance test details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Dimensions & Tires
Weight
3450 lbs 1564 kg
Front tire
25x4.50
Rear tire
50x8
Full dimensions and tires ...

Engine

Engine Detail — 196.1 ci / 3.2 L Gasoline

Manufacturer
Waukesha
Fuel Type
Gasoline
Configuration
4-cylinder 8-valve, liquid-cooled
Displacement
196.1 ci 3.2 L
Bore/Stroke
3.625x4.75 inches 92 x 121 mm
Fuel system
Zenith carburetor
Air cleaner
oil bath
Rated RPM
1275
Firing order
1-2-4-3
Coolant capacity
20 qts 18.9 L

Transmission

Transmission — 5 forward and 1 reverse gear

Type
gear
Gears
5 forward and 1 reverse
Clutch
dry disc

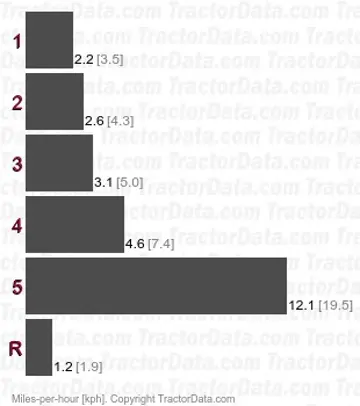

JT gear speeds

Dimensions

Minneapolis-Moline JT Tires
Ag front
25x4.50 (steel)
Ag rear
50x8 (steel)
Ag front
5.25x16
Ag rear
9.00x36
Dimensions
Length
115.5 inches 293 cm
Width
79 inches 200 cm
Height
56 inches 142 cm
Weight
3450 lbs 1564 kg

Tests

Nebraska Tractor Test 233
Gasoline 5-speed 2WD April 17 - 29, 1935 Link: Nebraska Tractor Test 233 file
Belt power (max)
24.22 hp 18.1 kW
Belt fuel use (max)
2.4 gal/hour 9.1 l/hour
Drawbar performance
Max power
17.98 hp 13.4 kW
Gear 3 used for power test.
Max pull
2787 lbs 1264 kg
Gear 1 used for pull test.

Photos

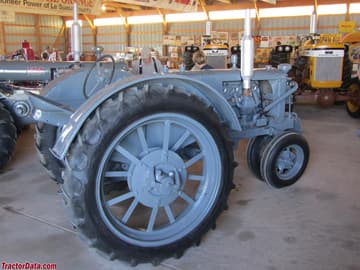

Minneapolis-Moline JT with rubber tires.

Minneapolis-Moline JT with rubber tires.

Minneapolis-Moline JT operator station and controls.

Minneapolis-Moline JT operator station and controls.

Minneapolis-Moline JT on steel wheels.

Minneapolis-Moline JT on steel wheels.

Minneapolis-Moline JT on steel wheels.

Minneapolis-Moline JT on steel wheels.

Minneapolis-Moline JT on steel wheels.

Minneapolis-Moline JT on steel wheels.

Minneapolis-Moline JT on steel wheels.

Minneapolis-Moline JT on steel wheels.
