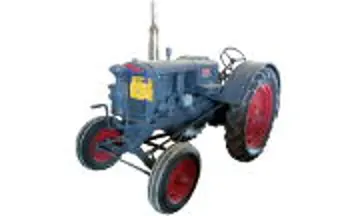

Minneapolis-Moline JTS
The Minneapolis-Moline JTS is a tractor produced by Minneapolis Moline. It is equipped with a 196.1 ci 3.2 L engine. Transmission: 5 forward and 1 reverse. Operating weight: 3450 lbs 1564 kg.
Fuel & Capacities
17 gal
64.3 L
Transmission
5 forward and 1 reverse
Operating Weight
3450 lbs
1564 kg
Overview
 | 1936 - 1938
Standard-tread tractor |
|---|
Production | |
|---|---|
Manufacturer | Minneapolis-Moline |
Standard-tread tractor | |
Variants | |
|---|---|
JT | row-crop |
JTS | standard front |
JTO | orchard |
Minneapolis-Moline JTS Engine | |
|---|---|
Waukesha 3.2L 4-cyl gasoline | |
Fuel tank | 17 gal
64.3 L |
Aux. fuel | 2 gal
7.6 L |
Engine details ...  | |
Minneapolis-Moline JTS Transmission | |
|---|---|
5-speed gear | |
Transmission details ...  |
Minneapolis-Moline JTS Power | |
|---|---|
Drawbar (claimed) | 14 hp
10.4 kW |
Belt (claimed) | 22 hp
16.4 kW |
Plows | 2-3 |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 3450 lbs
1564 kg |
Front tire | 25x4.50 |
Rear tire | 50x8 |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 15.625 inches
39 cm |
Width | 6.5 inches
16 cm |
RPM | 730 |
Speed | 3000 ft/min
914.40 meters/min |
Engine
Engine Detail — 196.1 ci / 3.2 L Gasoline
Manufacturer | Waukesha |
Fuel Type | Gasoline |
Configuration | 4-cylinder 8-valve, liquid-cooled |
Displacement | 196.1 ci
3.2 L |
Bore/Stroke | 3.625x4.75 inches
92 x 121 mm |
Fuel system | Zenith carburetor |
Air cleaner | oil bath |
Rated RPM | 1275 |
Firing order | 1-2-4-3 |
Coolant capacity | 20 qts
18.9 L |
Transmission

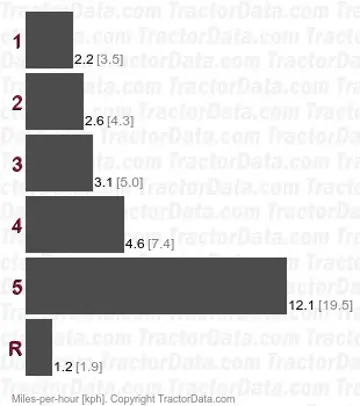

Transmission — 5 forward and 1 reverse gear
Type | gear |
Gears | 5 forward and 1 reverse |
Clutch | dry disc |
 | |
Dimensions
Minneapolis-Moline JTS Tires | |
|---|---|
Ag front | 25x4.50 (steel) |
Ag rear | 50x8 (steel) |
Dimensions | |
|---|---|
Length | 124.5 inches
316 cm |
Width | 57.25 inches
145 cm |
Height | 56 inches
142 cm |
Weight | 3450 lbs
1564 kg |
Photos

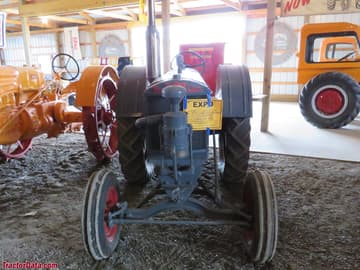

Minneapolis-Moline JTS
Minneapolis-Moline JTS
Minneapolis-Moline JTS
Minneapolis-Moline JTS
Minneapolis-Moline JTS
Minneapolis-Moline JTS
Minneapolis-Moline Standard J operator station and controls.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Minneapolis Moline Minneapolis-Moline JTS.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Minneapolis Moline Minneapolis-Moline JTS Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Minneapolis Moline Minneapolis-Moline JTS.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
