Minneapolis-Moline M-604
The Minneapolis-Moline M-604 is a tractor produced by Minneapolis Moline. It is equipped with a 336 ci 5.5 L engine. Transmission: Ampli-Torc. Operating weight: 7220 to 7420 pounds.
Fuel & Capacities
LP gas
Transmission
Ampli-Torc
Operating Weight
7220 to 7420 pounds
Overview
 | 1963 - 1964
Standard-tread tractor |
|---|
Production | |
|---|---|
Manufacturer | Minneapolis-Moline |
Standard-tread tractor | |
Built in Minneapolis, Minnesota, USA | |
Original price was $7,000 in 1964 | |
Variants | |
|---|---|
M-602U | tricycle |
M-602E | wide-front |
M-602N | single front |
M-602S | standard |
M-604 | 4WD |
Minneapolis-Moline M-604 Transmission | |
|---|---|
10-speed two-speed power shift | |
Transmission details ...  |
Minneapolis-Moline M-604 Power | |
|---|---|
Diesel PTO (claimed) | 64 hp
47.7 kW |
Gas PTO (claimed) | 65 hp
48.5 kW |
LP-gas PTO (claimed) | 66 hp
49.2 kW |
Mechanical | |
|---|---|
Four-wheel drive | |
Power steering | |
Open operator station |
Tractor hitch | |
|---|---|
Rear Type | II |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 84.5 inches
214 cm |
Weight | 7220 to 7420 pounds |
Front tire | 9.50-24 |
Rear tire | 18.4-34 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
M6 published in 1963, by Minneapolis-Moline | |
M6 published in 1964, by Minneapolis-Moline | |
Buyer's Guide published in 1964, by Minneapolis-Moline |
Engine
Engine options | |
|---|---|
Minneapolis-Moline 5.5L 4-cyl gasoline | |
Minneapolis-Moline 5.5L 4-cyl diesel | |
Minneapolis-Moline 5.5L 4-cyl LP gas |
Engine Detail — 336 ci / 5.5 L Gasoline
Manufacturer | Minneapolis-Moline 336-4 |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 336 ci
5.5 L |
Bore/Stroke | 4.625x5.00 inches
117 x 127 mm |
Air cleaner | oil bath |
Rated RPM | 1500 |
Engine Detail — 336 ci / 5.5 L Diesel
Manufacturer | Minneapolis-Moline |
Fuel Type | Diesel |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 336 ci
5.5 L |
Bore/Stroke | 4.625x5.00 inches
117 x 127 mm |
Air cleaner | oil bath |
Rated RPM | 1500 |
Engine Detail — 336 ci / 5.5 L LP Gas
Manufacturer | Minneapolis-Moline |
Fuel Type | LP gas |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 336 ci
5.5 L |
Bore/Stroke | 4.625x5.00 inches
117 x 127 mm |
Air cleaner | oil bath |
Rated RPM | 1500 |
Transmission

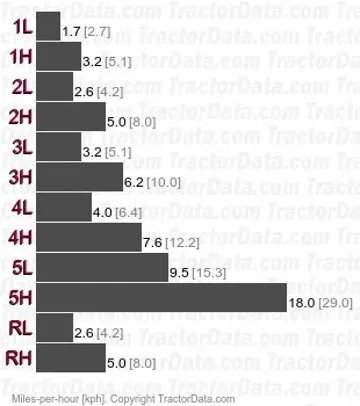

Transmission — Ampli-Torc
Transmission | Ampli-Torc |
Type | two-speed power shift |
Gears | 10 forward and 2 reverse |
With 18.4-34 rear tires. | |
 | |
Dimensions
Minneapolis-Moline M-604 Tires | |
|---|---|
Ag front | 9.50-24 |
Ag rear | 18.4-34 |
Dimensions | |
|---|---|
Wheelbase | 84.5 inches
214 cm |
Length | 140 inches
355 cm |
Width | 84 inches
213 cm |
Height (steering wheel) | 72 inches
182 cm |
Clearance (front axle) | 10.5 inches
26 cm |
Clearance (rear axle) | 26 inches
66 cm |
Clearance (drawbar) | 15 inches
38 cm |
Front tread | 68 to 82 inches
172 to 208 cm |
Rear tread | 67 inches
170 cm |
Minneapolis-Moline M-604 Weight | |
|---|---|
Gas Operating | 7220 lbs
3274 kg |
Diesel Operating | 7370 lbs
3343 kg |
LP-gas Operating | 7420 lbs
3365 kg |
Photos

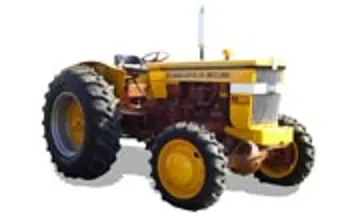

Minneapolis-Moline M-604
Minneapolis-Moline M-604
Minneapolis-Moline M-604
Minneapolis-Moline M-604
Minneapolis-Moline M-604 operator station and controls.
