Minneapolis-Moline V
The Minneapolis-Moline V is a tractor produced by Minneapolis Moline. It is equipped with a 64.9 ci 1.1 L engine. Transmission: 3 forward and 1 reverse. Operating weight: 1710 lbs 775 kg.
Fuel & Capacities
7 gal
26.5 L
Transmission
3 forward and 1 reverse
Operating Weight
1710 lbs
775 kg
Overview
 | 1951 - 1952
Utility tractor |
|---|
Production | |
|---|---|
Manufacturer | Minneapolis-Moline |
Utility tractor | |
Minneapolis-Moline V Engine | |
|---|---|
Hercules 1.1L 4-cyl gasoline | |
Fuel tank | 7 gal
26.5 L |
Engine details ...  | |
Minneapolis-Moline V Transmission | |
|---|---|
3-speed unsynchronized gear | |
Transmission details ...  |
Minneapolis-Moline V Power | |
|---|---|
Plows | 1 |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Open operator station. | |
Power Take-off (PTO) | |
|---|---|
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 74 inches
187 cm |
Weight | 1710 lbs
775 kg |
Front tire | 4.00x15 |
Rear tire | 8x24 |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 6 inches
15 cm |
Width | 5.5 inches
13 cm |
RPM | 1990 |
Speed | 3100 ft/min
944.88 meters/min |
References | |
|---|---|
 | |
Model V All Purpose Tractors published by Minneapolis-Moline | |
Sales Manual published in 1952, by Minneapolis-Moline |
Engine
Engine Detail — 64.9 ci / 1.1 L Gasoline
Manufacturer | Hercules ZXB-3 |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid thermosiphon-cooled |
Displacement | 64.9 ci
1.1 L |
Bore/Stroke | 2.625x3.00 inches
67 x 76 mm |
Air cleaner | oil bath |
Rated RPM | 1800 |
Starter type | manual |
electric OptOptional | |
Oil capacity | 3 qts
2.8 L |
Coolant capacity | 6 qts
5.7 L |
Transmission
Transmission — 3 forward and 1 reverse unsynchronized gear
Type | unsynchronized gear |
Gears | 3 forward and 1 reverse |
Oil capacity | 3 qts
2.8 L |
Dimensions
Minneapolis-Moline V Tires | |
|---|---|
Ag front | 4.00x15 |
Ag rear | 8x24 |
9x24 | |
Dimensions | |
|---|---|
Wheelbase | 74 inches
187 cm |
Length | 105 inches
266 cm |
Width | 51 inches
129 cm |
Height (steering wheel) | 61.25 inches
155 cm |
Height (hood) | 51.5 inches
130 cm |
Shipping weight | 1710 lbs
775 kg |
Ground clearance | 23 inches
58 cm |
Photos

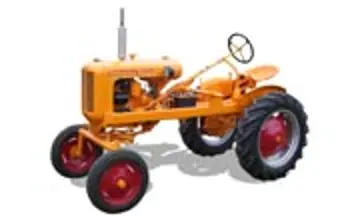

Minneapolis-Moline V
Minneapolis-Moline V
Minneapolis-Moline V
Minneapolis-Moline V
Minneapolis-Moline V operator station and controls.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Minneapolis Moline Minneapolis-Moline V.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Minneapolis Moline Minneapolis-Moline V Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Minneapolis Moline Minneapolis-Moline V.
Converted Equivalents:
Horsepower (HP)0 hp
Kilowatts (kW)0 kW
Metric Horsepower (PS / CV)0 PS
