Minneapolis-Moline ZAS

The Minneapolis-Moline ZAS is a tractor produced by Minneapolis Moline. It is equipped with a 206 ci 3.4 L engine. Transmission: 5 forward and 1 reverse. Operating weight: 3,750 lbs 1701 kg.

Fuel & Capacities
19 gal 71.9 L
Transmission
5 forward and 1 reverse
Operating Weight
3,750 lbs 1701 kg

Overview

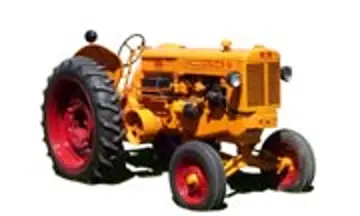

Minneapolis-Moline ZAS tractor photo
1949 - 1953 Standard-tread tractor
Production
Manufacturer
Minneapolis-Moline
Standard-tread tractor
Built in Minneapolis, Minnesota, USA
Variants
ZAU
tricycle front
ZAS
standard front
ZAN
single front wheel
ZAE
adjustable wide front
ZASI
industrial
Minneapolis-Moline ZAS Engine
Minneapolis-Moline 3.4L 4-cyl gasoline
Fuel tank
19 gal 71.9 L
Engine details ...
Minneapolis-Moline ZAS Transmission
5-speed unsynchronized gear
Transmission details ...
Minneapolis-Moline ZAS Power
Plows
2-3 (14-inch)
Mechanical
Two-wheel drive
Final drives
bull gear
Manual steering
Mechanical drum brakes
Open operator station.
Power Take-off (PTO)
Rear PTO Type
540
Dimensions & Tires
Weight
3,750 lbs 1701 kg
Front tire
5.50x16
Rear tire
11x38
Full dimensions and tires ...
Belt Pulley
Diameter
15.125 inches 38 cm
Width
7 inches 17 cm
RPM
786
Speed
3,100 ft/min 944.88 meters/min
Electrical
Ground
wheelbase
Charging system
generator
Battery volts
6
References
ZAS references literature
Sales Manual published in 1952, by Minneapolis-Moline
The New "Z" Tractors published in 1949, by Minneapolis-Moline

Engine

Engine Detail — 206 ci / 3.4 L Gasoline

Manufacturer
Minneapolis-Moline 206B-4
Fuel Type
Gasoline
Configuration
4-cylinder, liquid-cooled
Displacement
206 ci 3.4 L
Bore/Stroke
3.625x5.00 inches 92 x 127 mm
Fuel system
carburetor
Air cleaner
oil bath
Compression
6.19:1
Rated RPM
1500
Firing order
1-3-4-2
Starter volts
6
Oil capacity
7 qts 6.6 L
Coolant capacity
15 qts 14.2 L

Transmission

Transmission — 5 forward and 1 reverse unsynchronized gear

Type
unsynchronized gear
Gears
5 forward and 1 reverse
Clutch
dry disc

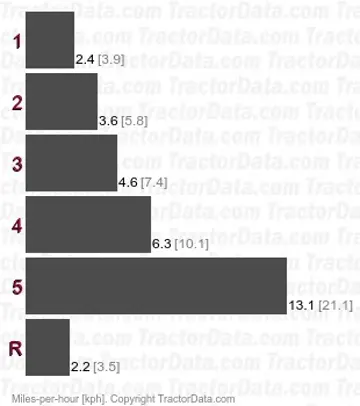

ZAS unsynchronized gear speeds

Dimensions

Minneapolis-Moline ZAS Tires
Ag front
5.50x16
Ag rear
11x38
Dimensions
Length
123.2 inches 312 cm
Height (steering wheel)
69 inches 175 cm
Shipping weight
3,750 lbs 1701 kg
Ground clearance
12.25 inches 31 cm
Front tread
48 inches 121 cm
Rear tread
54 to 59 inches 137 to 149 cm

Photos

Minneapolis-Moline ZAS.

Minneapolis-Moline ZAS.

Minneapolis-Moline ZAS.

Minneapolis-Moline ZAS.

Minneapolis-Moline ZAS.

Minneapolis-Moline ZAS.

Minneapolis-Moline ZAS.

Minneapolis-Moline ZAS.

Minneapolis-Moline ZAS.

Minneapolis-Moline ZAS.

Minneapolis-Moline ZAS.

Minneapolis-Moline ZAS.

Minneapolis-Moline ZAS operator station and controls.

Minneapolis-Moline ZAS operator station and controls.
