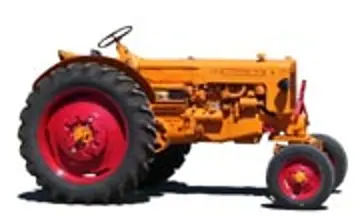

Minneapolis-Moline ZB
The Minneapolis-Moline ZB is a tractor produced by Minneapolis Moline. It is equipped with a 206 ci 3.4 L engine. Transmission: 5 forward and 1 reverse. Operating weight: 3750 to 3900 pounds.
Fuel & Capacities
Gasoline
Transmission
5 forward and 1 reverse
Operating Weight
3750 to 3900 pounds
Overview
 | 1953 - 1955
Row-Crop tractor |
|---|
Production | |
|---|---|
Manufacturer | Minneapolis-Moline |
Row-Crop tractor | |
Built in Minneapolis, Minnesota, USA | |
Variants | |
|---|---|
ZBU | tricycle front |
ZBN | single front wheel |
ZBE | adjustable wide front |
Minneapolis-Moline ZB Engine | |
|---|---|
Minneapolis-Moline 3.4L 4-cyl gasoline | |
Engine details ...  |
Minneapolis-Moline ZB Transmission | |
|---|---|
5-speed unsynchronized gear | |
Transmission details ...  |
Minneapolis-Moline ZB Power | |
|---|---|
Plows | 3 (14-inch) |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual worm-and-sector |
Mechanical disc brakes | |
Open operator station. | |
Power Take-off (PTO) | |
|---|---|
Rear PTO | transmission |
Rear PTO Type | 540 |
Dimensions & Tires | |
|---|---|
Wheelbase | 82 inches
208 cm |
ZBE Wheelbase | 92.1 inches
233 cm |
Weight | 3750 to 3900 pounds |
Front tire | 5.50x16 |
Rear tire | 11x38 |
Full dimensions and tires ...  | |
Belt Pulley | |
|---|---|
Diameter | 15.1 inches
38 cm |
Width | 7 inches
17 cm |
RPM | 786 |
Speed | 3,110 ft/min
947.93 meters/min |
Electrical | |
|---|---|
Ground | positive |
Charging system | generator |
References | |
|---|---|
 | |
Sales Manual published in 1952, by Minneapolis-Moline |
Engine
Engine Detail — 206 ci / 3.4 L Gasoline
Manufacturer | Minneapolis-Moline 206B-4 |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 206 ci
3.4 L |
Bore/Stroke | 3.625x5.00 inches
92 x 127 mm |
Rated RPM | 1500 |
Starter volts | 12 |
Transmission

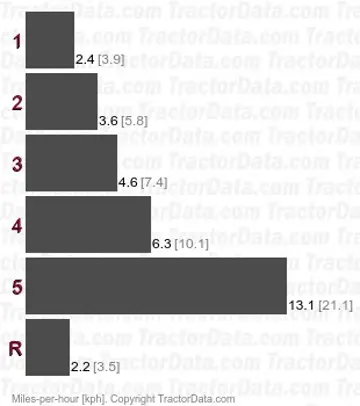

Transmission — 5 forward and 1 reverse unsynchronized gear
Type | unsynchronized gear |
Gears | 5 forward and 1 reverse |
Clutch | dry disc |
 | |
Dimensions
Minneapolis-Moline ZB Tires | |
|---|---|
Ag front | 5.50x16 |
7.50x10 (ZBN) | |
Ag rear | 11x38 |
Dimensions | |
|---|---|
Wheelbase | 82 inches
208 cm |
ZBE Wheelbase | 92.1 inches
233 cm |
ZBN Length | 124.7 inches
316 cm |
ZBU Length | 126.2 inches
320 cm |
ZBE Length | 134.4 inches
341 cm |
Height | 74 inches
187 cm |
ZBU Shipping weight | 3750 lbs
1701 kg |
ZBE Shipping weight | 3900 lbs
1769 kg |
ZBE Front tread | 56 to 84 inches
142 to 213 cm |
Rear tread | 54 to 88 inches
137 to 223 cm |
Photos
Minneapolis-Moline ZBE
Minneapolis-Moline ZBE
Minneapolis-Moline ZBE
Minneapolis-Moline ZBU
