Minneapolis-Moline ZTS
The Minneapolis-Moline ZTS is a tractor produced by Minneapolis Moline. It is equipped with a 185.8 ci 3.0 L engine. Transmission: 5 forward and 1 reverse.
Fuel & Capacities
Gasoline
Transmission
5 forward and 1 reverse
Overview
 | 1937 - 1947
ZT SeriesStandard-tread tractor
ZT Series
Standard-tread tractor |
|---|
Production | |
|---|---|
Manufacturer | Minneapolis-Moline |
Standard-tread tractor | |
Built in Minneapolis, Minnesota, USA | |
Variants | |
|---|---|
ZTU | row-crop |
ZTS | standard front |
ZTI | industrial |
Minneapolis-Moline ZTS Engine | |
|---|---|
Minneapolis-Moline 3.0L 4-cyl gasoline | |
Engine details ...  |
Minneapolis-Moline ZTS Transmission | |
|---|---|
5-speed unsynchronized gear | |
Transmission details ...  |
Minneapolis-Moline ZTS Power | |
|---|---|
Drawbar (claimed) | 16 hp
11.9 kW |
PTO (claimed) | 25 hp
18.6 kW |
Mechanical | |
|---|---|
Two-wheel drive | |
Steering | manual |
Drum brakes | |
Open operator station. | |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
References | |
|---|---|
 | |
The Universal Z Tractor published in 1941, by Minneapolis-Moline |
Engine
Engine Detail — 185.8 ci / 3.0 L Gasoline
Manufacturer | Minneapolis-Moline RE |
Fuel Type | Gasoline |
Configuration | 4-cylinder, liquid-cooled |
Displacement | 185.8 ci
3.0 L |
Bore/Stroke | 3.625x4.50 inches
92 x 114 mm |
Compression | 5.75:1 |
Rated RPM | 1500 |
Firing order | 1-3-4-2 |
Transmission
Transmission — 5 forward and 1 reverse unsynchronized gear
Type | unsynchronized gear |
Gears | 5 forward and 1 reverse |
Clutch | dry disc |
Dimensions
Minneapolis-Moline ZTS Tires |
|---|
Dimensions |
|---|
Photos

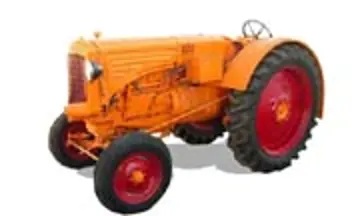

Minneapolis-Moline ZTS with Farmhand loader.
Minneapolis-Moline ZTS with Farmhand loader.
