MTD 360
The MTD 360 is a tractor produced by Mtd Lawn Tractors. The listed engine power is Gasoline (gross): 4 hp / 3.0 kW. Transmission: 1 forward and reverse. Operating weight: 220 lbs 99 kg.
Engine Power
Gasoline (gross): 4 hp / 3.0 kW
Fuel & Capacities
Gasoline
Transmission
1 forward and reverse
Operating Weight
220 lbs
99 kg
Overview
 | 1964 - 1982
Model year 1964-19711972-1982
Riding lawn mower |
|---|
Production | |
|---|---|
Manufacturer | MTD |
Riding lawn mower | |
MTD 360 Engine | |
|---|---|
4HP Briggs & Stratton 1-cyl gasoline | |
Engine details ...  |
MTD 360 Transmission | |
|---|---|
1-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 220 lbs
99 kg |
Front tire | 10.25-3.25 |
Rear tire | 12.50-3.50 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
MTD Parts Microfiche (770-9101) published in 1974 | |
The Action Line for '68 published in 1968, by MTD |
Engine
Engine Detail — Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Power (gross) | 4 hp
3.0 kW |
Starter type | manual recoil |
Transmission
Transmission — 1 forward and reverse gear
Type | gear |
Gears | 1 forward and reverse |
Dimensions
MTD 360 Tires | |
|---|---|
Lawn/turf front | 10.25-3.25 |
Lawn/turf rear | 12.50-3.50 |
Dimensions | |
|---|---|
Length | 45.5 inches
115 cm |
Height (steering wheel) | 29 inches
73 cm |
Shipping weight | 220 lbs
99 kg |
Attachments
25" Mower deck | |
|---|---|
Type | mid-mount MTD |
Cutting width | 25 inches
63 cm |
Cut height | 1.75 to 3.25 inch
4 to 8 cm |
Photos

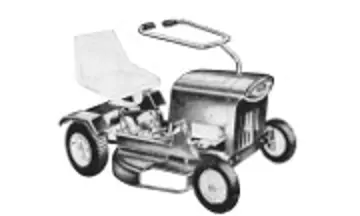

MTD 360 tractor photo
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Mtd Lawn Tractors MTD 360.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Mtd Lawn Tractors MTD 360 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Mtd Lawn Tractors MTD 360.
Converted Equivalents:
Horsepower (HP)4 hp
Kilowatts (kW)3 kW
Metric Horsepower (PS / CV)4.1 PS
