MTD 992
The MTD 992 is a tractor produced by Mtd Lawn Tractors. It is equipped with a 568 cc 34.7 ci engine. The listed engine power is Gasoline (listed): 20 hp / 14.9 kW. Transmission: Eaton.
Engine Power
Gasoline (listed): 20 hp / 14.9 kW
Fuel & Capacities
Gasoline
Transmission
Eaton
Overview
 | 1995 - 1999
900 SeriesGarden tractor
900 Series
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | MTD |
Garden tractor | |
MTD 992 Engine | |
|---|---|
20HP Briggs & Stratton 568cc 2-cyl gasoline | |
Engine details ...  |
MTD 992 Transmission | |
|---|---|
hydrostatic | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Tractor hitch | |
|---|---|
Rear Type | 0 OptOptional |
Power Take-off (PTO) | |
|---|---|
Mid PTO | independent |
Clutch | manual |
Dimensions & Tires | |
|---|---|
Full dimensions and tires ...  |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
Engine
Engine Detail — 568 cc / 34.7 ci Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 2-cylinder, air-cooled horizontal-shaft V-Twin |
Displacement | 568 cc
34.7 ci |
Bore/Stroke | 2.83x2.76 inches
72 x 70 mm |
Power | 20 hp
14.9 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — Eaton
Transmission | Eaton |
Type | shaft-driven hydrostatic |
Gears | infinite forward and reverse (2-range) |
 | |
Dimensions
MTD 992 Tires |
|---|
Dimensions |
|---|
Attachments
Attachment overview | |
|---|---|
50" mid-mount mower deck | |
60" mid-mount mower deck | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
Photos

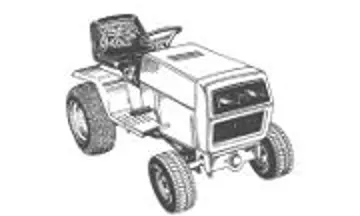

MTD 992 tractor photo
Recommended Implements & Sizing Guide
Engineering recommendations for Mtd Lawn Tractors MTD 992 based on its 20 HP power envelope and ASAE agricultural standards.
| Implement & Operation | Recommended Size | Workload Rating | Engineering Notes |
|---|---|---|---|
Moldboard PlowPrimary Tillage | 1 to 2 Bottom (12")1 - 2 铧 (30 cm) | Light Duty | Ideal for garden plots and light sandy soil. |
Rotary Cutter / MowerMowing & Clearing | 4 ft (48 in)1.2 m | Light Duty | Pasture clipping and light brush under 1" diameter. |
Rotary TillerSeedbed Prep | 42 to 48 in105 - 120 cm | Light Duty | Covers compact tractor tire width. |
Disc HarrowSecondary Tillage | 5 to 6 ft (16-18" discs)1.5 - 1.8 m (40-45 cm 耙片) | Light Duty | Small acreage soil break-up and secondary aeration. |
Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Mtd Lawn Tractors MTD 992.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Mtd Lawn Tractors MTD 992 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Mtd Lawn Tractors MTD 992.
Converted Equivalents:
Horsepower (HP)20 hp
Kilowatts (kW)14.9 kW
Metric Horsepower (PS / CV)20.3 PS
Direct Competitor Comparison
Compare MTD 992 against same-era industry alternatives in the same horsepower class.
Current Model
Mtd Lawn Tractors
MTD 992
Engine Power:Gasoline (listed): 20 hp / 14.9 kW
★ Baseline Reference
International HarvesterMarket Competitor
International Harvester 184 Lo-Boy
Engine Power:18
Production Years:1977 - 1980
