MTD 470

The MTD 470 is a tractor produced by Mtd Lawn Tractors. It is equipped with a 318 cc 19.44 ci engine. The listed engine power is Gasoline (gross): 7 hp / 5.2 kW; Gasoline (gross): 7 hp / 5.2 kW. Transmission: Peerless 501. Operating weight: 452 lbs 205 kg.

Overview

	1969 - 1974 Lawn tractor

Production
Manufacturer	MTD
Lawn tractor

Mechanical
Two-wheel drive
Manual steering
Mechanical band brakes
Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual
Mid PTO Type	pulley

Dimensions & Tires
Weight	452 lbs 205 kg
Front tire	12.5x4.50-6
Rear tire	16.00x6.50
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Riding Mower and Tractor Attachments published in 1971, by MTD
The Leading Line '70 published in 1970, by MTD
Top Flite for '74 published in 1974, by MTD
Operating/Service Instructions 132-460, 132-465, 132-470, 132-475 (770-3546) published in 1972
Operating Instructions 139-470 (770-1892) published in 1969
MTD Parts Microfiche (770-9101) published in 1974

Engine

Engine options
7HP Briggs & Stratton 275cc 1-cyl gasoline
7HP Briggs & Stratton 318cc 1-cyl gasoline

Engine Detail — 275 cc / 16.79 ci Gasoline

Manufacturer	Briggs & Stratton 170701
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	275 cc 16.79 ci
Bore/Stroke	3.00x2.375 inches 76 x 60 mm
Power (gross)	7 hp 5.2 kW
Starter	electric
Starter volts	12

Engine Detail — 318 cc / 19.44 ci Gasoline

Manufacturer	Briggs & Stratton 190000
Fuel Type	Gasoline
Configuration	1-cylinder, air-cooled vertical-shaft
Displacement	318 cc 19.44 ci
Bore/Stroke	3.00x2.75 inches 76 x 70 mm
Power (gross)	7 hp 5.2 kW
Starter	electric
Starter volts	12

Transmission

Transmission options
3-speed gear
4-speed gear

Transmission — Peerless 351

Transmission	Peerless 351
Type	belt-driven gear
Gears	3 forward and 1 reverse
Original transmission, used through 1971.

Transmission — Peerless 501

Transmission	Peerless 501
Type	belt-driven gear
Gears	4 forward and 1 reverse
The four-speed transmission was used beginning in 1972.

Dimensions

MTD 470 Tires
Lawn/turf front	12.5x4.50-6
Lawn/turf rear	16.00x6.50

Dimensions
Weight	452 lbs 205 kg

Attachments

Attachment overview
30" mid-mount mower deck
34" mid-mount mower deck
Snowblower
Blade

Photos

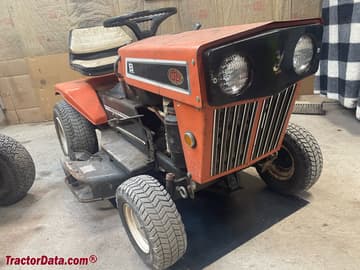

MTD 139-470 lawn tractor.
