MTD 650
The MTD 650 is a tractor produced by Mtd Lawn Tractors. The listed engine power is Gasoline (gross): 7 hp / 5.2 kW. Transmission: 3 forward and 1 reverse. Operating weight: 320 lbs 145 kg.
Engine Power
Gasoline (gross): 7 hp / 5.2 kW
Fuel & Capacities
Gasoline
Transmission
3 forward and 1 reverse
Operating Weight
320 lbs
145 kg
Overview
 | 1967 - 1968
Garden tractor |
|---|
Production | |
|---|---|
Manufacturer | MTD |
Garden tractor | |
Variants | |
|---|---|
650 | recoil start |
652 | 110V electric start |
655 | 18" tires |
660 | 12V electric start |
665 | 12V 18" tires |
MTD 650 Engine | |
|---|---|
7HP Briggs & Stratton 1-cyl gasoline | |
Engine details ...  |
MTD 650 Transmission | |
|---|---|
3-speed gear | |
Transmission details ...  |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 320 lbs
145 kg |
Front tire | 12.50x4.50 |
Rear tire | 16.00x6.50 |
Full dimensions and tires ...  | |
References | |
|---|---|
 | |
Lawn Flite Garden Tractor Model No. 147-650 published in 1967, by MTD | |
Garden Tractor Models 147-650, 147-652, 147-655, 147-660 and 147-665 (770-904A) published in 1967 | |
Garden Tractor Models 148-650, 148-655, 148-660 and 148-665 (770-1331) published in 1968 | |
MTD Parts Microfiche (770-9101) published in 1974 | |
The Action Line for '68 published in 1968, by MTD |
Engine
Engine Detail — Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled horizontal-shaft |
Power (gross) | 7 hp
5.2 kW |
Starter type | manual recoil |
electric *Optional. Plug-in 110V starter. | |
Oil change | 25 h |
Transmission
Transmission — 3 forward and 1 reverse belt-driven gear
Type | belt-driven gear |
Gears | 3 forward and 1 reverse |
 | |
Dimensions
MTD 650 Tires | |
|---|---|
Lawn/turf front | 12.50x4.50 |
Lawn/turf rear | 16.00x6.50 |
18.00x9.50 | |
Dimensions | |
|---|---|
Length | 54 inches
137 cm |
Width | 29 inches
73 cm |
Height | 32 inches
81 cm |
Weight | 320 lbs
145 kg |
Attachments
Attachment overview | |
|---|---|
32" mid-mount mower deck | |
Blade | |
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments. |
32" Mower deck | |
|---|---|
Type | mid-mount MTD 651 |
2-blade with manual lift | |
Cutting width | 32 inches
81 cm |
Overall width | 34 inches
86 cm |
Photos

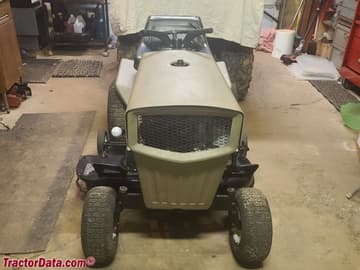

1968 MTD 655 garden tractor.
1968 MTD 655 garden tractor.
1968 MTD 655 garden tractor.
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Mtd Lawn Tractors MTD 650.
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Mtd Lawn Tractors MTD 650 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Mtd Lawn Tractors MTD 650.
Converted Equivalents:
Horsepower (HP)7 hp
Kilowatts (kW)5.2 kW
Metric Horsepower (PS / CV)7.1 PS
