Murray 38211

The Murray 38211 is a tractor produced by Murray Lawn Tractors. It is equipped with a 656 cc 40.03 ci engine. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: Peerless 801. Operating weight: 585 lbs 265 kg.

Engine Power
Gasoline (gross): 14 hp / 10.4 kW
Fuel & Capacities
3 gal 11.4 L
Transmission
Peerless 801
Operating Weight
585 lbs 265 kg

Overview

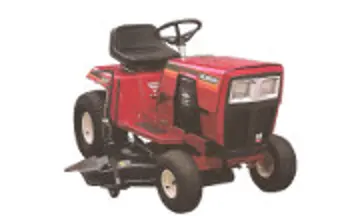

Murray 38211 tractor photo
1987 - 1989 Garden tractor
Production
Manufacturer
Murray
Garden tractor
Murray 38211 Engine
14HP Briggs & Stratton 656cc 2-cyl gasoline
Fuel tank
3 gal 11.4 L
Engine details ...
Murray 38211 Transmission
5-speed gear
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Disc brakes
Open operator station.
Tractor hitch
Type
sleeve hitch OptOptional
Power Take-off (PTO)
Mid PTO
independent
Clutch
manual
Dimensions & Tires
Weight
585 lbs 265 kg
Front tire
15.00x6.00
Rear tire
20.00x10.00
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Battery volts
12
References
38211 references literature
Power Mowers published in 1986, by Murray
Murray Mowers '88 published in 1988

Engine

Engine Detail — 656 cc / 40.03 ci Gasoline

Manufacturer
Briggs & Stratton 400707
Fuel Type
Gasoline
Configuration
2-cylinder, air-cooled vertical-shaft opposed-twin
Displacement
656 cc 40.03 ci
Bore/Stroke
2.97x2.89 inches 75 x 73 mm
Power (gross)
14 hp 10.4 kW
Starter
electric
Starter volts
12

Transmission

Transmission — Peerless 801

Transmission
Peerless 801
Type
belt-driven gear
Gears
5 forward and 1 reverse

Dimensions

Murray 38211 Tires
Lawn/turf front
15.00x6.00
Lawn/turf rear
20.00x10.00
Dimensions
Shipping weight
585 lbs 265 kg

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Blade
Garden tractors are capable of using tillers, plows, or other ground-engaging attachments. TractorData does not list details of these attachments.
42" Mower deck
Type
mid-mount Murray
3-blade with manual lift
Cutting width
42 inches 106 cm

Photos

Murray 38211 tractor photo

Murray 38211 tractor photo

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Murray Lawn Tractors Murray 38211.

Estimated Continuous Field Runtime: 4.1 hrs

Approximately 4.1 hours of continuous field operation at ~75% rated power on a full tank (3 gal / 11.4 L).

Estimated 75% Load Fuel Burn~0.7 gal/hr (2.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Murray Lawn Tractors Murray 38211 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Murray Lawn Tractors Murray 38211.

Converted Equivalents:

Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
