Murray 42201
The Murray 42201 is a tractor produced by Murray Lawn Tractors. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: infinite forward and reverse. Operating weight: 532 lbs 241 kg.
Engine Power
Gasoline (gross): 14 hp / 10.4 kW
Fuel & Capacities
3 gal
11.4 L
Transmission
infinite forward and reverse
Operating Weight
532 lbs
241 kg
Overview
![]() | 1994
Lawn tractor |
|---|
Production | |
|---|---|
Manufacturer | Murray |
Lawn tractor | |
Murray 42201 Engine | |
|---|---|
14HP Briggs & Stratton 1-cyl gasoline | |
Fuel tank | 3 gal
11.4 L |
Engine details ... | |
Murray 42201 Transmission | |
|---|---|
hydrostatic | |
Transmission details ... |
Mechanical | |
|---|---|
Two-wheel drive | |
Manual steering | |
Open operator station. |
Dimensions & Tires | |
|---|---|
Weight | 532 lbs
241 kg |
Front tire | 15.00x6.00 |
Rear tire | 20.00x10.00 |
Full dimensions and tires ... | |
Electrical | |
|---|---|
Ground | negative |
Battery volts | 12 |
References | |
|---|---|
![]() | |
1994 Mowers published by Murray |
Engine
Engine Detail — Gasoline
Manufacturer | Briggs & Stratton |
Fuel Type | Gasoline |
Configuration | 1-cylinder, air-cooled vertical-shaft |
Power (gross) | 14 hp
10.4 kW |
Starter | electric |
Starter volts | 12 |
Transmission
Transmission — infinite forward and reverse belt-driven hydrostatic
Type | belt-driven hydrostatic |
Gears | infinite forward and reverse |
Dimensions
Murray 42201 Tires | |
|---|---|
Lawn/turf front | 15.00x6.00 |
Lawn/turf rear | 20.00x10.00 |
Dimensions | |
|---|---|
Shipping weight | 532 lbs
241 kg |
Attachments
Attachment overview | |
|---|---|
42" mid-mount mower deck | |
Snowblower | |
Blade |
42" Mower deck | |
|---|---|
Type | mid-mount Murray |
manual lift | |
Cutting width | 42 inches
106 cm |

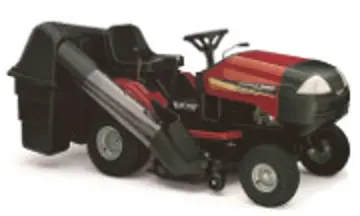

Photos
Fluids, Capacities & Working Autonomy
Standard fluid requirements, service intervals, and continuous runtime estimates for Murray Lawn Tractors Murray 42201.
Estimated Continuous Field Runtime: 4.1 hrs
Approximately 4.1 hours of continuous field operation at ~75% rated power on a full tank (3 gal / 11.4 L).
Estimated 75% Load Fuel Burn~0.7 gal/hr (2.8 L/hr)
Engine Crankcase Oil
SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours
Transmission & Hydraulic System
UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours
Engine Cooling System
50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours
Murray Lawn Tractors Murray 42201 Specification Unit Converter
Convert power, fluid capacities, and operating weights between metric and imperial standards for Murray Lawn Tractors Murray 42201.
Converted Equivalents:
Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
