Murray 42900

The Murray 42900 is a tractor produced by Murray Lawn Tractors. The listed engine power is Gasoline (gross): 14 hp / 10.4 kW. Transmission: infinite forward and reverse. Operating weight: 488 lbs 221 kg.

Engine Power
Gasoline (gross): 14 hp / 10.4 kW
Fuel & Capacities
2 gal 7.6 L
Transmission
infinite forward and reverse
Operating Weight
488 lbs 221 kg

Overview

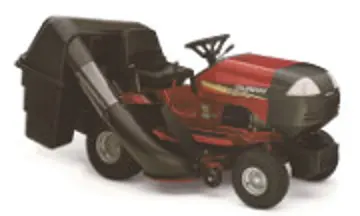

Murray 42900 tractor photo
1994 Lawn tractor
Production
Manufacturer
Murray
Lawn tractor
Murray 42900 Engine
14HP Briggs & Stratton 1-cyl gasoline
Fuel tank
2 gal 7.6 L
Engine details ...
Murray 42900 Transmission
hydrostatic
Transmission details ...
Mechanical
Two-wheel drive
Manual steering
Open operator station.
Dimensions & Tires
Weight
488 lbs 221 kg
Front tire
15.00x6.00
Rear tire
20.00x8.00
Full dimensions and tires ...
Electrical
Ground
negative
Battery volts
12
References
42900 references literature
1994 Mowers published by Murray

Engine

Engine Detail — Gasoline

Manufacturer
Briggs & Stratton
Fuel Type
Gasoline
Configuration
1-cylinder, air-cooled vertical-shaft
Power (gross)
14 hp 10.4 kW
Starter
electric
Starter volts
12

Transmission

Transmission — infinite forward and reverse belt-driven hydrostatic

Type
belt-driven hydrostatic
Gears
infinite forward and reverse

Dimensions

Murray 42900 Tires
Lawn/turf front
15.00x6.00
Lawn/turf rear
20.00x8.00
Dimensions
Shipping weight
488 lbs 221 kg

Attachments

Attachment overview
42" mid-mount mower deck
Snowblower
Blade
42" Mower deck
Type
mid-mount Murray
manual lift
Cutting width
42 inches 106 cm

Photos

Murray 42900 tractor photo

Murray 42900 tractor photo

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for Murray Lawn Tractors Murray 42900.

Estimated Continuous Field Runtime: 2.7 hrs

Approximately 2.7 hours of continuous field operation at ~75% rated power on a full tank (2 gal / 7.6 L).

Estimated 75% Load Fuel Burn~0.7 gal/hr (2.8 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)
Standard Spec: API CK-4 / CJ-4 Heavy Duty
Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)
Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)
Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix
Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze
Service Interval: 2 Years / 1500 Hours

Murray Lawn Tractors Murray 42900 Specification Unit Converter

Convert power, fluid capacities, and operating weights between metric and imperial standards for Murray Lawn Tractors Murray 42900.

Converted Equivalents:

Horsepower (HP)14 hp
Kilowatts (kW)10.4 kW
Metric Horsepower (PS / CV)14.2 PS
