New Holland 1620

The New Holland 1620 is a tractor produced by New Holland. It is equipped with a 81.2 ci 1.3 L engine. The rated power output is 26 hp 19.4 kW. Transmission: infinite forward and reverse. Operating weight: 2233 to 2352 pounds.

Overview

	1996 - 1997 Twenty Compact SeriesCompact Utility tractorShibaura built
1996 - 1997
Twenty Compact Series
Compact Utility tractor
Shibaura built

1996 - 1997
Twenty Compact Series
Compact Utility tractor
Shibaura built

Series map: 15201620172023.0hp27.3hp27.7hp1620↓ 1992-1995

Note: the New Holland model 1620 is the same as the Ford 1620. The following data is from the 1620 listing.

Production
Distributor	New Holland
Manufacturer	Shibaura
Compact Utility tractor
Built in Japan
Original price was $17,000 in 1997

New Holland 1620 Engine
Shibaura 1.3L 3-cyl diesel
Fuel tank	7.1 gal 26.9 L
Engine details ...

New Holland 1620 Transmission
hydrostatic
Transmission details ...

New Holland 1620 Power
Engine (gross)	27.3 hp 20.4 kW
Engine (net)	26 hp 19.4 kW
PTO (claimed)	22 hp 16.4 kW

Mechanical
Two- or four-wheel drive
Power steering
Wet disc brakes
Two-post ROPS.

Hydraulics
Type	open center
Pump flow	7.1 gpm 26.9 lpm
Total flow	10 gpm 37.9 lpm
Steering flow	2.9 gpm 11.0 lpm

Tractor hitch
Rear Type	I
Control	draft control OptOptional
Rear lift (at ends)	1934 lbs 877 kg
Rear lift (at 24"/610mm)	1637 lbs 742 kg

Power Take-off (PTO)
Rear PTO	live
Rear PTO Type	540
Mid PTO Type	2000

Dimensions & Tires
Wheelbase	63 inches 160 cm
Weight	2233 to 2352 pounds
Front tire	5.00-15
2WD Rear tire	9.5-24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Compact Diesel Tractors published in 1996, by New Holland

Engine

	1996 - 1997 Twenty Compact SeriesCompact Utility tractorShibaura built
1996 - 1997
Twenty Compact Series
Compact Utility tractor
Shibaura built

1996 - 1997
Twenty Compact Series
Compact Utility tractor
Shibaura built

Series map: 15201620172023.0hp27.3hp27.7hp1620↓ 1992-1995

Note: the New Holland model 1620 is the same as the Ford 1620. The following data is from the 1620 listing.

Engine Detail — 81.2 ci / 1.3 L Diesel

Manufacturer	Shibaura
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	81.2 ci 1.3 L
Bore/Stroke	3.307x3.15 inches 84 x 80 mm
Power (net)	26 hp 19.4 kW
Power (gross)	27.3 hp 20.4 kW
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

	1996 - 1997 Twenty Compact SeriesCompact Utility tractorShibaura built
1996 - 1997
Twenty Compact Series
Compact Utility tractor
Shibaura built

1996 - 1997
Twenty Compact Series
Compact Utility tractor
Shibaura built

Series map: 15201620172023.0hp27.3hp27.7hp1620↓ 1992-1995

Note: the New Holland model 1620 is the same as the Ford 1620. The following data is from the 1620 listing.

Transmission — infinite forward and reverse hydrostatic

Type	hydrostatic
Gears	infinite forward and reverse

Dimensions

	1996 - 1997 Twenty Compact SeriesCompact Utility tractorShibaura built
1996 - 1997
Twenty Compact Series
Compact Utility tractor
Shibaura built

1996 - 1997
Twenty Compact Series
Compact Utility tractor
Shibaura built

Series map: 15201620172023.0hp27.3hp27.7hp1620↓ 1992-1995

Note: the New Holland model 1620 is the same as the Ford 1620. The following data is from the 1620 listing.

New Holland 1620 Tires
2WD Standard tires (ag)	Front: 5.00-15. Rear: 9.5-24
4WD Standard tires (ag)	Front: 6-14. Rear: 9.5-24

Dimensions
Wheelbase	63 inches 160 cm
Length	112.4 inches 285 cm
Width	48.4 inches 122 cm
Height (ROPS)	84.3 inches 214 cm
2WD Shipping weight	2233 lbs 1012 kg
4WD Shipping weight	2352 lbs 1066 kg
2WD Ground clearance	11.6 inches 29 cm
4WD Ground clearance	11.2 inches 28 cm
2WD Front tread	39.2 to 50 inches 99 to 127 cm
4WD Front tread	42.4 inches 107 cm
2WD Rear tread	39.3 to 53 inches 99 to 134 cm
4WD Rear tread	41.1 to 47.1 inches 104 to 119 cm

Attachments

	1996 - 1997 Twenty Compact SeriesCompact Utility tractorShibaura built
1996 - 1997
Twenty Compact Series
Compact Utility tractor
Shibaura built

1996 - 1997
Twenty Compact Series
Compact Utility tractor
Shibaura built

Series map: 15201620172023.0hp27.3hp27.7hp1620↓ 1992-1995

Note: the New Holland model 1620 is the same as the Ford 1620. The following data is from the 1620 listing.

Attachment overview
60" mid-mount mower deck
Snowblower
Blade
Front-end loader
Backhoe

60" Mower deck
Type	mid-mount Ford 914
Cutting width	60 inches 152 cm

Ford 757B Backhoe
Backhoe type	Ford 757B Backhoe
Transport height	71 inches 180 cm
2-Foot flat digging depth	85 inches 215 cm
8-Foot flat digging depth	65 inches 165 cm
Loading height	72.75 inches 184 cm
Bucket Rotation	180°
Bucket force	1925 lbs 873 kg
Dipperstick force	940 lbs 426 kg

Photos

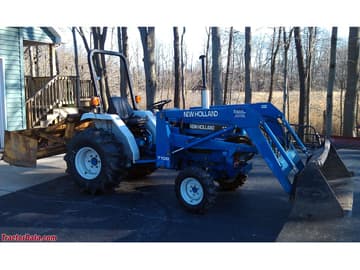

New Holland 1620 with box blade and model 7108 loader.

New Holland with New Holland 716b front-mount snow blower.
