New Holland 1715

The New Holland 1715 is a tractor produced by New Holland. It is equipped with a 81.2 ci 1.3 L engine. The listed engine power is Diesel (net): 26 hp / 19.4 kW; Diesel (gross): 27.3 hp / 20.4 kW. Transmission: 9 forward and 3 reverse. Operating weight: 1929 to 2116 pounds.

Overview

	1996 - 1997 Compact Utility tractor

Series map: 1215171516.0hp27.3hp1715↓ 1992-1997

Note: the New Holland model 1715 is the same as the Ford 1715. The following data is from the 1715 listing.

Production
Manufacturer	New Holland
Compact Utility tractor
Built in Japan
Original price was $11,500 in 1997

New Holland 1715 Engine
Shibaura 1.3L 3-cyl diesel
Fuel tank	7.0 gal 26.5 L
Engine details ...

New Holland 1715 Transmission
9-speed gear
Transmission details ...

New Holland 1715 Power
Engine (gross)	27.3 hp 20.4 kW
Engine (net)	26 hp 19.4 kW
PTO (claimed)	23 hp 17.2 kW

Mechanical
Two- or four-wheel drive
Gear Steering	manual
Hydro Steering	power
Wet disc brakes
Two-post fixed ROPS.

Hydraulics
Type	open center
Pump flow	6.1 gpm 23.1 lpm
Steering flow	2.9 gpm 11.0 lpm

Tractor hitch
Rear Type	I
Rear lift (at ends)	1924 lbs 872 kg
Rear lift (at 24"/610mm)	1637 lbs 742 kg

Power Take-off (PTO)
Rear PTO	transmission
Rear PTO Type	540
Mid PTO	optional
Mid PTO Type	2000

Dimensions & Tires
Wheelbase	63 inches 160 cm
Weight	1929 to 2116 pounds
Front tire	4.00x15
2WD Rear tire	9.5x24
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

References
Compact Diesel Tractors published in 1996, by New Holland

Engine

Series map: 1215171516.0hp27.3hp1715↓ 1992-1997

Note: the New Holland model 1715 is the same as the Ford 1715. The following data is from the 1715 listing.

Engine Detail — 81.2 ci / 1.3 L Diesel

Manufacturer	Shibaura
Fuel Type	Diesel
Configuration	3-cylinder, liquid-cooled
Displacement	81.2 ci 1.3 L
Bore/Stroke	3.307x3.15 inches 84 x 80 mm
Power (net)	26 hp 19.4 kW
Power (gross)	27.3 hp 20.4 kW
Rated RPM	2600
Starter	electric
Starter volts	12

Transmission

Series map: 1215171516.0hp27.3hp1715↓ 1992-1997

Note: the New Holland model 1715 is the same as the Ford 1715. The following data is from the 1715 listing.

Transmission — 9 forward and 3 reverse gear

Type	gear
Gears	9 forward and 3 reverse
Three gears, plus reverse, in three ranges.

Dimensions

Series map: 1215171516.0hp27.3hp1715↓ 1992-1997

Note: the New Holland model 1715 is the same as the Ford 1715. The following data is from the 1715 listing.

New Holland 1715 Tires
2WD Standard tires (ag)	Front: 4.00x15. Rear: 9.5x24
4WD Standard tires (ag)	Front: 6x14. Rear: 9.5x24

Dimensions
Wheelbase	63 inches 160 cm
Length	112.4 inches 285 cm
Width	51.3 inches 130 cm
Height (ROPS)	84.4 inches 214 cm
2WD Shipping weight	1929 lbs 874 kg
4WD Shipping weight	2116 lbs 959 kg
2WD Ground clearance	11.6 inches 29 cm
4WD Ground clearance	11.2 inches 28 cm
2WD Front tread	40.2 to 42.2 inches 102 to 107 cm
4WD Front tread	42.4 inches 107 cm
2WD Rear tread	42.2 to 48.2 inches 107 to 122 cm
4WD Rear tread	41.1 to 47.1 inches 104 to 119 cm

Attachments

Series map: 1215171516.0hp27.3hp1715↓ 1992-1997

Note: the New Holland model 1715 is the same as the Ford 1715. The following data is from the 1715 listing.

Attachment overview
60" mid-mount mower deck
72" mid-mount mower deck
Snowblower
Blade
Front-end loader
Backhoe

Ford 757B Backhoe
Backhoe type	Ford 757B Backhoe
Transport height	71 inches 180 cm
2-Foot flat digging depth	85 inches 215 cm
8-Foot flat digging depth	65 inches 165 cm
Loading height	72.75 inches 184 cm
Bucket Rotation	180°
Bucket force	1925 lbs 873 kg
Dipperstick force	940 lbs 426 kg

Photos

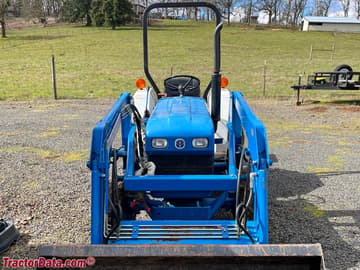

New Holland 1715

New Holland 1715
