New Holland 6810S

The New Holland 6810S is a tractor produced by New Holland. It is equipped with a 304 ci 5.0 L engine. The listed engine power is Diesel (listed): 95 hp / 70.8 kW. Transmission: 8 forward and 2 reverse.

Engine Power

Diesel (listed): 95 hp / 70.8 kW

Transmission

8 forward and 2 reverse

Overview

	1994 - 2003 Utility tractor

Production
Manufacturer	New Holland
Utility tractor
Built in Queretaro, Mexico

New Holland 6810S Engine
Ford 5.0L 4-cyl diesel
Engine details ...

New Holland 6810S Transmission
8-speed
Transmission details ...

New Holland 6810S Power
Engine	95 hp 70.8 kW
PTO (claimed)	83 hp 61.9 kW

Mechanical
Two- or four-wheel drive
Open operator station.

Tractor hitch
Rear Type	II
Rear lift	5686 lbs 2579 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540

Dimensions & Tires
Full dimensions and tires ...

Electrical
Ground	negative
Battery volts	12

Engine

Engine Detail — 304 ci / 5.0 L Diesel

Manufacturer	Ford
Configuration	turbocharged diesel, 4-cylinder, liquid-cooled
Displacement	304 ci 5.0 L
Bore/Stroke	4.4x5.0 inches 112 x 127 mm
Power	95 hp 70.8 kW
Starter	electric
Starter volts	12

Transmission

Transmission — 8 forward and 2 reverse

Gears

8 forward and 2 reverse

Dimensions

New Holland 6810S Tires

Dimensions

Photos

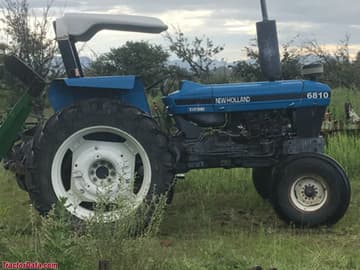

New Holland 6810S

Recommended Implements & Sizing Guide

Engineering recommendations for New Holland 6810S based on its 95 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	4 to 5 Bottom (16-18")4 - 5 铧 (40-45 cm)	Heavy Duty	Heavy primary tillage; semi-mounted hitch recommended.
Rotary Cutter / MowerMowing & Clearing	10 to 12 ft Flex-Wing3.0 - 3.6 m 折叠双翼	Heavy Duty	Wide swath pasture and crop residue shredding.
Rotary TillerSeedbed Prep	78 to 84 in200 - 215 cm	Heavy Duty	Heavy commercial tiller with multi-speed gearbox.
Disc HarrowSecondary Tillage	10 to 14 ft Tandem / Offset3.0 - 4.2 m 重型交错耙	Heavy Duty	Aggressive residue cutting in corn/cotton stubble.
Hay BalerHay & Forage	5x6 Round Baler or 3x3 Mid Square1.5x1.8 m 大圆捆或中型方捆机	Heavy Duty	High density baling; requires minimum 85 PTO HP.

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for New Holland 6810S.

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
