New Holland 7635
The New Holland 7635 is a tractor produced by New Holland. It is equipped with a 238 ci 3.9 L engine. The rated power output is 95 hp 70.8 kW. Transmission: Dual Command. Operating weight: 6834 to 7936 pounds.
Engine Power
95 hp
70.8 kW
Fuel & Capacities
29 gal
109.8 L
Transmission
Dual Command
Operating Weight
6834 to 7936 pounds
New Holland 7635 Serial Number & Year Decoder
Find the exact manufacture year of your tractor by checking your chassis serial number below.
Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.
Overview
 | 1996 - 1999
35 SeriesUtility tractor |
|---|---|
1996 - 1999 | |
35 Series | |
Utility tractor | |
Production | |
|---|---|
Manufacturer | New Holland |
Utility tractor | |
Built in Italy | |
Original price was $36,400 in 1999 | |
New Holland 7635 Engine | |
|---|---|
Iveco 3.9L 4-cyl diesel | |
Fuel tank | 29 gal
109.8 L |
Engine details ...  | |
New Holland 7635 Transmission | |
|---|---|
24-speed partial power shift | |
Transmission details ...  |
New Holland 7635 Power | |
|---|---|
Engine | 95 hp
70.8 kW |
PTO (claimed) | 86 hp
64.1 kW |
Mechanical | |
|---|---|
Two- or four-wheel drive | |
Power steering | |
Hydraulic wet disc brakes | |
Two-post foldable ROPS. Cab optional with air-conditioning. |
Hydraulics | |
|---|---|
Type | open center |
Valves | 2 to 3 |
Pump flow | 14.5 gpm
54.9 lpm |
Tractor hitch | |
|---|---|
Rear Type | II |
Control | mechanical lower link draft sensing |
Rear lift (at 24"/610mm) | 6430 lbs
2916 kg |
Power Take-off (PTO) | |
|---|---|
Rear PTO | independent |
Clutch | electro-hydraulic wet disc |
Rear PTO Type | 540/1000 |
Dimensions & Tires | |
|---|---|
2WD Wheelbase | 92.2 inches
234 cm |
4WD Wheelbase | 91.1 inches
231 cm |
Weight | 6834 to 7936 pounds |
Front tire | 7.50-16 |
Rear tire | 13.6-38 |
Full dimensions and tires ...  | |
Electrical | |
|---|---|
Ground | negative |
Charging system | alternator |
ROPS Charging amps | 45 |
Cab Charging amps | 65 |
Battery volts | 12 |
References | |
|---|---|
 | |
56 to 86 PTO hp Tractors published in 1996, by New Holland | |
35 Series Tractors published in 1996, by New Holland | |
North American Buyer's Guide published in 1997, by New Holland |
Engine
Engine Detail — 238 ci / 3.9 L Diesel
Manufacturer | Iveco 8045.25 |
Configuration | turbocharged diesel, 4-cylinder 8-valve, liquid-cooled |
Displacement | 238 ci
3.9 L |
Bore/Stroke | 4.094x4.527 inches
104 x 115 mm |
Power | 95 hp
70.8 kW |
Pre-heating | Thermostart |
Rated RPM | 2500 |
Starter volts | 12 |
Oil capacity | 12.4 qts
11.7 L |
ROPS Coolant capacity | 14.8 qts
14.0 L |
Cab Coolant capacity | 16.9 qts
16.0 L |
Transmission
Transmission — Dual Command
Transmission | Dual Command |
Type | partial power shift |
Gears | 24 forward and 12 reverse |
Four gears in three ranges with two-speed power shift and left-hand reverser. The Dual Command provides push-button shifting to lower gear at each speed. | |
Dimensions
New Holland 7635 Tires | |
|---|---|
Ag front | 7.50-16 |
Ag rear | 13.6-38 |
Dimensions | |
|---|---|
2WD Wheelbase | 92.2 inches
234 cm |
4WD Wheelbase | 91.1 inches
231 cm |
Width | 72.6 inches
184 cm |
Front tread | 56 to 84 inches
142 to 213 cm |
Rear tread | 60 to 84 inches
152 to 213 cm |
New Holland 7635 Weight | |
|---|---|
2WD ROPS Shipping | 6834 lbs
3099 kg |
2WD cab Shipping | 7480 lbs
3392 kg |
4WD ROPS Shipping | 7496 lbs
3400 kg |
4WD Cab Shipping | 7936 lbs
3599 kg |
New Holland 7635 Height | |
|---|---|
ROPS | 105.5 inches
267 cm |
84 inches (folded)
213 cm | |
Cab | 97.5 inches
247 cm |
Photos

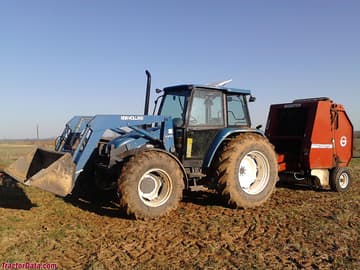

New Holland 7635 with model 7310 front-end loader.
