New Holland 7740

1996 - 1997

PowerStar 40 Series

Row-Crop tractor

Note: the New Holland model 7740 is the same as the Ford 7740. The following data is from the 7740 listing.

Manufacturer

New Holland

Row-Crop tractor

Built in Basildon, England

Original price

$36,000 (1998)

Ford 5.0L 4-cyl diesel

Fuel tank

25 gal 94.6 L

52.7 gal (ROPS optional) 199.5 L

46.9 gal (cab optional) 177.5 L

Engine (gross)

100.3 hp 74.8 kW

Engine (net)

95 hp 70.8 kW

PTO (claimed)

86 hp 64.1 kW

Drawbar (tested)

76.93 hp 57.4 kW

PTO (tested)

86.96 hp 64.8 kW

Drive

4x2 2WD

4x4 MFWD 4WD (optional)

Final drives

inboard planetary

Differential lock

mechanical (S)

electro-hydraulic (SL/SLE)

Power steering

Brakes

mechanical (S)

hydraulic wet disc (SL/SLE)

Two-post foldable ROPS. Straddle-mount (7740 S) or raised deck (SL/SLE). Comfort Command Cab optional with air-conditioning (SL/SLE).

Type

open center (S/SL)

closed center load sensing (SLE)

Valves

1 to 4

Pump flow

17.4 gpm 65.9 lpm

20 gpm (SLE) 75.7 lpm

Steering press.

2100 psi 144.8 bar

Rear Type

II

Control

Position control and top-link draft sensing. Electronic lower-link sensing optional on 7740 SLE.

Rear lift (at 24"/610mm)

6,210 lbs 2816 kg

8,240 lbs (optional) 3737 kg

6,564 lbs (SLE) 2977 kg

8,710 lbs (SLE optional) 3950 kg

Rear PTO

independent

Rear PTO Type

540/1000

Wheelbase

93 inches 236 cm

Weight

7312 to 9194 pounds

Front tire

7.50-16

Rear tire

18.4-30

Ground

negative

Charging system

alternator

ROPS Charging amps

55

Cab Charging amps

100

ROPS Batteries

1

Cab Batteries

2

Battery CCA

800

Battery volts

12

Operator's Manual 5640, 6640, 7740 and 7840 S Range Tractors (42564031) published in 1994

Note: the New Holland model 7740 is the same as the Ford 7740. The following data is from the 7740 listing.

Manufacturer

Ford Genesis

Configuration

turbocharged diesel, 4-cylinder 8-valve, liquid-cooled

The 7740 used a Lucas CAV DP200 fuel pump.

Displacement

304 ci 5.0 L

Bore/Stroke

4.40x5.00 inches 112 x 127 mm

Power (net)

95 hp 70.8 kW

Power (gross)

100.3 hp 74.8 kW

Air cleaner

dual paper elements

Compression

17.5:1

Rated RPM

2100

Idle RPM

725-2275

Torque

413 lb-ft 560.0 Nm

Torque RPM

1200

Firing order

1-3-4-2

Starter volts

12

ROPS Coolant capacity

15.3 qts 14.5 L

Cab Coolant capacity

16.9 qts 16.0 L

Intake valve clearance

0.016 inches (cold) 0.406 mm

Exhaust valve clearance

0.019 inches (cold) 0.483 mm

Oil capacity

12.1 qts 11.5 L

Note: the New Holland model 7740 is the same as the Ford 7740. The following data is from the 7740 listing.

8-speed constant mesh

16-speed two-speed power shift

12-speed synchronized

16-speed four-speed power shift

Transmission

EconoShift

Type

constant mesh

Gears

8 forward and 2 reverse

Clutch

dry disc

Oil capacity

69.6 qts 65.9 L

Four gears (1-4), plus reverse, in two ranges (L/H). Optional creeper provided a third range. Tractor must be stopped and clutch used to shift gears or range. The eight-speed transmission was only used on the 7740S.

With 16.9-34 rear tires.

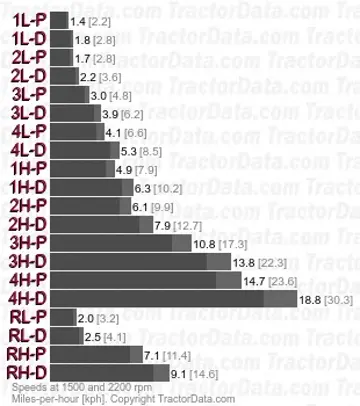

Transmission

Dual Power

Type

two-speed power shift

Gears

16 forward and 4 reverse

Clutch

dry disc

Oil capacity

69.6 qts 65.9 L

Dual Power adds a two-speed power shift between direct drive and the lower Dual Power range to the basic eight-speed transmission. The Dual Power range is engaged by a switch on the dashboard. Dual Power was an option on the 7740S.

With 16.9-34 rear tires.

Transmission

SynchroShift

Type

synchronized

Gears

12 forward and reverse

Clutch

dry disc

Four gears (1-4) in three ranges (L/M/H) with right-hand shuttle lever. Gear shifts are synchronized. Shifts between medium and high ranges are synchronized, but the tractor should be stopped to shift to or from low range. Sychronized shuttle shifting. The 12-speed SynchroShift was standard on the 7740 SL. Dual power was an option with the SynchroShift, turning it into a 24-speed transmission.

With 16.9-38 rear tires.

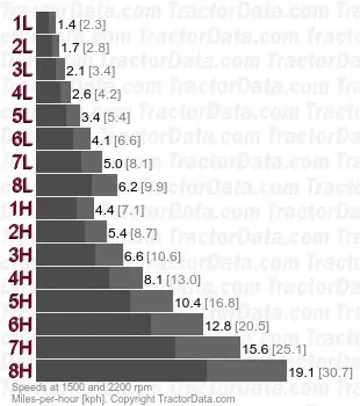

Transmission

ElectroShift/Pulse Command

Type

four-speed power shift

Gears

16 forward and reverse

Oil capacity

64 qts 60.6 L

Four power shift gears arranged in two synchronized ratio groups (1-4 and 5-8). Two synchronized ranges (low/high) and right-hand shuttle. Clutch must be used to shift range or move between the lower (1-4) and higher (5-8) gear ratio groups. Push-button power shifting between the four gears in a ratio group. Push-button de-clutching on the shuttle lever allow shifting without the foot clutch. The 16 power shift was standard on the 7740 SLE.

With 16.9-38 rear tires.

Note: the New Holland model 7740 is the same as the Ford 7740. The following data is from the 7740 listing.

Ag front

7.50-16

Ag rear

18.4-30

Wheelbase

93 inches 236 cm

Length

162 inches 411 cm

2WD Width

77 inches 195 cm

4WD Width

80 inches 203 cm

2WD Clearance (front axle)

22 inches 55 cm

4WD Clearance (front axle)

20 inches 50 cm

2WD ROPS Shipping

7,312 lbs 3316 kg

4WD ROPS Shipping

8,146 lbs 3695 kg

2WD Cab Shipping

8,179 lbs 3709 kg

4WD Cab Shipping

9,194 lbs 4170 kg

Operating

8,680 lbs (4WD ROPS) 3937 kg

Ballasted

11,460 lbs 5198 kg

Hood

67 inches 170 cm

Cab

107 inches 271 cm

Exhaust

112 inches 284 cm

Note: the New Holland model 7740 is the same as the Ford 7740. The following data is from the 7740 listing.

OECD 1658: diesel 16x4 4WD

OECD 1705: diesel 16x16 4WD

Diesel 16x4 4WD May 6 - 13, 1992 Link: OCED Tractor Test 1658 file

PTO performance

Power at rated engine speed

86.86 hp 64.8 kW

Fuel use

5.2 gal/hour 19.7 l/hour

Power at rated PTO speed

87.24 hp 65.1 kW

Fuel use

5.1 gal/hour 19.3 l/hour

Drawbar performance

Max power

76.93 hp 57.4 kW

Fuel use

5.2 gal/hour 19.7 l/hour

Gear 5-Low used for power test.

Max pull

11,352 lbs 5149 kg

Gear 2H used for pull test.

Diesel 16x16 4WD October 9 - 23, 1995 Link: OCED Tractor Test 1705 file

PTO performance

Power at rated engine speed

86.96 hp 64.8 kW

Fuel use

5.4 gal/hour 20.4 l/hour

Power at rated PTO speed

86.41 hp 64.4 kW

Fuel use

5.3 gal/hour 20.1 l/hour

Drawbar performance

Max power

74.15 hp 55.3 kW

Fuel use

5.4 gal/hour 20.4 l/hour

Gear 6-Low used for power test.

Max pull

10,210 lbs 4631 kg

Gear 4L used for pull test.

Note: the New Holland model 7740 is the same as the Ford 7740. The following data is from the 7740 listing.

Ford 7210 loader

Ford 7411 loader
