New Holland 9282

The New Holland 9282 is a tractor produced by New Holland. It is equipped with a 505 ci 8.3 L engine. The rated power output is 260 hp 193.9 kW. Transmission: Quadra-Sync. Operating weight: 17122 to 24805 pounds.

Engine Power
260 hp 193.9 kW
Fuel & Capacities
245 gal (total) 927.3 L
Transmission
Quadra-Sync
Operating Weight
17122 to 24805 pounds

New Holland 9282 Serial Number & Year Decoder

Find the exact manufacture year of your tractor by checking your chassis serial number below.

Where to Find the Serial NumberThe serial number plate is commonly located on the front frame, tractor transmission housing (right side), or instrument panel badge.

Overview

New Holland 9282 tractor photo
1996 - 1999 9082 SeriesFour-wheel Drive (4WD) tractorVersatile built
1996 - 1999
9082 Series
Four-wheel Drive (4WD) tractor
Versatile built
1996 - 1999
9082 Series
Four-wheel Drive (4WD) tractor
Versatile built
Production
Distributor
New Holland
Manufacturer
Versatile
Four-wheel Drive (4WD) tractor
Built in Winnipeg, Manitoba, Canada
The 9282 hydraulics were advertised at 45 gpm, but produced 40 during official testing.
New Holland 9282 Engine
Cummins 8.3L 6-cyl diesel
Engine details ...
New Holland 9282 Transmission
12-speed partially synchronized
Transmission details ...
New Holland 9282 Power
Engine
260 hp 193.9 kW
Drawbar (claimed)
200 hp 149.1 kW
PTO (claimed)
212 hp 158.1 kW
Drawbar (tested)
200.6 hp 149.6 kW
PTO (tested)
233.6 hp 174.2 kW
Performance test details ...
Mechanical
Four-wheel drive
Steering
hydrostatic power
Hydraulic dry disc brakes
Cab standard with air-conditioning.
Capacity
Fuel
245 gal (total) 927.3 L
230 gal (usable) 870.6 L
Hydraulic system
31 gal 117.3 L
33 gal (with 3-point) 124.9 L
Front hubs
8 qts 7.6 L
Front diff.
34.8 qts 32.9 L
Rear hubs
8 qts 7.6 L
Rear diff.
34.8 qts 32.9 L
Hydraulics
Type
closed center load sensing
Capacity
31 gal 117.3 L
33 gal (with 3-point) 124.9 L
Pressure
2250 psi 155.1 bar
Valves
1 to 4
Pump flow
45 gpm 170.3 lpm
SCV flow
30 gpm 113.6 lpm
Steering flow
27 gpm 102.2 lpm
Steering press.
2500 psi 172.4 bar
Tractor hitch
Rear Type
IVN/3 OptOptional
Rear lift (at 24"/610mm)
13000 lbs 5896 kg
Power Take-off (PTO)
Rear PTO
independent OptOptional
Clutch
electro-hydraulic wet disc
Rear PTO Type
1000 (1.75)
Engine RPM
1000@2100
Dimensions & Tires
Wheelbase
133 inches 337 cm
Weight
17122 to 24805 pounds
Front tire
20.8R38
Rear tire
20.8R38
Full dimensions and tires ...
Electrical
Ground
negative
Charging system
alternator
Charging amps
130
Charging volts
12
Batteries
3
Battery CCA
625
Battery volts
12
Battery Group
SAE31
References
9282 references literature
82 Series Versatile 260 to 425 hp 4WD Tractors published in 1995, by New Holland
Operator's Manual Tractors 9282, 9482, 9682 and 9882 (42928241) published in 1996
North American Buyer's Guide published in 1997, by New Holland

Engine

New Holland 9282 tractor photo
1996 - 1999 9082 SeriesFour-wheel Drive (4WD) tractorVersatile built
1996 - 1999
9082 Series
Four-wheel Drive (4WD) tractor
Versatile built
1996 - 1999
9082 Series
Four-wheel Drive (4WD) tractor
Versatile built

Engine Detail — 505 ci / 8.3 L Diesel

Manufacturer
Cummins C8.3
Configuration
turbocharged aftercooled diesel, 6-cylinder, liquid-cooled vertical
Displacement
505 ci 8.3 L
Bore/Stroke
4.488x5.315 inches 114 x 135 mm
Power
260 hp 193.9 kW
Air cleaner
dual paper elements
Compression
16.7:1
Rated RPM
2200
Idle RPM
900-2500
Torque
825 lb-ft 1118.7 Nm
Torque RPM
1500
Firing order
1-5-3-6-2-4
Starter volts
12
Coolant capacity
58 qts 54.9 L
Oil capacity
22.8 qts 21.6 L
Oil change
250 h

Transmission

New Holland 9282 tractor photo
1996 - 1999 9082 SeriesFour-wheel Drive (4WD) tractorVersatile built
1996 - 1999
9082 Series
Four-wheel Drive (4WD) tractor
Versatile built
1996 - 1999
9082 Series
Four-wheel Drive (4WD) tractor
Versatile built

Transmission — Quadra-Sync

Transmission
Quadra-Sync
Type
partially synchronized
Gears
12 forward and 4 reverse
Clutch
11-inch hydraulic wet disc
Four speeds (1-4) in three ranges (L/M/H) plus reverse range. Speed changes are synchronized using the clutch. Tractor must be stopped to shift ranges. Depressing the clutch fully activates a transmission brake, it is recommended to depress it two-thirds when shifting gears.
With 20.8R38 rear tires.

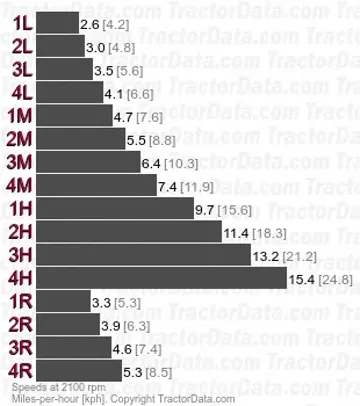

9282 Quadra-Sync partially synchronized speeds

Dimensions

New Holland 9282 tractor photo
1996 - 1999 9082 SeriesFour-wheel Drive (4WD) tractorVersatile built
1996 - 1999
9082 Series
Four-wheel Drive (4WD) tractor
Versatile built
1996 - 1999
9082 Series
Four-wheel Drive (4WD) tractor
Versatile built
New Holland 9282 Tires
Ag front
20.8R38
Ag rear
20.8R38
Dimensions
Wheelbase
133 inches 337 cm
Length
266 inches 675 cm
Width
150.4 inches (20.8R38 duals) 382 cm
Height (cab)
136.9 inches 347 cm
Height (exhaust)
146.5 inches 372 cm
New Holland 9282 Weight
Shipping
17122 lbs 7766 kg
Operating
24805 lbs (20.8R38 duals) 11251 kg
Max capacity
29000 lbs 13154 kg

Tests

New Holland 9282 tractor photo
1996 - 1999 9082 SeriesFour-wheel Drive (4WD) tractorVersatile built
1996 - 1999
9082 Series
Four-wheel Drive (4WD) tractor
Versatile built
1996 - 1999
9082 Series
Four-wheel Drive (4WD) tractor
Versatile built
OCED Tractor Test 1885
Diesel 12-speed 4WD January 1999 - September 1999, Link: OCED Tractor Test 1885 file
PTO performance
Max power
233.6 hp 174.2 kW
Fuel use
14.7 gal/hour 55.6 l/hour
Power at rated engine speed
211.8 hp 157.9 kW
Fuel use
14.6 gal/hour 55.3 l/hour
Power at rated PTO speed
229.0 hp 170.8 kW
Fuel use
15.1 gal/hour 57.2 l/hour
Drawbar performance
Max power
200.6 hp 149.6 kW
Fuel use
14.6 gal/hour 55.3 l/hour
Max pull
25,020 lbs 11349 kg
