New Holland T7.260

The New Holland T7.260 is a tractor produced by New Holland. It is equipped with a 411 ci 6.7 L engine. The rated power output is 215 hp 160.3 kW. Transmission: Power Command Econ. Operating weight: 15322 to 16094 pounds.

Overview

	2011 - 2024 Model year 2011-20132014-2024 T7 SeriesRow-Crop tractor
2011 - 2024
Model year 2011-20132014-2024
T7 Series
Row-Crop tractor

Production
Manufacturer	New Holland (a part of CNH)
Row-Crop tractor
Built in Basildon, England

New Holland T7.260 Engine
FPT 6.7L 6-cyl diesel
Fuel tank	104 gal 393.6 L
Exhaust fluid (DEF)	13 gal 49.2 L
Engine details ...

New Holland T7.260 Power
Engine (gross)	215 hp 160.3 kW
Engine (max)	260 hp 193.9 kW
PTO (claimed)	180 hp 134.2 kW
Drawbar (tested)	171.1 hp 127.6 kW
PTO (tested)	210.4 hp 156.9 kW
Performance test details ...

Mechanical
Four-wheel drive
Steering	hydrostatic power
Brakes	hydraulic wet disc
	engine exhaust brake (optional)
Trailer brakes	hydraulic (optional)
	pneumatic (optional)
Horizon cab standard with air-conditioning. Intellisteer optional

Hydraulics
Type	closed center load sensing
Rear valves	3 to 5
Mid valves	3 (optional)
Pump flow	32 gpm 121.1 lpm
	39.5 gpm (optional) 149.5 lpm
Steering flow	17 gpm 64.3 lpm

Tractor hitch
Rear Type	III/II
Control	electronic draft control
Rear lift (at ends)	12787 lbs 5800 kg
Rear lift (at 24"/610mm)	10746 lbs 4874 kg
Rear Arms	flex link ends
Front Hitch	optional
Front lift (at ends)	8344 lbs 3784 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
	540E/1000
	1000/1000E
Front PTO	independent (optional)
Front PTO Type	1000

Dimensions & Tires
Wheelbase	113.5 inches 288 cm
	117.2 inches (SuperSteer) 297 cm
Weight	15322 to 16094 pounds
Rear tire	20.8R42
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	150
	200 (optional)
Battery CCA	1300
Battery volts	12
Battery AH	176

Engine

Engine Detail — 411 ci / 6.7 L Diesel

Manufacturer	FPT
Configuration	turbocharged intercooled diesel, 6-cylinder 24-valve, liquid-cooled
Displacement	411 ci 6.7 L
Bore/Stroke	4.09x5.20 inches 104 x 132 mm
Emissions	Interim Tier 4
Emission control	selective catalytic reduction (SCR)
Rated Power (gross)	215 hp 160.3 kW
Maximum Power (gross)	260 hp 193.9 kW
Fuel system	high pressure common rail
Cooling system	viscous fan
	reversible fan (optional)
Rated RPM	2200
Torque	995 lb-ft 1349.2 Nm
Torque RPM	1500
Starter	electric
Starter volts	12

Transmission

Transmission options
18-speed full power shift
19-speed full power shift

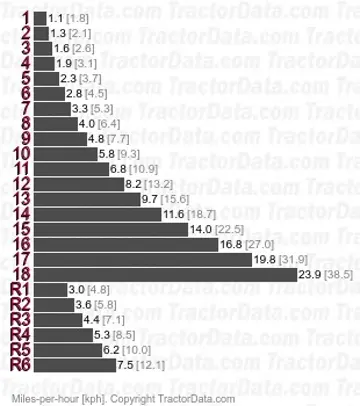

Transmission — Power Command

Transmission	Power Command
Type	full power shift
Gears	18 forward and 6 reverse
Clutch	electro-hydraulic wet disc

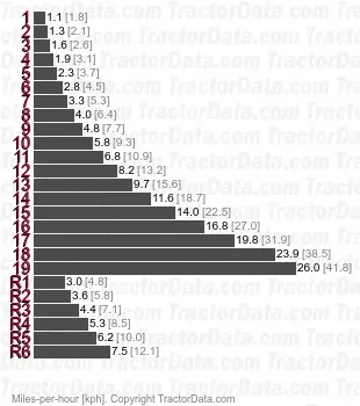

Transmission — Power Command Econ

Transmission	Power Command Econ
Type	full power shift
Gears	19 forward and 6 reverse
Clutch	electro-hydraulic wet disc

Dimensions

New Holland T7.260 Tires
Ag rear	20.8R42

Dimensions
Wheelbase	113.5 inches 288 cm
	117.2 inches (SuperSteer) 297 cm
Length	227.3 inches 577 cm
Width	97.2 inches (min) 246 cm
Height (cab)	119.7 inches 304 cm
Height (exhaust)	122.6 inches 311 cm
Ground clearance	18.6 inches 47 cm
Front axle	4WD
Front axle	TerraLock
Front axle	SuperSteer
Flange rear axle
Bar rear axle	98 inch length 2489 mm
Bar rear axle	112 inch length 2844 mm
Bar rear axle	119 inch length 3022 mm

New Holland T7.260 Weight
Shipping	15322 lbs 6950 kg
	16094 lbs (Terraglide) 7300 kg
	15653 lbs (SuperSteer) 7100 kg
Max capacity	28660 lbs 13000 kg

Tests

OCED Tractor Test 2626
Diesel 19-speed 4WD October 2010 - May 2011, Link: OCED Tractor Test 2626 file
PTO performance
Max power	210.4 hp 156.9 kW
Fuel use	10.6 gal/hour 40.1 l/hour
Power at rated engine speed	191.6 hp 142.9 kW
Fuel use	10.3 gal/hour 39.0 l/hour
Power at rated PTO speed	209.2 hp 156.0 kW
Fuel use	10.8 gal/hour 40.9 l/hour
Drawbar performance
Max power	171.1 hp 127.6 kW
Fuel use	10.5 gal/hour 39.7 l/hour
Gear 10 used for power test.
Max pull	16335 lbs 7409 kg
Gear 8 used for pull test.

Photos

New Holland T7.260 tractor photo
