New Holland T7.210

The New Holland T7.210 is a tractor produced by New Holland. It is equipped with a 411 ci 6.7 L engine. The listed engine power is Diesel (gross): 165 hp / 123.0 kW. Transmission: AutoCommand. Operating weight: 13228 to 13889 pounds.

Engine Power

Diesel (gross): 165 hp / 123.0 kW

Fuel & Capacities

87 gal 329.3 L

Transmission

AutoCommand

Operating Weight

13228 to 13889 pounds

Overview

	2011 - 2024 Model year 2011-20132014-2024 T7 SeriesRow-Crop tractor T7 Series Row-Crop tractor

Production
Manufacturer	New Holland (a part of CNH)
Row-Crop tractor
Built in Basildon, England

New Holland T7.210 Engine
FPT 6.7L 6-cyl diesel
Fuel tank	87 gal 329.3 L
Exhaust fluid (DEF)	13 gal 49.2 L
Engine details ...

New Holland T7.210 Power
Engine (gross)	165 hp 123.0 kW
Engine (max)	212 hp 158.1 kW
PTO (claimed)	140 hp 104.4 kW
Drawbar (tested)	119.2 hp 88.9 kW
PTO (tested)	154.6 hp 115.3 kW
Performance test details ...

Mechanical
Four-wheel drive
Steering	hydrostatic power
Brakes	hydraulic wet disc
	engine exhaust brake (optional)
Trailer brakes	hydraulic (optional)
	pneumatic (optional)
Horizon cab standard with air-conditioning. Intellisteer optional

Hydraulics
Type	closed center load sensing
Rear valves	3 to 5
Mid valves	3 (optional)
Pump flow	29.8 gpm 112.8 lpm
	33 gpm (optional) 124.9 lpm
Steering flow	14.8 gpm 56.0 lpm

Tractor hitch
Rear Type	II
Control	electronic draft control
Rear lift (at ends)	12185 lbs 5527 kg
Rear lift (at 24"/610mm)	11821 lbs 5362 kg
Rear Arms	flex link ends
Front Hitch	optional
Front lift (at ends)	7866 lbs 3568 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
Front PTO	independent (optional)
Front PTO Type	1000

Dimensions & Tires
Wheelbase	107.6 inches 273 cm
	109.8 inches (Terraglide) 278 cm
	113.3 inches (SuperSteer) 287 cm
Weight	13228 to 13889 pounds
Rear tire	18.4R38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	120
	150 (optional)
	200 (optional)
Battery CCA	960
Battery volts	12
Battery AH	132

Engine

Engine Detail — 411 ci / 6.7 L Diesel

Manufacturer	FPT
Configuration	turbocharged intercooled diesel, 6-cylinder 24-valve, liquid-cooled
Displacement	411 ci 6.7 L
Bore/Stroke	4.09x5.20 inches 104 x 132 mm
Emissions	Interim Tier 4
Emission control	selective catalytic reduction (SCR)
Rated Power (gross)	165 hp 123.0 kW
Maximum Power (gross)	212 hp 158.1 kW
Fuel system	high pressure common rail
Cooling system	viscous fan
	reversible fan (optional)
Rated RPM	2200
Torque	565 lb-ft 766.1 Nm
Torque RPM	1500
Starter	electric
Starter volts	12

Transmission

Transmission options
19-speed 6-speed power shift
19-speed full power shift
continuously-variable transmission (CVT)

Transmission — Range Command

Transmission	Range Command
Type	6-speed power shift
Gears	19 forward and 6 reverse
Clutch	hydraulic wet disc
Six speeds (1-6) in three ranges (low, medium, high). Optional ECO 19th gear for road transport.

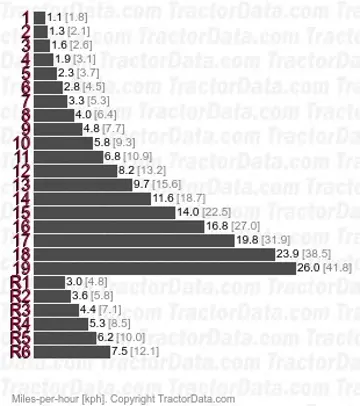

Transmission — Power Command

Transmission	Power Command
Type	full power shift
Gears	19 forward and 6 reverse
Clutch	electro-hydraulic wet disc

Transmission — AutoCommand

Transmission	AutoCommand
Type	continuously-variable transmission (CVT)
Gears	infinite forward and reverse

Dimensions

New Holland T7.210 Tires
Ag rear	18.4R38

Dimensions
Wheelbase	107.6 inches 273 cm
	109.8 inches (Terraglide) 278 cm
	113.3 inches (SuperSteer) 287 cm
Length	211 inches 535 cm
Width	95.8 inches (min) 243 cm
Height (cab)	120 inches 304 cm
Height (exhaust)	118.5 inches 300 cm
Ground clearance	20.8 inches 52 cm
Front axle	4WD
Front axle	TerraLock
Front axle	SuperSteer
Flange rear axle
Bar rear axle	98 inch length 2489 mm
Bar rear axle	112 inch length 2844 mm

New Holland T7.210 Weight
Shipping	13228 lbs 6000 kg
	13889 lbs (Terraglide) 6300 kg
	13845 lbs (SuperSteer) 6280 kg
Max capacity	24251 lbs 11000 kg

Tests

OCED Tractor Test 2654
Diesel CVT 4WD April 2011 - September 2011, Link: OCED Tractor Test 2654 file
PTO performance
Max power	154.6 hp 115.3 kW
Fuel use	8.4 gal/hour 31.8 l/hour
Power at rated engine speed	148.6 hp 110.8 kW
Fuel use	8.5 gal/hour 32.2 l/hour
Power at rated PTO speed	153.8 hp 114.7 kW
Fuel use	8.5 gal/hour 32.2 l/hour
Drawbar performance
Max power	119.2 hp 88.9 kW
Fuel use	8.7 gal/hour 32.9 l/hour
Pull at 9.5 KPH
Max pull	14030 lbs 6364 kg
Pull at 5.0 KPH

Attachments

Attachment overview
New Holland 840TL loader
New Holland 850TL loader

Photos

New Holland T7.210 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for New Holland T7.210 based on its 165 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	5 to 7 Bottom (18")5 - 7 铧 (45 cm)	Commercial / Field Scale	Large acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for New Holland T7.210.

Estimated Continuous Field Runtime: 10.1 hrs

Approximately 10.1 hours of continuous field operation at ~75% rated power on a full tank (87 gal / 329.3 L).

Estimated 75% Load Fuel Burn~8.6 gal/hr (32.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
