New Holland TM135

The New Holland TM135 is a tractor produced by New Holland. It is equipped with a 456 ci 7.5 L engine. The rated power output is 135 hp 100.7 kW. Transmission: Dual Command. Operating weight: 10472 to 13515 pounds.

Overview

	2000 - 2002 TM SeriesRow-Crop tractor
2000 - 2002
TM Series
Row-Crop tractor

Production
Manufacturer	New Holland
Row-Crop tractor
Built in Basildon, England

New Holland TM135 Engine
New Holland 7.5L 6-cyl diesel
Engine details ...

New Holland TM135 Power
Engine	135 hp 100.7 kW
PTO (claimed)	110 hp 82.0 kW
Drawbar (tested)	98.2 hp 73.2 kW
PTO (tested)	118.7 hp 88.5 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
Cab standard.

Capacity
Fuel	58 gal 219.5 L
Hydraulic system	23.75 gal 89.9 L

Hydraulics
Type	closed-center load sensing (CCLS)
Capacity	23.75 gal 89.9 L
Pressure	2750 psi 189.6 bar
Rear valves	4 (max)
Mid valves	4 (max)
Pump flow	28 gpm 106.0 lpm
Steering flow	15.5 gpm 58.7 lpm

Tractor hitch
Rear Type	II
Control	electronic lower-link draft sensing
Rear lift	11690 lbs 5302 kg
Front Hitch	II
Front lift	7208 lbs 3269 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/1000
	540/540E/1000 *Optional. Only available in select markets.
Engine RPM	540@1970
	540E@1546
	1000@2120

Dimensions & Tires
2WD Wheelbase	108.1 inches 274 cm
4WD Wheelbase	107.2 inches 272 cm
SuperSteer Wheelbase	113.4 inches 288 cm
Terraglide Wheelbase	109.6 inches 278 cm
Weight	10472 to 13515 pounds
Front tire	480/70R-28
Rear tire	580/70R-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	120
Batteries	2
Battery CCA	900
Battery volts	12

References
92 to 135 PTO hp Tractors published in 2001, by New Holland
Operator's Manual TM115, TM125, TM135, TM150 and TM160 Tractors (604.53.261.00) published in 1999

Engine

Engine Detail — 456 ci / 7.5 L Diesel

Manufacturer	New Holland
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	456 ci 7.5 L
Bore/Stroke	4.40x5.00 inches 112 x 127 mm
Power	135 hp 100.7 kW
Air cleaner	dual dry element
Compression	17.5:1
Rated RPM	2200
Operating RPM	1500-2200
Firing order	1-5-3-6-2-4
Starter	electric
Starter volts	12
Coolant capacity	26.9 qts 25.5 L
Oil capacity	20 qts 18.9 L

Transmission

Transmission options
18-speed power shift
24-speed two-speed power shift

Transmission — Range Command

Transmission	Range Command
Type	power shift
Gears	18 forward and 6 reverse
Clutch	electro-hydraulic wet disc

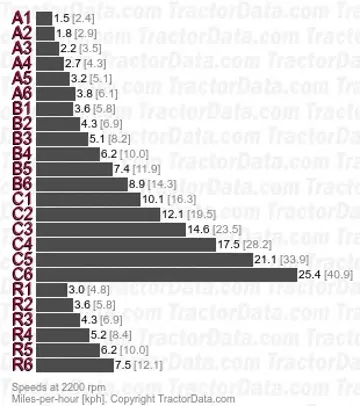

Six power shift gears (1-6) in three ranges (A, B, C) with power shuttle. Push-button control for gear and range shifts. Left-hand shuttle lever.
With 580/70R-38 rear tires.

Transmission — Dual Command

Transmission	Dual Command
Type	two-speed power shift
Gears	24 forward and 12 reverse
Four gears (1-4) in three ranges (A, B, C) with two-speed push-button power shift. Dual Command was available on the two-wheel drive TM135.

Dimensions

New Holland TM135 Tires
Standard tires (ag)	Front: 480/70R-28. Rear: 580/70R-38

Dimensions
2WD Wheelbase	108.1 inches 274 cm
4WD Wheelbase	107.2 inches 272 cm
SuperSteer Wheelbase	113.4 inches 288 cm
Terraglide Wheelbase	109.6 inches 278 cm
2WD Length	180.5 inches 458 cm
4WD Length	185.7 inches 471 cm
Terraglide Length	188.1 inches 477 cm
SuperSteer Length	191.9 inches 487 cm
Width	79.2 inches 201 cm
Clearance (front axle)	16.2 inches 41 cm
Clearance (drawbar)	10.2 inches 25 cm
Front axle	2WD
Front axle	4WD
Front axle	SuperSteer 4WD
Front axle	TerraGlide 4WD inch diameter 0 mm
Flange rear axle
Bar rear axle	98 inch length 2489 mm
Bar rear axle	112 inch length 2844 mm
2WD Front tread	60.8 to 86.1 inches 154 to 218 cm
4WD Front tread	61.1 to 89.3 inches 155 to 226 cm
Rear tread	60.2 to 87.9 inches 152 to 223 cm
Rear tread	59.9 to 90.6 inches 152 to 230 cm (PAVT)
Rear tread	60.9 to 100.5 inches 154 to 255 cm (bar axle)
Rear tread	60.9 to 114.5 inches 154 to 290 cm (long bar)

New Holland TM135 Weight
2WD Shipping	10472 lbs 4750 kg
4WD Shipping	11354 lbs 5150 kg
Operating	13515 lbs 6130 kg

New Holland TM135 Height
Cab	113.4 inches 288 cm
	117.8 inches*Height with cab suspension. 299 cm
Exhaust	118.9 inches 302 cm

Tests

OCED Tractor Test 1919
Diesel 18-speed 4WD March 2000 - June 2000, Link: OCED Tractor Test 1919 file
PTO performance
Max power	118.7 hp 88.5 kW
Fuel use	7.2 gal/hour 27.3 l/hour
Power at rated engine speed	114.9 hp 85.7 kW
Fuel use	7.4 gal/hour 28.0 l/hour
Power at rated PTO speed	118.0 hp 88.0 kW
Fuel use	7.3 gal/hour 27.6 l/hour
Drawbar performance
Max power	98.2 hp 73.2 kW
Fuel use	7.3 gal/hour 27.6 l/hour
Gear 2B used for power test.
Max pull	13375 lbs 6066 kg
Gear 1A used for pull test.
