New Holland T7.235

The New Holland T7.235 is a tractor produced by New Holland. It is equipped with a 411 ci 6.7 L engine. The listed engine power is Diesel (gross): 185 hp / 138.0 kW. Transmission: AutoCommand. Operating weight: 15322 to 16094 pounds.

Engine Power

Diesel (gross): 185 hp / 138.0 kW

Fuel & Capacities

104 gal 393.6 L

Transmission

AutoCommand

Operating Weight

15322 to 16094 pounds

Overview

	2011 - 2013 T7 SeriesRow-Crop tractor T7 Series Row-Crop tractor

Production
Manufacturer	New Holland (a part of CNH)
Row-Crop tractor
Built in Basildon, England

New Holland T7.235 Engine
FPT 6.7L 6-cyl diesel
Fuel tank	104 gal 393.6 L
Exhaust fluid (DEF)	13 gal 49.2 L
Engine details ...

New Holland T7.235 Power
Engine (gross)	185 hp 138.0 kW
Engine (max)	234 hp 174.5 kW
PTO (claimed)	150 hp 111.9 kW
Drawbar (tested)	147.6 hp 110.1 kW
PTO (tested)	187.5 hp 139.8 kW
Performance test details ...

Mechanical
Four-wheel drive
Steering	hydrostatic power
Brakes	hydraulic wet disc
	engine exhaust brake OptOptional
Trailer brakes	hydraulic OptOptional
	pneumatic OptOptional
Horizon cab standard with air-conditioning. Intellisteer optional

Hydraulics
Type	closed center load sensing
Rear valves	3 to 5
Mid valves	3 OptOptional
Pump flow	32 gpm 121.1 lpm
	39.5 gpmOptOptional 149.5 lpm
Steering flow	17 gpm 64.3 lpm

Tractor hitch
Rear Type	III/II
Control	electronic draft control
Rear lift (at ends)	12787 lbs 5800 kg
Rear lift (at 24"/610mm)	10746 lbs 4874 kg
Rear Arms	flex link ends
Front Hitch	optional
Front lift (at ends)	8344 lbs 3784 kg

Power Take-off (PTO)
Rear PTO	independent
Rear PTO Type	540/1000
	540E/1000
	1000/1000E
Front PTO	independent OptOptional
Front PTO Type	1000

Dimensions & Tires
Wheelbase	113.5 inches 288 cm
	117.2 inches (SuperSteer) 297 cm
Weight	15322 to 16094 pounds
Rear tire	20.8R42
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	150
	200 OptOptional
Battery CCA	1300
Battery volts	12
Battery AH	176

Engine

Engine Detail — 411 ci / 6.7 L Diesel

Manufacturer	FPT
Configuration	turbocharged intercooled diesel, 6-cylinder 24-valve, liquid-cooled
Displacement	411 ci 6.7 L
Bore/Stroke	4.09x5.20 inches 104 x 132 mm
Emissions	Interim Tier 4
Emission control	selective catalytic reduction (SCR)
Rated Power (gross)	185 hp 138.0 kW
Maximum Power (gross)	234 hp 174.5 kW
Fuel system	high pressure common rail
Cooling system	viscous fan
	reversible fan OptOptional
Rated RPM	2200
Torque	636 lb-ft 862.4 Nm
Torque RPM	1500
Starter	electric
Starter volts	12

Transmission

Transmission options
18-speed full power shift
19-speed full power shift
continuously-variable transmission (CVT)

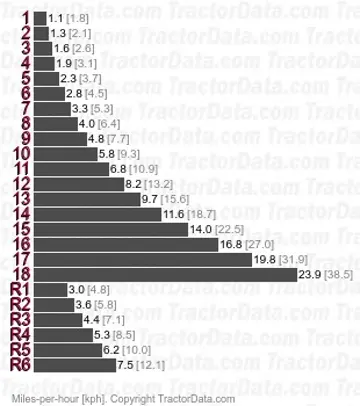

Transmission — Power Command

Transmission	Power Command
Type	full power shift
Gears	18 forward and 6 reverse
Clutch	electro-hydraulic wet disc

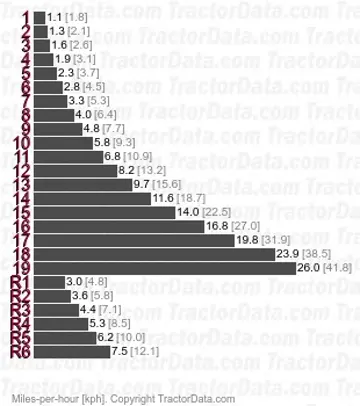

Transmission — Power Command Econ

Transmission	Power Command Econ
Type	full power shift
Gears	19 forward and 6 reverse
Clutch	electro-hydraulic wet disc

Transmission — AutoCommand

Transmission	AutoCommand
Type	continuously-variable transmission (CVT)
Gears	infinite forward and reverse

Dimensions

New Holland T7.235 Tires
Ag rear	20.8R42

Dimensions
Wheelbase	113.5 inches 288 cm
	117.2 inches (SuperSteer) 297 cm
Length	227.3 inches 577 cm
Width	97.2 inches*Minimum width 246 cm
Height (cab)	119.7 inches 304 cm
Height (exhaust)	122.6 inches 311 cm
Ground clearance	18.6 inches 47 cm
Front axle	4WD
Front axle	TerraLock
Front axle	SuperSteer
Flange rear axle
Bar rear axle	98 inch length 2489 mm
Bar rear axle	112 inch length 2844 mm
Bar rear axle	119 inch length 3022 mm

New Holland T7.235 Weight
Shipping	15322 lbs 6950 kg
	16094 lbs (Terraglide) 7300 kg
	15653 lbs (SuperSteer) 7100 kg
Max capacity	28660 lbs 13000 kg

Tests

OCED Tractor Test 2612
Diesel 19-speed 4WD December 2010 - April 2011, Link: OCED Tractor Test 2612 file
PTO performance
Max power	187.5 hp 139.8 kW
Fuel use	9.6 gal/hour 36.3 l/hour
Power at rated engine speed	165.5 hp 123.4 kW
Fuel use	9.2 gal/hour 34.8 l/hour
Power at rated PTO speed	185.1 hp 138.0 kW
Fuel use	9.6 gal/hour 36.3 l/hour
Drawbar performance
Max power	147.6 hp 110.1 kW
Fuel use	9.4 gal/hour 35.6 l/hour
Gear 10 used for power test.
Max pull	16655 lbs 7554 kg
Gear 7 used for pull test.

Attachments

Attachment overview
New Holland 850TL loader
New Holland 860TL loader

Photos

New HOlland T7.235 with front-end loader.

Recommended Implements & Sizing Guide

Engineering recommendations for New Holland T7.235 based on its 185 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	5 to 7 Bottom (18")5 - 7 铧 (45 cm)	Commercial / Field Scale	Large acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for New Holland T7.235.

Estimated Continuous Field Runtime: 10.8 hrs

Approximately 10.8 hours of continuous field operation at ~75% rated power on a full tank (104 gal / 393.7 L).

Estimated 75% Load Fuel Burn~9.6 gal/hr (36.4 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
