New Holland T8050

The New Holland T8050 is a tractor produced by New Holland. It is equipped with a 540 ci 8.9 L engine. The rated power output is 320.5 hp 239.0 kW. Transmission: 23 forward and 6 reverse. Operating weight: 20370 to 24095 pounds.

Overview

	2007 - 2010 T8000 SeriesRow-Crop tractor
2007 - 2010
T8000 Series
Row-Crop tractor

Production
Manufacturer	New Holland
Row-Crop tractor
Built in Racine, Wisconsin, USA

New Holland T8050 Engine
New Holland 8.9L 6-cyl diesel
Fuel tank	180 gal 681.3 L
Engine details ...

New Holland T8050 Power
Engine (gross)	320.5 hp 239.0 kW
Engine (max)	352.7 hp 263.0 kW
PTO (claimed)	270 hp 201.3 kW
Drawbar (tested)	234.70 hp 175.0 kW
PTO (tested)	311.04 hp 231.9 kW
Performance test details ...

Mechanical
Four-wheel drive
Power steering
Hydraulic wet disc brakes
Cab standard with heat and air-conditioning. Optional luxury cab with leather seats, tinted windows, and sunscreens.

Hydraulics
Valves	3 to 5
Total flow	44 gpm 166.5 lpm
	75 gpm (optional MegaFlow) 283.9 lpm

Tractor hitch
Rear Type	IVN/III
Rear lift	18590 lbs 8432 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic
Rear PTO Type	1000 (1.75)
	540/1000 (1.375)OptOptional
Engine RPM	540@1988
	1000@1984

Dimensions & Tires
Wheelbase	129.3 inches 328 cm
Weight	20370 to 24095 pounds
Front tire	16.9R30
Rear tire	20.8R42
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	150
	175 OptOptional
Battery volts	12

Engine

Engine Detail — 540 ci / 8.9 L Diesel

Manufacturer	New Holland
Configuration	intercooled turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	540 ci 8.9 L
Bore/Stroke	4.488x5.689 inches 114 x 145 mm
Rated Power (gross)	320.5 hp 239.0 kW
Maximum Power (gross)	352.7 hp 263.0 kW
Compression	17.6:1
Rated RPM	2200
Starter	electric
Starter volts	12

Transmission

Transmission options

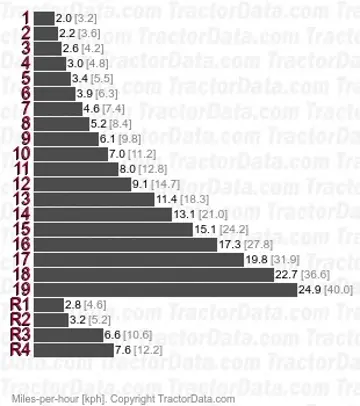

19-speed full power shift
23-speed full power shift

Transmission — 19 forward and 4 reverse full power shift

Type	full power shift
Gears	19 forward and 4 reverse
Clutch	electro-hydraulic wet disc

Transmission — 23 forward and 6 reverse full power shift

Type	full power shift
Gears	23 forward and 6 reverse
Clutch	electro-hydraulic wet disc

Dimensions

New Holland T8050 Tires
Ag front	16.9R30
Ag rear	20.8R42

Dimensions
Wheelbase	129.3 inches 328 cm

New Holland T8050 Weight
Shipping	20,370 lbs 9239 kg
	20,617 lbs (SuperSteer) 9351 kg
	21,170 lbs (TerraGlide) 9602 kg
Operating	24095 lbs 10929 kg
Ballasted	34500 lbs 15649 kg
Max capacity	34500 lbs 15649 kg

Tests

OCED Tractor Test 1937
Diesel 19-speed 4WD September 19 - 29, 2008 Link: OCED Tractor Test 1937 file
PTO performance
Max power	311.04 hp 231.9 kW
Fuel use	18.2 gal/hour 68.9 l/hour
Power at rated engine speed	274.86 hp 205.0 kW
Fuel use	16.9 gal/hour 64.0 l/hour
Power at rated PTO speed	311.04 hp 231.9 kW
Fuel use	18.2 gal/hour 68.9 l/hour
Drawbar performance
Max power	234.70 hp 175.0 kW
Fuel use	16.8 gal/hour 63.6 l/hour
Gear 7 used for power test.
Max pull	24562 lbs 11141 kg
Gear 3 used for pull test.
