New Holland TM165

The New Holland TM165 is a tractor produced by New Holland. It is equipped with a 456 ci 7.5 L engine. The listed engine power is Diesel (listed): 165 hp / 123.0 kW. Transmission: Power Command. Operating weight: 11023 to 14455 pounds.

Engine Power

Diesel (listed): 165 hp / 123.0 kW

Fuel & Capacities

85 gal 321.7 L

Transmission

Power Command

Operating Weight

11023 to 14455 pounds

Overview

	2000 - 2002 TM SeriesRow-Crop tractor TM Series Row-Crop tractor

Production
Manufacturer	New Holland
Row-Crop tractor
Built in Basildon, England

New Holland TM165 Engine
New Holland 7.5L 6-cyl diesel
Engine details ...

New Holland TM165 Power
Engine	165 hp 123.0 kW
PTO (claimed)	135 hp 100.7 kW
Drawbar (tested)	125.0 hp 93.2 kW
PTO (tested)	148.3 hp 110.6 kW
Performance test details ...

Mechanical
Two- or four-wheel drive
Power steering
Hydraulic wet disc brakes
Cab standard.

Capacity
Fuel	85 gal 321.7 L
Hydraulic system	26.5 gal 100.3 L

Hydraulics
Type	closed-center load sensing (CCLS)
Capacity	26.5 gal 100.3 L
Pressure	2750 psi 189.6 bar
Rear valves	4 (max)
Mid valves	4 (max)
Pump flow	28 gpm 106.0 lpm
Steering flow	16.4 gpm 62.1 lpm

Tractor hitch
Rear Type	III/II
Control	electronic lower-link draft sensing
Rear lift	11690 lbs 5302 kg
Front Hitch	II
Front lift	7208 lbs 3269 kg

Power Take-off (PTO)
Rear PTO	independent
Clutch	electro-hydraulic wet disc
Rear PTO Type	540/1000
	540/540E/1000 *Optional. Only available in select markets.
Engine RPM	540@1970
	540E@1546
	1000@2120

Dimensions & Tires
2WD Wheelbase	108.1 inches 274 cm
4WD Wheelbase	107.2 inches 272 cm
SuperSteer Wheelbase	113.4 inches 288 cm
Terraglide Wheelbase	109.6 inches 278 cm
Weight	11023 to 14455 pounds
Front tire	480/70R-28
Rear tire	580/70R-38
Full dimensions and tires ...

Electrical
Ground	negative
Charging system	alternator
Charging amps	120
Batteries	2
Battery CCA	900
Battery volts	12

References

92 to 135 PTO hp Tractors published in 2001, by New Holland
Operator's Manual TM115, TM125, TM135, TM150 and TM160 Tractors (604.53.261.00) published in 1999

Engine

Engine Detail — 456 ci / 7.5 L Diesel

Manufacturer	New Holland
Configuration	turbocharged diesel, 6-cylinder, liquid-cooled
Displacement	456 ci 7.5 L
Bore/Stroke	4.40x5.00 inches 112 x 127 mm
Power	165 hp 123.0 kW
Air cleaner	dual dry element
Compression	17.5:1
Rated RPM	2300
Operating RPM	1500-2200
Firing order	1-5-3-6-2-4
Starter	electric
Starter volts	12
Coolant capacity	27.5 qts 26.0 L
Oil capacity	20 qts 18.9 L

Transmission

Transmission options
18-speed power shift
18-speed full power shift

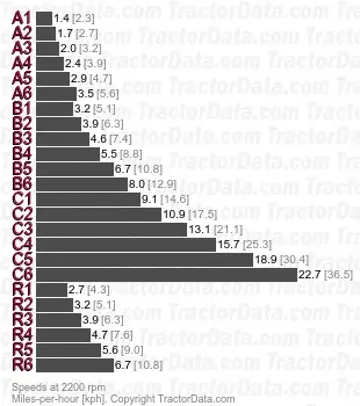

Transmission — Range Command

Transmission	Range Command
Type	power shift
Gears	18 forward and 6 reverse
Clutch	electro-hydraulic wet disc
Six power shift gears (1-6) in three ranges (A, B, C) with power shuttle. Push-button control for gear and range shifts. Left-hand shuttle lever.
With 580/70R-38 rear tires.

Transmission — Power Command

Transmission	Power Command
Type	full power shift
Gears	18 forward and 6 reverse
Clutch	electro-hydraulic wet disc
Power Command adds automatic, programmable, shifting to the six-gear, three-range transmission.

Dimensions

New Holland TM165 Tires
Standard tires (ag)	Front: 480/70R-28. Rear: 580/70R-38

Dimensions
2WD Wheelbase	108.1 inches 274 cm
4WD Wheelbase	107.2 inches 272 cm
SuperSteer Wheelbase	113.4 inches 288 cm
Terraglide Wheelbase	109.6 inches 278 cm
2WD Length	180.5 inches 458 cm
4WD Length	185.7 inches 471 cm
Terraglide Length	188.1 inches 477 cm
SuperSteer Length	191.9 inches 487 cm
Width	79.2 inches 201 cm
Clearance (front axle)	16.2 inches 41 cm
Clearance (drawbar)	10.2 inches 25 cm
Front axle	2WD
Front axle	4WD
Front axle	SuperSteer 4WD
Front axle	TerraGlide 4WD inch diameter 0 mm
Flange rear axle
Bar rear axle	98 inch length 2489 mm
Bar rear axle	112 inch length 2844 mm
2WD Front tread	60.8 to 86.1 inches 154 to 218 cm
4WD Front tread	61.1 to 89.3 inches 155 to 226 cm
Rear tread	60.2 to 87.9 inches 152 to 223 cm
Rear tread	59.9 to 90.6 inches 152 to 230 cm (PAVT)
Rear tread	60.9 to 100.5 inches 154 to 255 cm (bar axle)
Rear tread	60.9 to 114.5 inches 154 to 290 cm (long bar)

New Holland TM165 Weight
2WD Shipping	11023 lbs 5000 kg
4WD Shipping	12125 lbs 5499 kg
Operating	14455 lbs 6556 kg

New Holland TM165 Height
Cab	113.4 inches 288 cm
	117.8 inches*Height with cab suspension. 299 cm
Exhaust	118.9 inches 302 cm

Tests

OCED Tractor Test 1909
Diesel 18-speed 4WD February 2000 - April 2000, Link: OCED Tractor Test 1909 file
PTO performance
Max power	148.3 hp 110.6 kW
Fuel use	9.2 gal/hour 34.8 l/hour
Power at rated engine speed	143.5 hp 107.0 kW
Fuel use	9.3 gal/hour 35.2 l/hour
Power at rated PTO speed	147.8 hp 110.2 kW
Fuel use	0.1 gal/hour 0.4 l/hour
Drawbar performance
Max power	125.0 hp 93.2 kW
Fuel use	9.4 gal/hour 35.6 l/hour
Gear 3B used for power test.
Max pull	14615 lbs 6629 kg
Gear 1A used for pull test.

Photos

New Holland TM165 tractor photo

Recommended Implements & Sizing Guide

Engineering recommendations for New Holland TM165 based on its 165 HP power envelope and ASAE agricultural standards.

Implement & Operation	Recommended Size	Workload Rating	Engineering Notes
Moldboard PlowPrimary Tillage	5 to 7 Bottom (18")5 - 7 铧 (45 cm)	Commercial / Field Scale	Large acreage tillage; requires front ballast weights.
Rotary Cutter / MowerMowing & Clearing	15 to 20 ft Batwing4.6 - 6.1 m 宽幅折叠翼	Commercial / Field Scale	Large commercial field and roadside mowing operations.
Rotary TillerSeedbed Prep	90 to 120 in Heavy Duty230 - 300 cm 重型旋耕机	Commercial / Field Scale	Deep intensive seedbed preparation for commercial row crops.
Disc HarrowSecondary Tillage	15 to 22 ft Folding Disc4.5 - 6.7 m 折叠式圆盘耙	Commercial / Field Scale	Wide commercial field leveling; requires hydraulic remotes.
Hay BalerHay & Forage	Large Square Baler (3x4 or 4x4)大方捆商用打捆机 (1.2x1.2 m)	Commercial / Field Scale	High-capacity commercial forage harvesting (1000 RPM PTO).

Sizing & Soil Condition NoteActual implement sizing varies depending on local soil conditions (heavy clay vs sandy loam), field slope, and operating speed. Heavy tillage implements may require front ballast weights and wheel weights.

Fluids, Capacities & Working Autonomy

Standard fluid requirements, service intervals, and continuous runtime estimates for New Holland TM165.

Estimated Continuous Field Runtime: 9.9 hrs

Approximately 9.9 hours of continuous field operation at ~75% rated power on a full tank (85 gal / 321.8 L).

Estimated 75% Load Fuel Burn~8.6 gal/hr (32.5 L/hr)

Engine Crankcase Oil

SAE 15W-40 (Heavy Duty Diesel)

Standard Spec: API CK-4 / CJ-4 Heavy Duty

Service Interval: 150 – 250 Hours

Transmission & Hydraulic System

UTTO (Universal Tractor Transmission Oil)

Standard Spec: ISO VG 46 / 68 (Wet Brake & Trans Compatible)

Service Interval: 600 – 1000 Hours

Engine Cooling System

50/50 Ethylene Glycol Pre-mix

Standard Spec: ASTM D6210 / Heavy-Duty OAT Antifreeze

Service Interval: 2 Years / 1500 Hours
